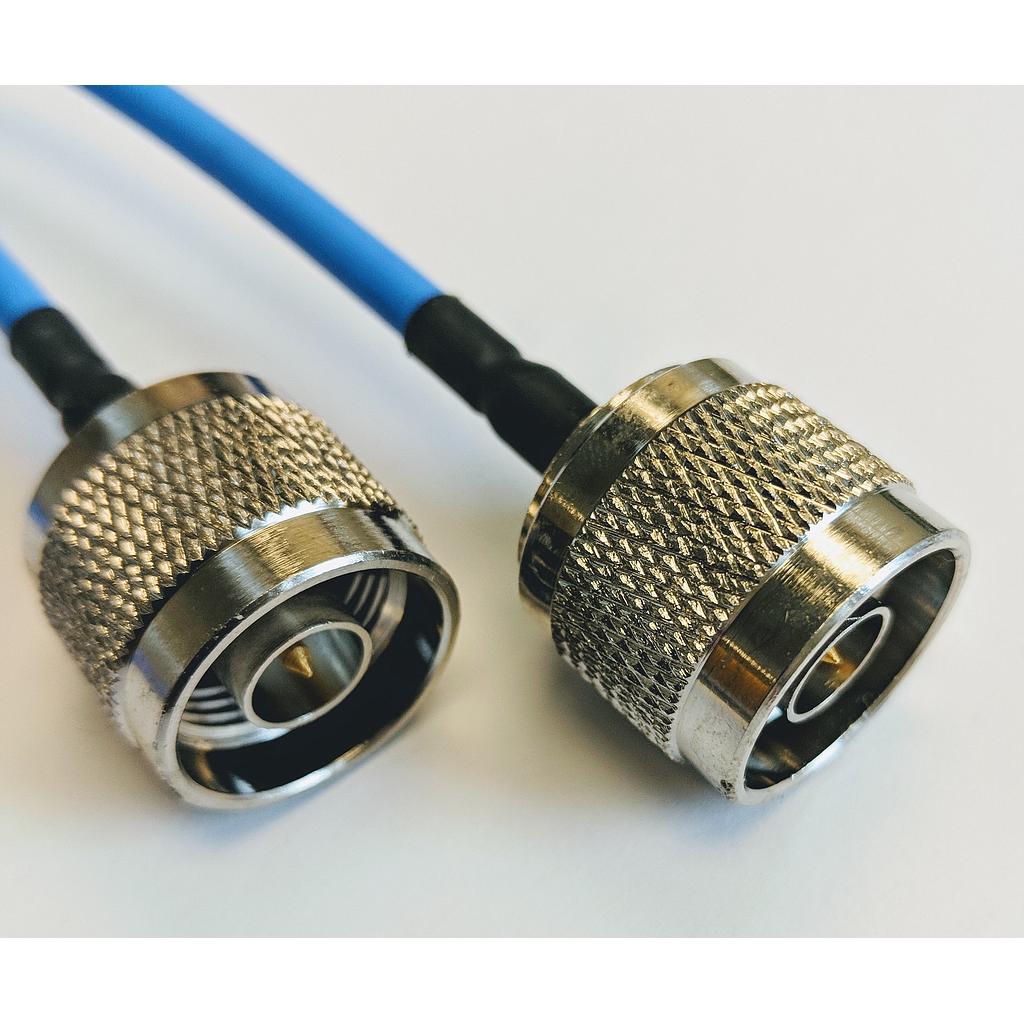

P1CA-NMNM-SS141-24
N Male to N Male test cable using SS141 High Performance Coax, 24 inches long, Operating to 18 GHz.
Connector 1:
N Male
Connector 2:
N Male
Cable Type:
SS141
Cable_Feature:
High Performance
Length (in):
24.0
Outer Diameter (in):
0.163
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.1
VSWR2:
1.2
VSWR3:
1.25
VSWR4:
1.3
IL1:
0.13
IL2:
0.3
IL3:
0.45
IL4:
0.64
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Brass
InnerCond:
SPC
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.08
OpTmpMin:
-55.0
OpTmpMax:
200.0
Shield1:
SPC Braid, SPC Ribbon
