P1-BNCP/BNCP-RG58-72
Flexible Cables, RG-style from P1dB

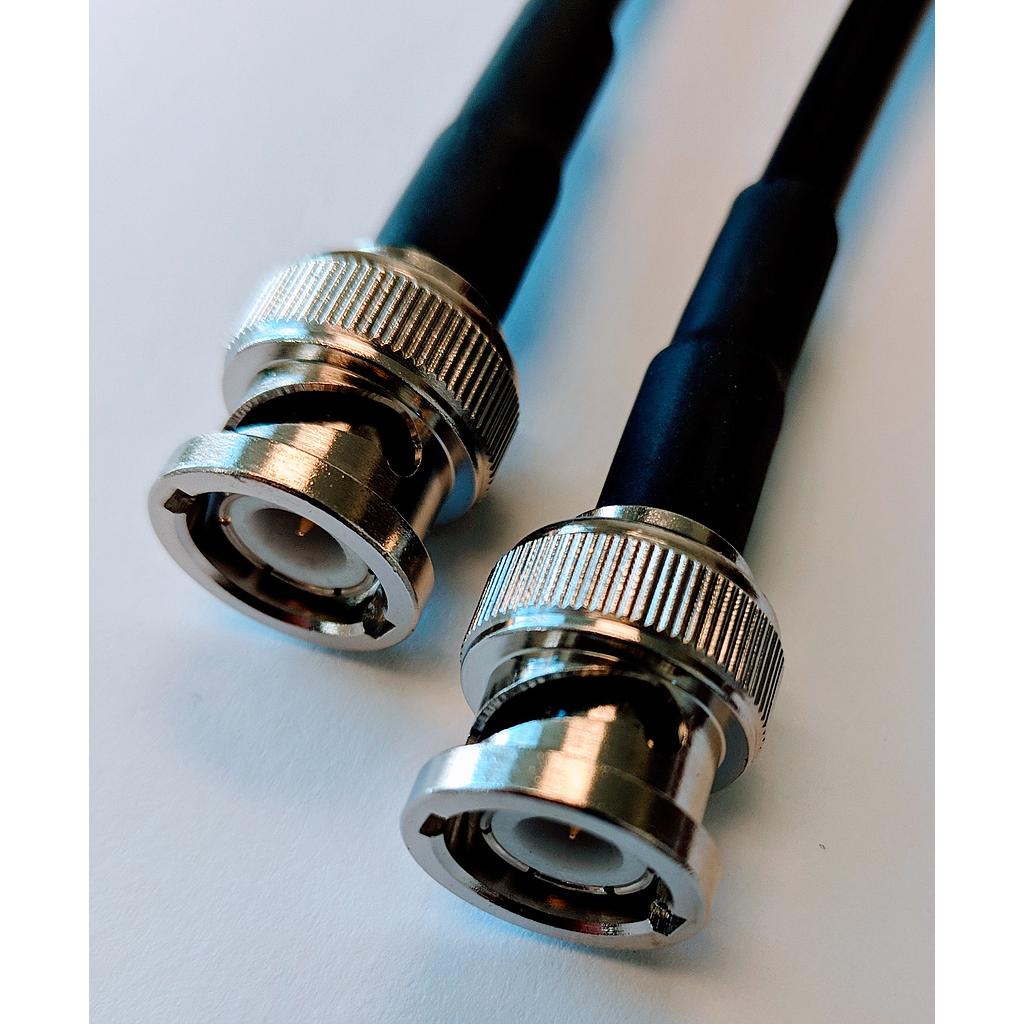

BNC Plug to BNC Plug, RG58 flexible cable, 72 inch
| Specifications |
|
Part Number:
P1-BNCP/BNCP-RG58-72
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
BNC Male
|
|
Connector 2:
BNC Male
|
|
Cable Type:
RG-58
|
|
Cable_Feature:
RG Type Flex
|
|
Length (in):
72.0
|
|
Outer Diameter (in):
0.195
|
|
InnerCond:
TPC 19/.0072
|
|
Dielectric Material:
PE
|
|
JacketMat:
PVC
|
|
MinBend:
1.0
|
|
OpTmpMin:
-40.0
|
|
OpTmpMax:
80.0
|
|
Shield1:
TPC Briad
|
P1-SMAP/SMAP-RG58-72 is a flexible RF cable that is part of P1dB's RG series flex cable assemblies. It is a 72 inch BNC Plug to BNC Plug cable assembly that utilizes RG-58 RG Type Flex coax, which is 0.195 inches in diameter. This RG Type Flex cable operates to 3 GHz with a max VSWR of 1.35:1. P1dB's RG Type Flex cable assemblies are general purpose commercial grade cables that meet dimensional and electrical specifications of QPL cables. RG Type Flex cables can operate up to 6 GHz, depending on the installed connectors. The advantage of RG type commercial cables over QPL cables is their lower cost, since they do not go through the stringent environmental, mechanical and certification testing required for military grade, QPL equivalents.
