Flexible Cables, RG-style


P1dB offers a large selection of 50 Ohm flexible coaxial cable assemblies. Popular RG316 and double shielded RD316 cables are stocked in standard lengths with SMA, N, BNC and MMCX connector options. RG316 and RD316 cable assemblies are an excellent value for test and manufacturing up to a frequency of 6 GHz. P1dB can supply custom length assemblies, typical delivery is 30 days.

P1dB's RG316 flexible cable assemblies with BNC Male to BNC Male connectors or with SMA Male to BNC Male connectors are very popular choices for the R&D Lab, Engineering and Manufacturing Test areas.

                     Evaluation samples are available for many of P1dB's "Flexible RG-style Cable Assemblies".

                                                                    Contact sales@p1db.com

Click Here if you do not find the desiredFlexible Cables, RG-style.

Sale

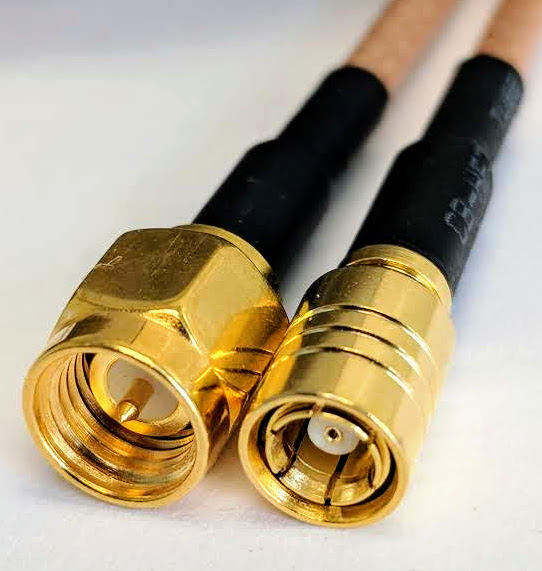

P1-SMAP/SMBP-RG316-48
RF cable assembly, SMA Male to SMB Plug (female contact), RG316 flexible coax, 48 inch.
27.15 27.15 USD
Pricelist
Min. Qty
Price
  • 1
    $ 27.15
  • 10
    $ 24.72
ConnContact2
Gold Plated Brass
Connector 1
SMA Male
Connector 2
SMB Plug
Cable Type
RG316
Length (in)
48.0
Max. Frequency (GHz)
3.0
Outer Diameter (in)
0.098
ConnBody1
Gold Plated Brass
ConnBody2
Gold Plated Brass
ConnContact1
Gold Plated Brass
Sale
P1-SMAPRA/SMAPRA-RG316-16
SMA Male Right Angle to SMA Male Right Angle cable using RG-316 RG Type Flex Coax, 16 inches long, and Operating to 6 GHz.
14.95 14.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 14.95
  • 10
    $ 14.45
ConnContact2
Gold Plated Brass
Data.F1
0.4
VSWR1
1.2
Connector 1
SMA Male Right Angle
Connector 2
SMA Male Right Angle
Cable Type
RG-316
Cable_Feature
RG Type Flex
Length (in)
16.0
Max. Frequency (GHz)
6.0
Outer Diameter (in)
0.098
Sale
P1-BNCP/BNCP-RG316-6
BNC Male to BNC Male cable using RG-316 RG Type Flex Coax, 6 inches long, and Operating to 3 GHz.
16.95 16.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 16.95
  • 10
    $ 15.92
ConnContact2
Gold Plated Brass
Data.F1
0.1
VSWR1
1.2
Connector 1
BNC Male
Connector 2
BNC Male
Cable Type
RG-316
Cable_Feature
RG Type Flex
Length (in)
Length (in): 6.0
Max. Frequency (GHz)
3.0
Outer Diameter (in)
0.098
Sale
P1CA-SAFRABMXPRA-RG316-2.75
Cable Assembly, SMA female right angle bulkhead to MCX plug right angle, flexible RG316 coax, 2.75 inch (connector end-to-end)
12.35 12.35 USD
Pricelist
Min. Qty
Price
  • 1
    $ 12.35
  • 10
    $ 10.17
ConnContact2
Gold Plated Brass
Connector 1
SMA Female Bulkhead Right Angle
Connector 2
MCX Plug Right Angle
Cable Type
RG-316
Cable_Feature
RG Type Flex
Length (in)
2.75
Max. Frequency (GHz)
3.0
Outer Diameter (in)
0.098
ConnBody1
Gold Plated Brass
ConnBody2
Gold Plated Brass
