P1-MCXPRA/MCXPRA-RD316-12
Flexible Cables, RG-style from P1dB

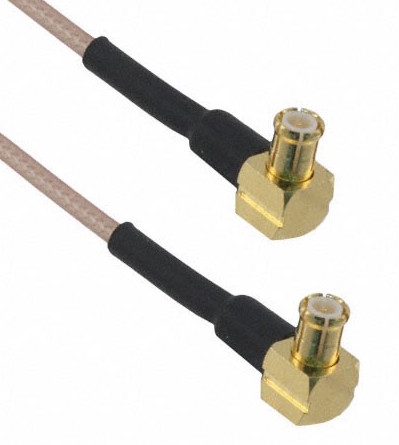

MCX Plug Right Angle to MCX Plug Right Angle, RD316 Double-Shielded Flex Coax, 12 inch. Frequency DC to 6 GHz.
| Specifications |
|
Part Number:
P1-MCXPRA/MCXPRA-RD316-12
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
MCX Plug Right Angle
|
|
Connector 2:
MCX Plug Right Angle
|
|
Cable Type:
RD316
|
|
Cable_Feature:
Double-Shielded RG Type Flex
|
|
Length (in):
12.0
|
|
Outer Diameter (in):
0.114
|
|
Max. Frequency (GHz):
6.0
|
|
MinBend:
0.6
|
P1-MCXPRA/MCXPRA-RD316-12 is a cable that is part of P1dB's RG series flex cable assemblies. It is a 12 inch MCX Plug Right Angle to MCX Plug Right Angle cable assembly that utilizes RD316 Double-Shielded RG Type Flex coax, which is 0.114 inches in diameter. This Double-Shielded RG Type Flex cable operates to 6 GHz with a max VSWR of 1.35:1. P1dB's Double-Shielded RD316 cable assemblies are general purpose RF test cables.
