P1-MMCXP/SMAPRA-RG316-36
Flexible Cables, RG-style from P1dB

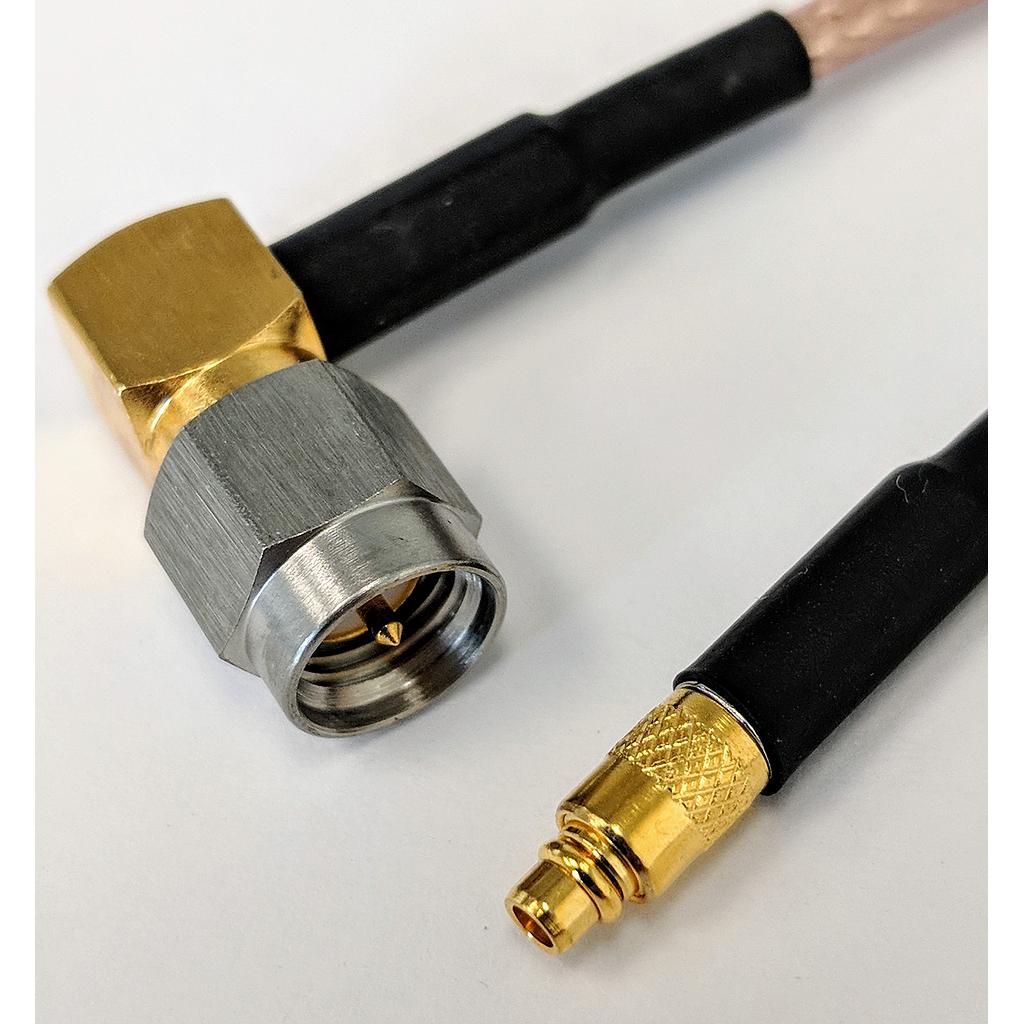

SMA Male Right Angle to MMCX Plug , RG-316 RG Type Flex Coax, 36 inches long, and Operating to 6 GHz.
| Specifications |
|
Part Number:
P1-MMCXP/SMAPRA-RG316-36
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male Right Angle
|
|
Connector 2:
MMCX Plug
|
|
Cable Type:
RG-316
|
|
Cable_Feature:
RG Type Flex
|
|
Length (in):
36.0
|
|
Outer Diameter (in):
0.098
|
|
Max. Frequency (GHz):
6.0
|
|
Data.F1:
0.4
|
|
Data.F2:
1.0
|
|
Data.F3:
2.4
|
|
Data.F4:
5.0
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.3
|
|
VSWR4:
1.35
|
|
IL1:
0.18
|
|
IL2:
0.31
|
|
IL3:
0.49
|
|
IL4:
0.67
|
|
VoP:
69.5
|
|
ConnNut1:
Gold Plated Brass
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
None
|
|
ConnBody2:
Gold Plated Brass
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
7/.0067 SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
FEP
|
|
MinBend:
0.5
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
200.0
|
|
Shield1:
SPC Braid
|
P1-MMCXP/SMAPRA-RG316-36 is an SMA Male Right Angle to MMCX Plug straight, RG-316 flexible coax assembly, 36 inches long, and Operating to 6 GHz.
