P1-SMAJ/PIGTAIL-034SR-2-12G

Pigtail Cables from P1dB

Trimmed Pigtail assembly, SMA female (jack), .034 semi rigid cable, 2 inch. RF tested DC to 12 GHz.

Specifications
Part Number:
P1-SMAJ/PIGTAIL-034SR-2-12G
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Female
Cable Type:
034SR
Length (in):
2.0

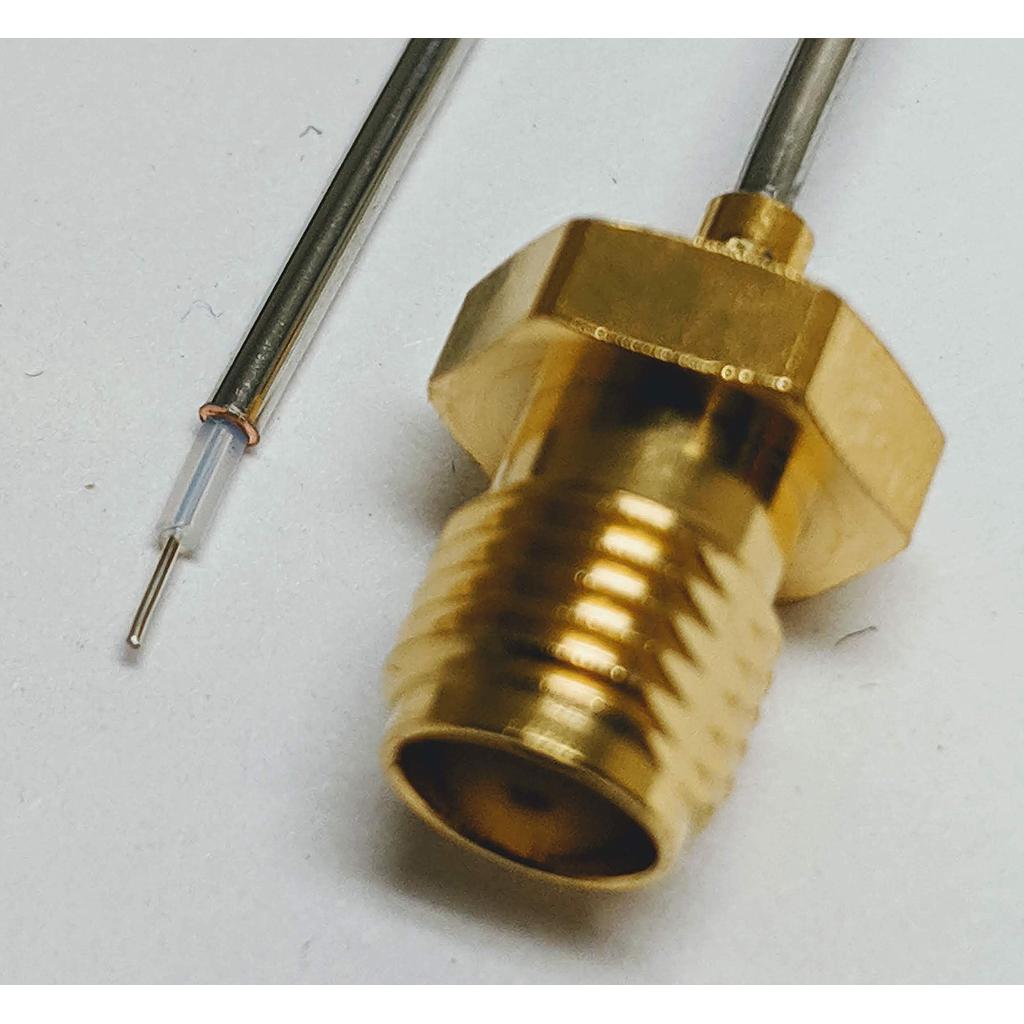

P1CA-SMAJ/PIGTAIL-034SR-2-12G is an RF Test Probe, commonly called a Pigtail assembly. It is 0.034 inch diameter semi rigid with SMA female (jack) to Pigtail (no connector), 2 inches long.  It is an extended frequency Pigtail , RF tested DC to 12 GHz with a typical VSWR 1.35 (max VSWR of 1.45).

The Pigtail cable end is trimmed to expose the dielectric and center contact.



Qty: in Unit(s)

22.97 22.97 22.97 USD

22.97

Pricelist
Min. Qty
Price
  • 1
    $ 22.97
  • 25
    $ 21.52
In Stock:100.0
