Pigtail Cables

    P1dB stocks a wide assortment of Pigtail cable assemblies, also referred to as RF Probes. Cable diameter choices are .020, .034, .047 or .085 inch. All P1dB standard Pigtails are supplied with a square cut cable end. If your application requires a trimmed cable end, please specify the desired dielectric and center conductor trim dimensions and contact P1dB at sales@p1db.com. A trimmed Pigtail assembly made to your dimensions can typically be built and shipped within 30 days.

                        Evaluation samples are available for many of P1dB's "Pigtail Assemblies".

                                                    Contact sales@p1db.com.


For more information on using a Pigtail as a Test probe visit our RF Pigtail Test Probe Page

Click Here if you do not find the desiredPigtail Cables.

P1CA-29FPT-047SR-6
2.92mm Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 6 inch.
Each assembly is RF tested DC to 40 GHz, max VSWR 1.45.
36.97 36.97 36.97 USD
Pricelist
Min. Qty
Price
  • 1
    $ 36.97
Connector 1
2.92mm Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
6.0
Max. Frequency (GHz)
40
P1CA-29FPT-020SR-6
2.92mm Female to Pigtail (no connector) cable assembly using 020SR Semi-Rigid Coax, 6 inch.
RF tested DC to 40 GHz.
46.89 46.89 46.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 46.89
Connector 1
2.92mm Female
Connector 2
Pigtail - No Connector
Cable Type
020SR
Cable_Feature
Semi-Rigid
Length (in)
6.0
Outer Diameter (in)
0.02
Max. Frequency (GHz)
40
P1-SMAJ/PIGTAIL-047SR-3-12G
Trimmed Pigtail, SMA female, .047 semi rigid, 3 inch.
RF tested DC to 12 GHz. VSWR 1.40 max.
19.98 19.98 19.98 USD
Connector 1
SMA Female
Cable Type
047SR
Cable_Feature
Trimmed end
Length (in)
3.0

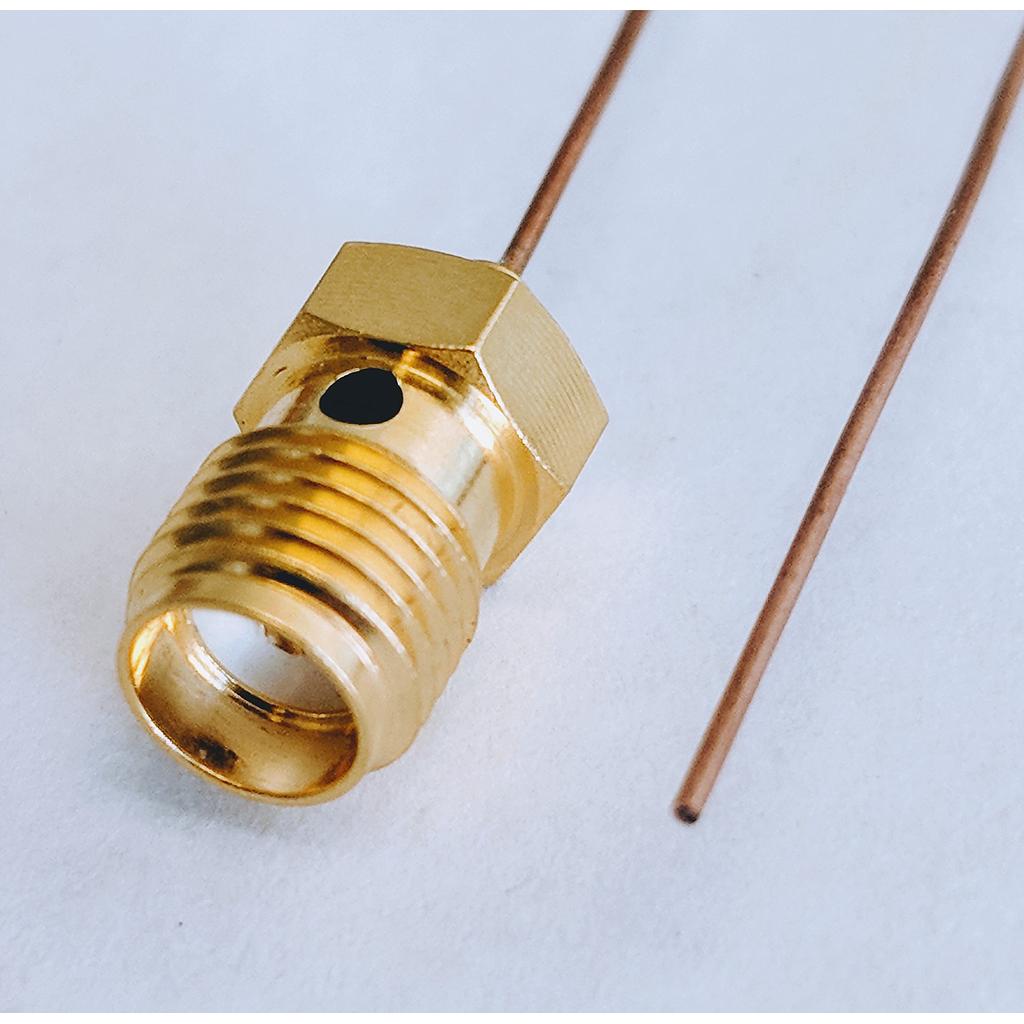

P1CA-SAFPT-020SR-2-12G
SMA Female to Pigtail, .020 Semi-Rigid Coax, 2 inch, bare copper outer conductor.
Extended frequency: RF tested DC to 12 GHz, VSWR 1.35 max.
24.74 24.74 24.740000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 24.74
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
020SR
Cable_Feature
Semi-Rigid
Length (in)
2.0
Outer Diameter (in)
0.02
Max. Frequency (GHz)
12.0

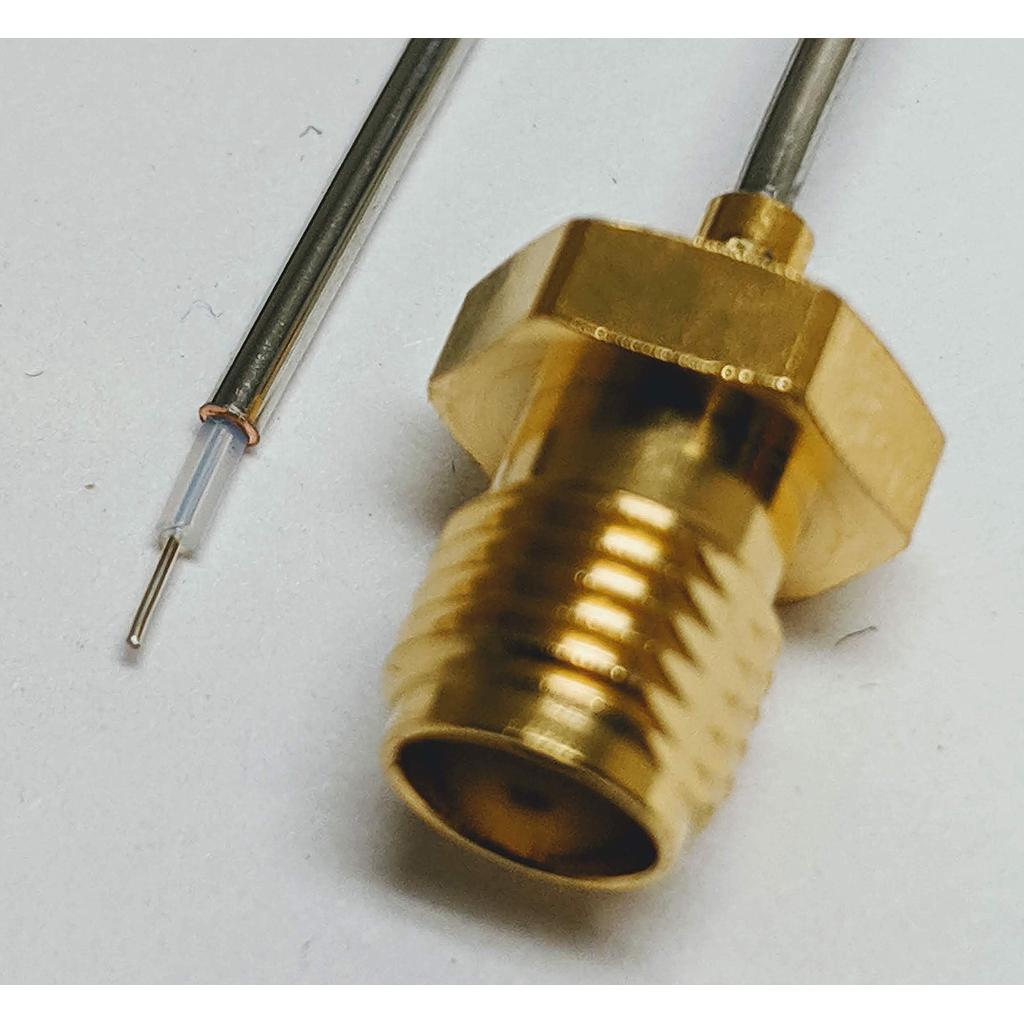

P1-SMAJ/PIGTAIL-034SR-2-12G
Trimmed Pigtail assembly, SMA female (jack), .034 semi rigid cable, 2 inch.
RF tested DC to 12 GHz.
19.97 19.97 19.97 USD
Connector 1
SMA Female
Cable Type
034SR
Length (in)
2.0
P1CA-SAFPT-020SR-9-12G
SMA Female to Pigtail, .020 Semi-Rigid Coax, 9 inch, bare copper outer conductor.
Extended frequency: RF tested DC to 12 GHz.
29.67 29.67 29.67 USD
Pricelist
Min. Qty
Price
  • 1
    $ 29.67
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
020SR
Cable_Feature
Semi-Rigid
Length (in)
9.0
Outer Diameter (in)
0.02
Max. Frequency (GHz)
12.0
P1CA-SAFPT-034SR-4-12G
Extended frequency RF Test Probe.
SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 4 inch.
RF Tested DC to 12 GHz with a 1.45 max VSWR.
20.95 20.95 20.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 20.95
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
034SR
Cable_Feature
Semi-Rigid
Length (in)
4.0
Outer Diameter (in)
0.034
Max. Frequency (GHz)
12.0
P1CA-SAFTP-RG178-300MM
Test cable, SMA female to Test Probe, flexible 1.78mm diameter cable, 300 mm.
Cross to Murata MXHS83QE3000.
Typical lead time is 4 weeks.
59.85 59.85 59.85 USD
Pricelist
Min. Qty
Price
  • 1
    $ 59.85
P1CA-SAFPT-047SR-3-12G
Extended frequency RF Test Probe.
SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 3 inch.
RF tested to 12 GHz with VSWR 1.40 max.
19.98 19.98 19.98 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.98
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
3.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
12.0
P1CA-SAF2PT-047SR-4-12G
Extended frequency RF Test Probe.
SMA Female 2 Hole Flange to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 4 inch.
Operating up to 12 GHz with VSWR 1.4 max.
19.98 19.98 19.98 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.98
Connector 1
SMA Female 2-Hole Flange
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
4.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
12.0
P1CA-SAF2PT-047SR-2-12G
Extended frequency RF Test Probe.
SMA Female 2 Hole Flange to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 2 inch.
RF tested DC to 12 GHz with VSWR 1.4 max.
19.98 19.98 19.98 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.98
Connector 1
SMA Female 2-Hole Flange
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
2.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
12.0

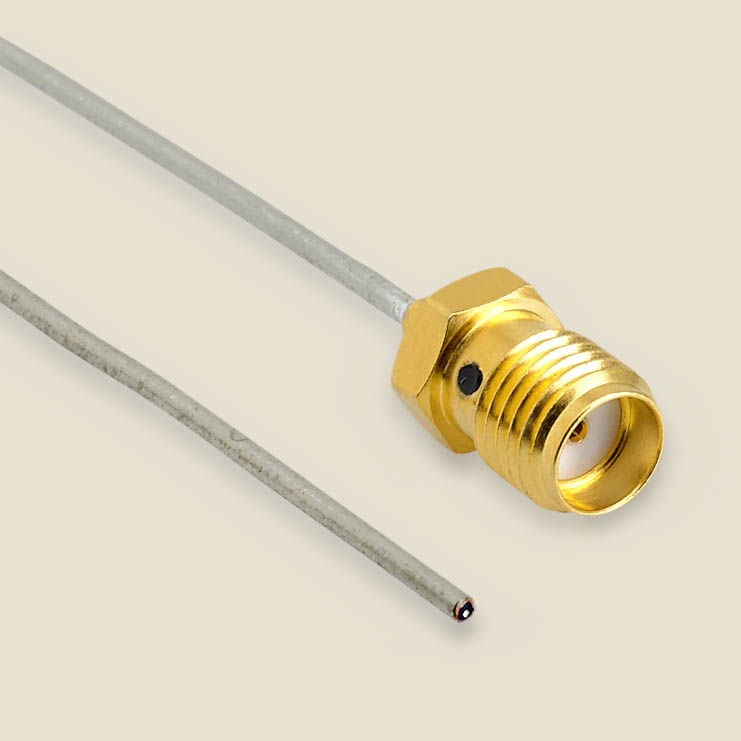

P1CA-SAFPT-047SR-4-12G
Extended frequency RF Test Probe.
SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 4 inch.
RF tested DC to 12 GHz with VSWR 1.4 max.
19.98 19.98 19.98 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.98
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
4.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
12.0

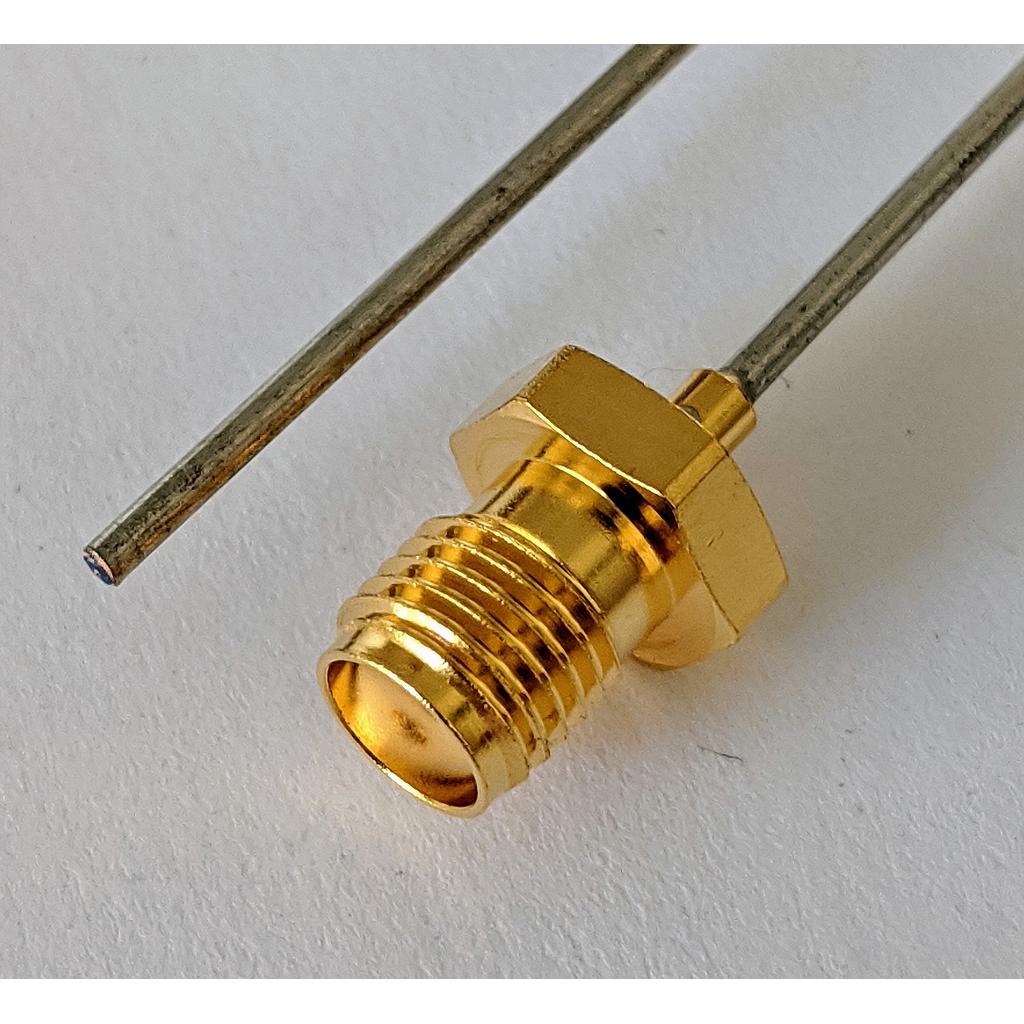

P1CA-SAFPT-047SR-2-12G
Extended frequency RF Test Probe.
SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 2 inch.
RF tested to 12 GHz with VSWR 1.4 max.
19.98 19.98 19.98 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.98
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
2.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
12.0
P1CA-SAFPT-047CC-10
SMA Female to Pigtail (no connector) cable assembly using 047CC Conformable Coax, 10 inches long, Operating to 6 GHz.
16.96 16.96 16.96 USD
Pricelist
Min. Qty
Price
  • 1
    $ 16.96
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047CC
Cable_Feature
Conformable
Length (in)
10.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
6.0
Data.F1
1.0
Data.F2
3.0
Data.F3
5.0
P1CA-SAFPT-020SR-1TR
SMA Female to Pigtail, .020 Semi-Rigid Coax, 1 inch cable length with 2mm exposer center contact, bare copper outer conductor
23.88 23.88 23.88 USD
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
020SR
Cable_Feature
Semi-Rigid
Outer Diameter (in)
0.02
Max. Frequency (GHz)
6.0
P1CA-SAFPT-047SR-10
SMA Female to Pigtail (no connector) cable assembly using .047 Semi-Rigid Coax, 10 inch
19.95 19.95 19.95 USD
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
10.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
6.0
Data.F1
1.0
Data.F2
3.0
Data.F3
5.0
P1CA-SAFPT-047CC-4-TR
SMA Female to Pigtail cable assembly, .047 hand formable flexible coax (no jacket), 4 inch with trimmed end, dielectric 0.100 inch and center contact 0.100 inch, to 6 GHz.
19.45 19.45 19.45 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.45
  • 25
    $ 17.58
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047CC
Cable_Feature
Conformable
Length (in)
4.0
Outer Diameter (in)
0.047
Max. Frequency (GHz)
6.0
Data.F1
1.0
Data.F2
3.0
Data.F3
5.0
P1CA-SAMPT-085CJ-4-TR
SMA Male to Pigtail (no connector) cable assembly using 085CJ Jacketed Conformable Coax, 4 inches long, Operating to 6 GHz.
Trimmed End.
14.95 14.95 14.950000000000001 USD
Connector 1
SMA Male
Connector 2
Pigtail - No Connector
Cable Type
085CJ
Cable_Feature
Jacketed Conformable
Length (in)
4.0
Outer Diameter (in)
0.102
Max. Frequency (GHz)
6.0

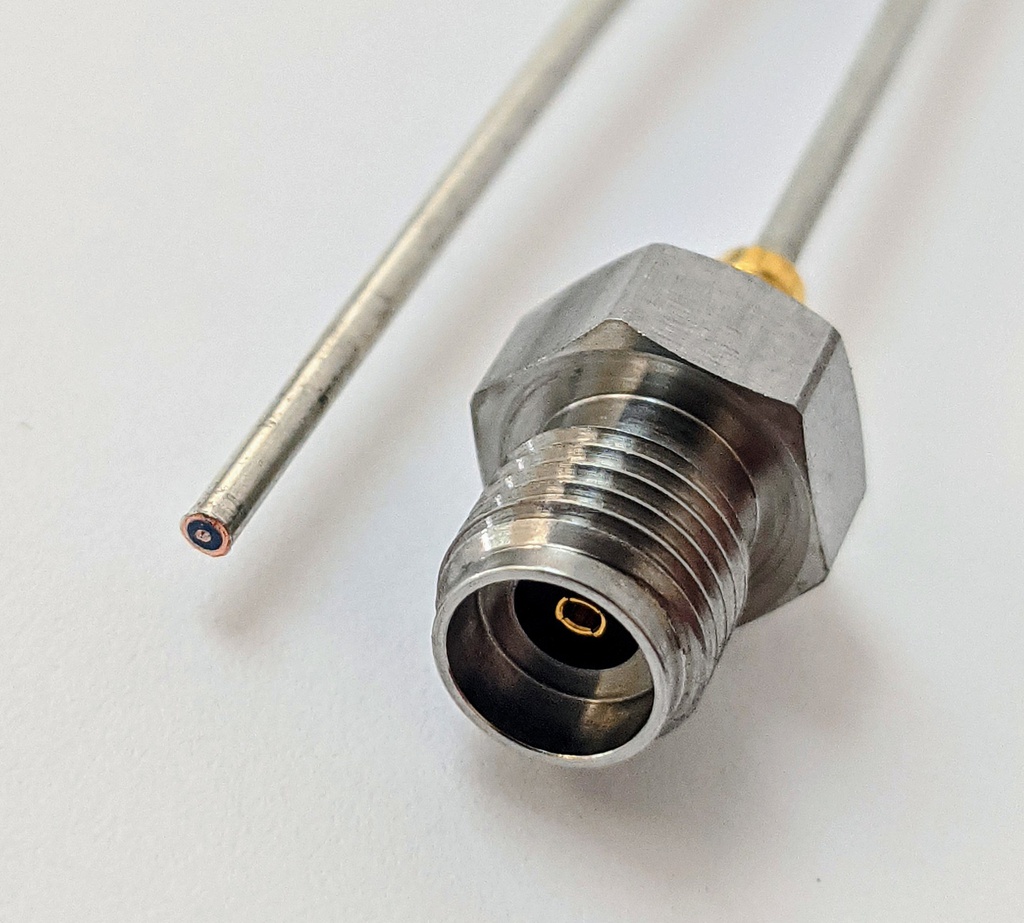

P1CA-29FPT-047SR-2
2.92mm Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 2 inch.
Each assembly RF tested DC to 40 GHz, max VSWR 1.45.
34.78 34.78 34.78 USD
Pricelist
Min. Qty
Price
  • 1
    $ 34.78
Connector 1
2.92mm Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Length (in)
2.0
Max. Frequency (GHz)
40
P1CA-SAFPT-047SR-12
SMA Female to Pigtail cable assembly using 047SR Semi-Rigid Coax, 12 inches long.
21.93 21.93 21.93 USD
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Length (in)
12.0
Outer Diameter (in)
0.047
