P1-SMAJ/PIGTAIL-047SR-3-12G
Pigtail Cables from P1dB
Trimmed Pigtail, SMA female, .047 semi rigid, 3 inch. RF tested DC to 12 GHz. VSWR 1.40 max.
| Specifications |
|
Part Number:
P1-SMAJ/PIGTAIL-047SR-3-12G
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Female
|
|
Cable Type:
047SR
|
|
Cable_Feature:
Trimmed end
|
|
Length (in):
3.0
|
|
Frequency Max (GHz):
12
|

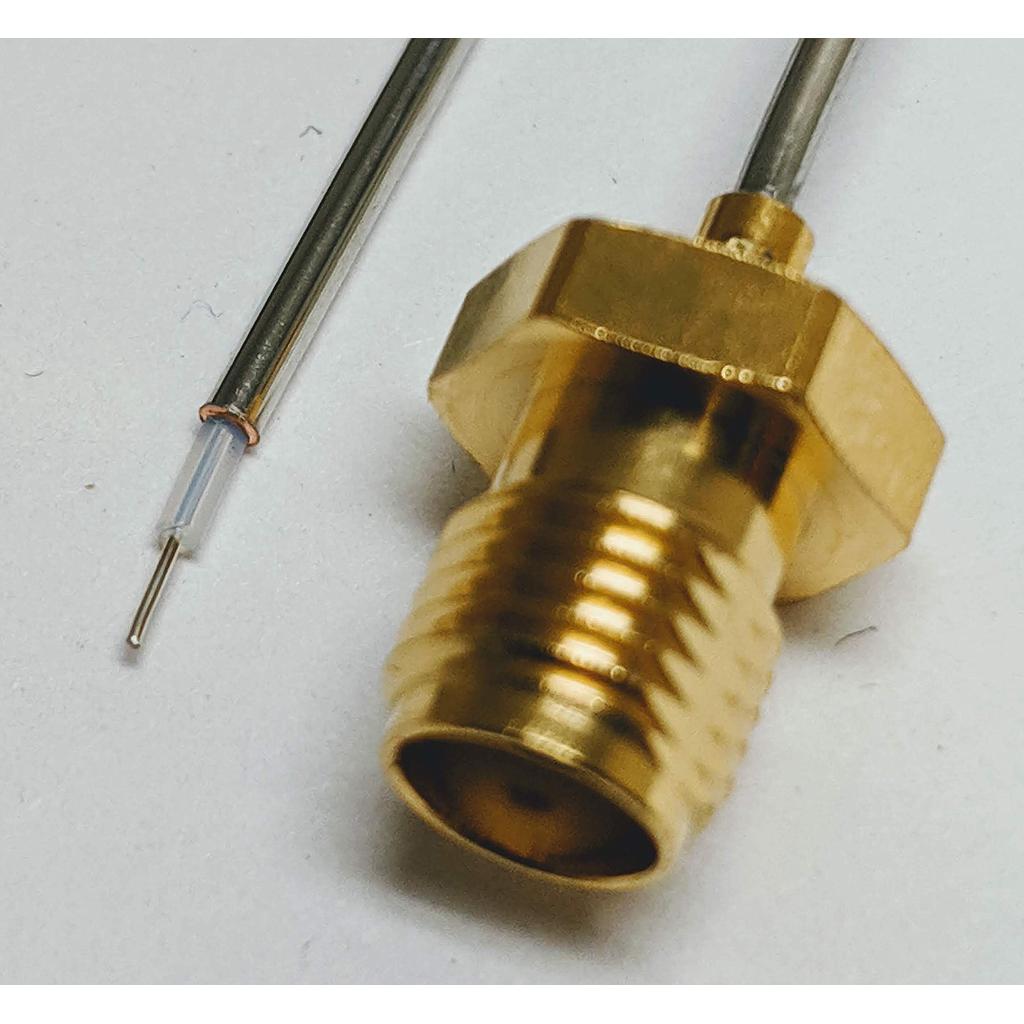

P1-SMAJ/PIGTAIL-047SR-3-12G is an RF Test Probe, commonly called a Pigtail assembly. It is 0.047 inch diameter semi rigid with SMA female (jack) to Pigtail (no connector). It is an extended frequency Pigtail , RF tested DC to 12 GHz with a max VSWR of 1.40. The cable end is trimmed to expose the dielectric and center contact.
