P1-SMAP/SMAP-141CC-15

Low cost hand formable cables from P1dB

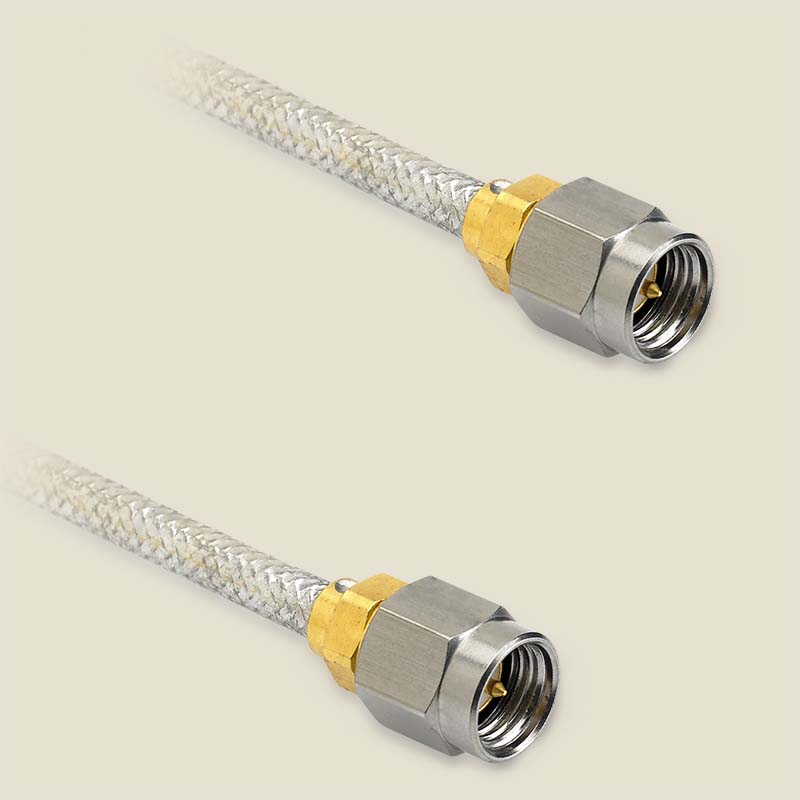

SMA Male to SMA Male cable assembly using 141CC Conformable Coax, 15 inch.

P1-SMAPRA/SMAP-RG178-24
Cable Assembly, SMA Right Angle Male to SMA Male, RG178 Coax, 24 inches
Status: No new designs
Data Sheet: Data Sheet
RoHS Compliance: No
Specifications
Part Number:
P1-SMAP/SMAP-141CC-15
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
141CC
Cable_Feature:
Conformable
Length (in):
15.0
Outer Diameter (in):
0.141
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.25
VSWR2:
1.3
VSWR3:
1.32
VSWR4:
1.35
IL1:
0.12
IL2:
0.31
IL3:
0.45
IL4:
0.65
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
SPCW
Dielectric Material:
PTFE
Shield1:
Tinned Cu/Sn Braid
JacketMat:
FEP
MinBend:
0.38
OpTmpMin:
-85.0
OpTmpMax:
200.0

P1-SMAP/SMAP-141CC-15 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 15 inch SMA Male to SMA Male Conformable cable assembly that utilizes 141CC conformable coax with a diameter of 0.141 inches. The RF cable assembly operates to 18 GHz with a max VSWR of 1.35:1.

Qty: in Unit(s)

14.95 14.95 14.95 USD

14.95

Pricelist
Min. Qty
Price
  • 1
    $ 14.95
  • 10
    $ 14.45
  • 25
    $ 13.95
In Stock:21.0
