P1CA-24F24M-130F-24-PM-1PS
Phase Matched Cables from P1dB

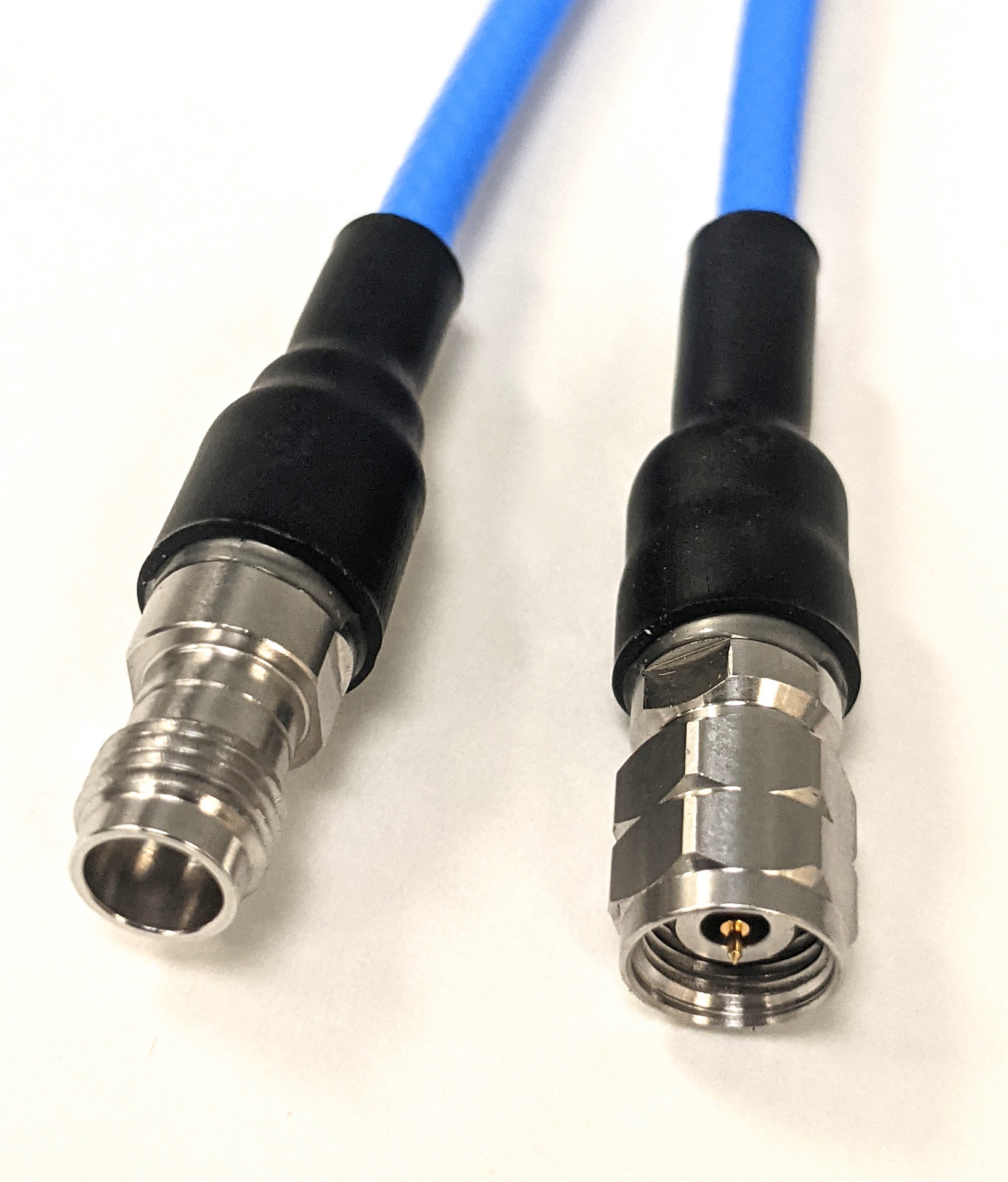

Phase matched cable assemblies, 2.4mm female to 2.4mm male, 130F flexible coax, 24 inch. Phase matched +/- 1 ps. Frequency DC to 50 GHz. Supplied as skew (delay) matched pairs (min buy quantity 2 pcs). Price is per cable. Contact P1dB for larger matched sets of cables (>2). Each set includes S-Parameter data.
| Specifications |
|
Part Number:
P1CA-24F24M-130F-24-PM-1PS
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
2.4mm Female
|
|
Connector 2:
2.4mm Male
|
|
Cable Type:
130F
|
|
Cable_Feature:
Flexible, low loss
|
|
Length (in):
24.0
|
|
Outer Diameter (in):
0.14
|
|
Max. Frequency (GHz):
50.0 GHz
|
|
MinBend:
0.7
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
125.0
|
P1dB's matched cable P1CA-24F24M-130F-24-PM-1PS is a flexible low loss cable assembly with 2.4mm female to 2.4mm male connectors. The assemblies are supplied as skew matched pairs to +/- 1 ps over the frequency range DC to 50 GHz. The assembly length is 24 inches and typical insertion loss at 50 GHz is 2.4 dB. Typical VSWR from DC to 50 GHz is 1.30.
The flexible 130F cable has an outer diameter of 0.14 inch (3.6mm) and has a Velocity of Propagation of 74%. The cable features 2 shield layers for >90 dB shielding performance. Made with a Low Density PTFE dielectric, typical attenuation at 50 GHz is 1.0 dB/ft.
