Phase Matched Cables

For applications requiring very high frequency, P1dB has cable and connector options to phase match up to 67 GHz. Using 2.92mm connectors for frequencies up to 40 GHz, 2.4mm connectors to 50 GHz or 1.85mm connectors to 67 GHz, P1dB has high performance low loss flexible cable solutions.

For a phase matched cable assembly quote, contact P1dB : sales@ p1db.com. Describe the cable set that must be phase matched: # of cables, connector type, maximum frequency and match frequency, phase match desired (i.e. 5 ps or 5 degrees, etc ).

Click Here if you do not find the desiredPhase Matched Cables.

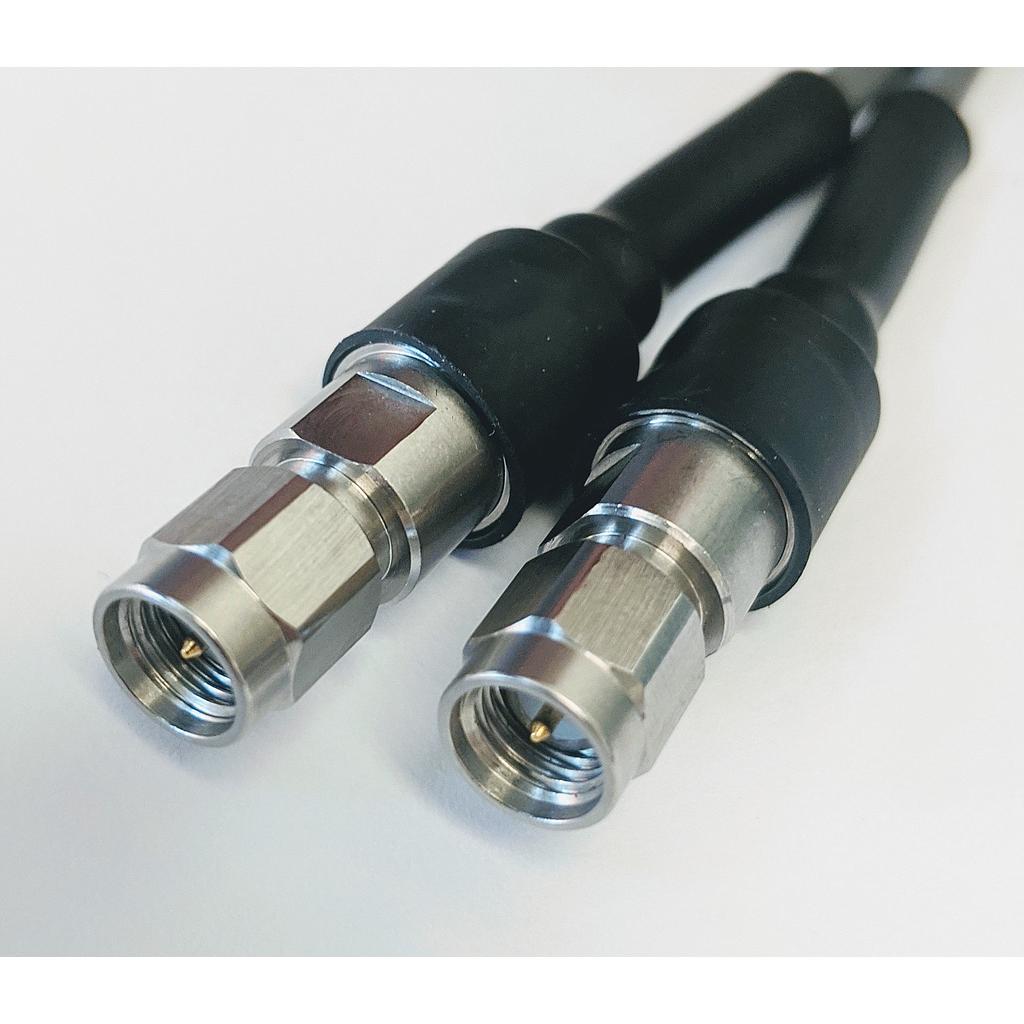

P1CA-SAMSAM-F140-12-PM-1PS RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 12 inch. Supplied as Time Delay (skew) matched cable pairs. Larger quantity matched sets available upon request. Time delay +/- 1 ps max from DC to 26.5 GHz. S parameter data included. Price is per cable, minimum order 2 cables. ~~$ 197.56~~ $ 197.56 197.56 USD Pricelist Min. Qty Price 2 $ 197.56	P1CA-24M24M-130F-12-PM-1PS Phase matched pair of cable assemblies (2) , 2.4mm male to 2.4mm male, 130F flexible coax, 12 inch. Phase matched +/- 1 ps. Frequency DC to 50 GHz. Supplied as a skew (delay) matched pair (min order 2 pcs). Price is per cable. Each set includes S-Parameter data. Note: contact P1dB if you require a matched set of cables larger than 2 pcs. ~~$ 279.65~~ $ 279.65 279.65000000000003 USD Pricelist Min. Qty Price 2 $ 279.65	P1CA-24M24M-130F-24-PM-1PS Phase matched cable assemblies, 2.4mm male to 2.4mm male, 130F flexible coax, 24 inch. Phase matched +/- 1 ps. Frequency DC to 50 GHz. Supplied as skew (delay) matched pairs (min buy quantity 2 pcs). Price is per cable. Contact P1dB for larger matched sets of cables (>2). Each set includes S-Parameter data. ~~$ 286.68~~ $ 286.68 286.68 USD Pricelist Min. Qty Price 2 $ 286.68	P1CA-SPFSPF-F090-12-PM-1PS RF flexible cable assembly, SMP female straight to SMP female straight, 0.090 inch flexible coaxial cable, 12 inch. Phase matched cable pairs. Phase matched +/- 1 picosecond DC to 26.5 GHz. ~~$ 183.92~~ $ 183.92 183.92000000000002 USD Pricelist Min. Qty Price 2 $ 183.92
P1CA-SAMSAM-F140-36-PM-1PS RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 36 inch. Supplied as skew matched cable pairs. Contact P1dB for larger quantity matched sets (>2 cables). Time delay +/- 1 ps max from DC to 26.5 GHz. S parameter data included. Price is per cable, minimum order 2 cables. ~~$ 287.56~~ $ 287.56 287.56 USD Pricelist Min. Qty Price 2 $ 287.56	P1CA-SAMSAM-F140-24-PM-1PS RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 24 inch. Phase matched cable pairs. Supplied as skew (delay) matched sets (min buy 2 pcs) +/- 1 ps. Frequency DC to 26.5 GHz. S Parameter data supplied with each set. ~~$ 203.34~~ $ 203.34 203.34 USD Pricelist Min. Qty Price 2 $ 203.34	P1CA-29M29M-SS085-60-PM Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz. Length 60 inch. Phase matched +/- 5 degrees to 18 GHz. Supplied as a phase matched pair (2 cables), test data included.. Price is per cable. Typical lead time is 4 weeks. Contact P1dB if you require a larger quantity of cables as a phase matched set. ~~$ 137.48~~ $ 137.48 137.48 USD Pricelist Min. Qty Price 2 $ 137.48	P1CA-29M29M-SS085-24-PM Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz. Length 24 inch. Phase matched +/- 5 degrees at 18 GHz. Supplied as phase matched pairs (2). Priced per cable. Test data included. ~~$ 114.89~~ $ 114.89 114.89 USD Pricelist Min. Qty Price 2 $ 114.89
P1CA-29M29M-SS085-1M-PM Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz. Length 1 meter. Phase matched within +/- 5 degrees at 18 GHz. Supplied as TBD # of phase matched assemblies (minimum 2). Price is per cable. Typical lead time is 4 weeks. ~~$ 122.89~~ $ 122.89 122.89 USD Pricelist Min. Qty Price 2 $ 122.89	P1CA-SAMSAM-SS141-12-PM RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 12 inch. Supplied as a phase matched cable pair (2 cables minimum buy). Price is per cable. Cable pairs matched +/- 5 degrees at 10 GHz, operating to 18 GHz. Contact P1dB for matched sets > quantity 2. ~~$ 93.78~~ $ 93.78 93.78 USD Pricelist Min. Qty Price	P1CA-SAMSAM-SS141-24-PM RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 24 inch. Supplied as phase matched cable pairs (2 cables ). Match is +/- 5 degrees at 10 GHz, operating to 18 GHz. Price is per cable, minimum order 2 cables. Contact P1dB for matched cale sets > 2. ~~$ 109.75~~ $ 109.75 109.75 USD Pricelist Min. Qty Price 2 $ 109.75	P1CA-SAMSAM-SS141-48-PM RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 48 inch. Supplied as TBD # of cables phase matched +/- 5 degrees at 10 GHz, operating to 18 GHz. ~~$ 139.55~~ $ 139.55 139.55 USD Pricelist Min. Qty Price 2 $ 139.55
P1CA-SAMSAM-SS141-1M-PM RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 1 meter. Supplied as a phase matched pair (2 cables). Price is per cable, minimum order 2 cables. Phase matched +/- 5 degrees at 10 GHz, operating to 18 GHz. Contact P1dB for matched sets > quantity 2. ~~$ 119.77~~ $ 119.77 119.77 USD Pricelist Min. Qty Price 2 $ 119.77	P1CA-24M24M-130F-1M-PM-1PS Phase matched cable assemblies, 2.4mm male to 2.4mm male, 130F flexible coax, 1 meter. Skew (delay) matched +/- 1 ps. Frequency DC to 50 GHz. Supplied as matched pairs (min buy quantity 2 pcs). Price is per cable. Each pair includes S-Parameter data. If you require a larger quantity matched set of cables (>2) please contact P1dB for a quote. ~~$ 297.72~~ $ 297.72 297.72 USD Pricelist Min. Qty Price 2 $ 297.72	P1CA-SMFTSMFT-F090-6 RF flexible cable assembly, SMPM-T female straight to SMPM-T female straight, 0.090 inch flexible coaxial cable, 6 inch. Frequency DC to 40 GHz. ~~$ 287.65~~ $ 287.65 287.65000000000003 USD Pricelist Min. Qty Price 10 $ 287.65 20 $ 273.44	P1CA-24M24M-130F-12-PM-1PS-SET4 Phase matched set of 4 cable assemblies, 2.4mm male to 2.4mm male, 130F flexible coax, 12 inch. Phase matched +/- 1 ps. Frequency DC to 50 GHz. Supplied as a skew (delay) matched set of 4 cables . Price is per set. Each set includes S-Parameter data. ~~$ 1,118.56~~ $ 1,118.56 1118.56 USD Pricelist Min. Qty Price
P1CA-24M24M-130F-6-PM-1PS Phase matched pair of cable assemblies (2) , 2.4mm male to 2.4mm male, 130F flexible coax, 6 inch. Phase matched +/- 1 ps. Frequency DC to 50 GHz. Supplied as skew (delay) matched pairs (min order 2 pcs). Price is per cable. Each matched pair includes S-Parameter data. Note: contact P1dB if you require a matched set of cables larger than 2 pcs. ~~$ 278.50~~ $ 278.50 278.5 USD Pricelist Min. Qty Price 2 $ 278.5	P1CA-SAMSPF-F090-36-PM-1PS RF flexible cable assembly, SMA male to SMP female straight, 0.090 inch flexible coaxial cable, 36 inch. Skew (delay) matched cable pairs. Matched +/- 1 ps. Frequency DC to 18 GHz. Price is per cable, minimum order 2 cables. ~~$ 298.00~~ 298.0 USD	P1CA-29M29M-F150-120 RF flexible low loss test cable assembly, 2.92mm Male to 2.92mm Male, 0.15 inch diameter phase stable cable, 10 ft. Frequency DC to 40 GHz. ~~$ 492.00~~ $ 492.00 492.0 USD Pricelist Min. Qty Price	P1CA-SAMSAM-F140-36-PM-1PS-SET4 RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 36 inch. Supplied as a skew matched set of 4 cables. Time delay +/- 1 ps max from DC to 10 GHz. S parameter data included. Price is per set (4 cables). ~~$ 894.00~~ $ 894.00 894.0 USD
