P1CA-24M24M-130F-12-PM-1PS
Phase Matched Cables from P1dB

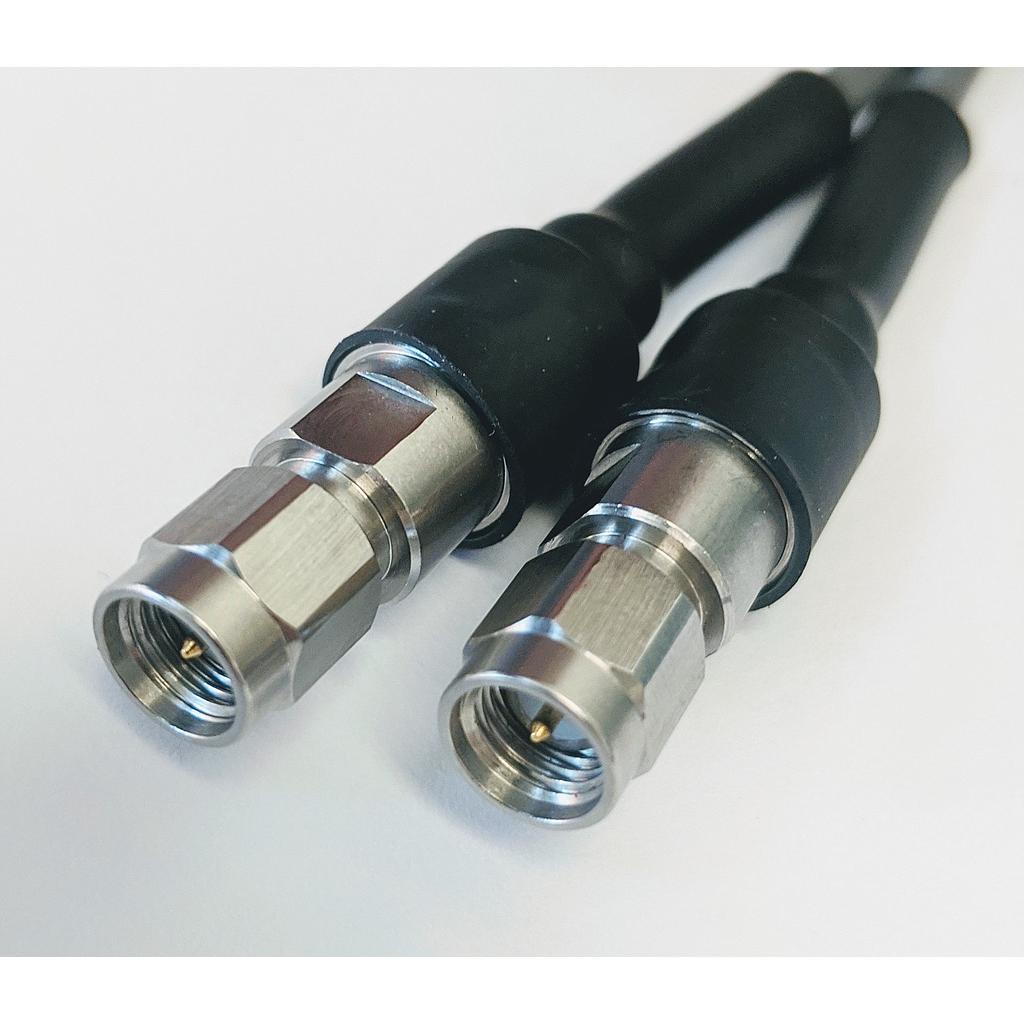

Phase matched pair of cable assemblies (2) , 2.4mm male to 2.4mm male, 130F flexible coax, 12 inch. Phase matched +/- 1 ps. Frequency DC to 50 GHz. Supplied as a skew (delay) matched pair (min order 2 pcs). Price is per cable. Each set includes S-Parameter data. Note: contact P1dB if you require a matched set of cables larger than 2 pcs.
| Specifications |
|
Part Number:
P1CA-24M24M-130F-12-PM-1PS
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
2.4mm Male
|
|
Connector 2:
2.4mm Male
|
|
Cable Type:
130F
|
|
Cable_Feature:
Flexible, low loss
|
|
Length (in):
12.0
|
|
Outer Diameter (in):
0.14
|
|
Max. Frequency (GHz):
50.0 GHz
|
|
MinBend:
0.7
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
125.0
|
P1dB's matched cable P1CA-24M24M-130F-12-PM-1PS is a flexible low loss cable assembly with 2.4mm male to 2.4mm male connectors. The assemblies are supplied as matched pairs to within 1 ps over the frequency range DC to 50 GHz. The assembly length is 12 inches and typical insertion loss at 50 GHz is 1.4 dB. Typical VSWR from DC to 50 GHz is 1.30.
The flexible 130F cable has an outer diameter of 0.14 inch (3.6mm) and has a Velocity of Propagation of 74%. The cable features 2 shield layers for >90 dB shielding performance. Made with a Low Density PTFE dielectric, typical attenuation at 50 GHz is 1.0 dB/ft.
