P1CA-29M29M-SS085-60-PM
Phase Matched Cables from P1dB

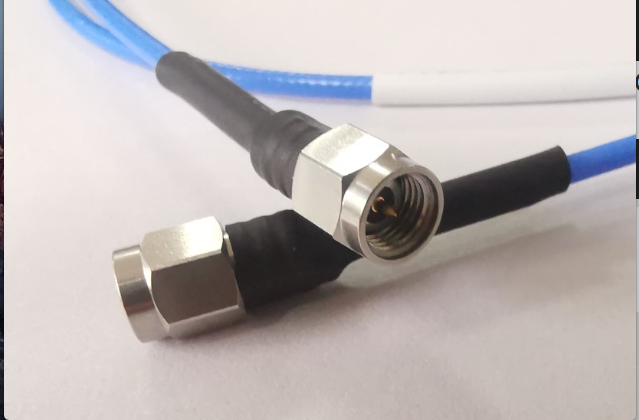

Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors operating to 40 GHz. Length 60 inch. Phase matched +/- 5 degrees to 18 GHz. Supplied as a phase matched pair (2 cables), test data included.. Price is per cable. Typical lead time is 4 weeks. Contact P1dB if you require a larger quantity of cables as a phase matched set.
| Specifications |
|
Part Number:
P1CA-29M29M-SS085-60-PM
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
2.92mm Male
|
|
Connector 2:
2.92mm Male
|
|
Cable Type:
SS085
|
|
Cable_Feature:
High Performance
|
|
Length (in):
60.0
|
|
Outer Diameter (in):
0.104
|
|
Max. Frequency (GHz):
40.0
|
|
Data.F1:
1.0
|
|
Data.F2:
18.0
|
|
Data.F3:
30.0
|
|
Data.F4:
40.0
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.35
|
|
VSWR4:
1.45
|
|
IL1:
0.25
|
|
IL2:
1.1
|
|
IL3:
1.5
|
|
IL4:
1.9
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Passivated Stainless Steel
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Passivated Stainless Steel
|
|
ConnBody2:
Passivated Stainless Steel
|
|
ConnContact2:
Gold Plated Beryllium Copper
|
|
InnerCond:
SPC
|
|
Dielectric Material:
PTFE
|
|
Shield2:
SPC Braid
|
|
JacketMat:
FEP
|
|
MinBend:
0.25
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
125.0
|
|
Shield1:
SPC Ribbon
|
Qty:
in Unit(s)
