P1CA-SAFBUFP-047CC-6

Ultra Miniature Cable Assemblies from P1dB

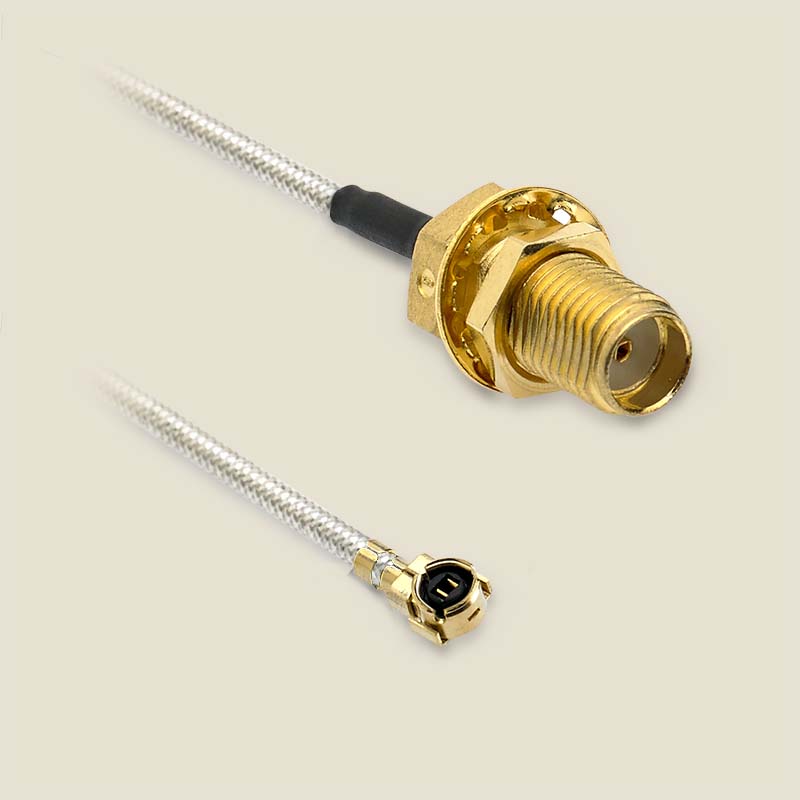

Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, 047CC Conformable Coax, 6 inches

Specifications
Part Number:
P1CA-SAFBUFP-047CC-6
Status:
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Female
Connector 2:
U.FL Male
Cable Type:
047CC
Cable_Feature:
Conformable
Length (in):
6.0
Outer Diameter (in):
0.04
Max. Frequency (GHz):
6.0
Conn1_Type (Angle, Mount):
Bulkhead
Conn2_Type (Angle, Mount):
Right Angle

P1CA-SAFBUFP-047CC-6 is an SMA Female Bulkhead to U.FL, hand formable .047 cable (no jacket), 6 inch.

P1dB’s ultra-miniature cable assemblies are available with flexible cable or semi-rigid coax. Flexible cable diameter choices are 0.8 mm, 1.1 mm or 1.3 mm. Miniature semi-rigid coax assemblies diameters include .020 inch, .034 or .047 inch.

Flex cables come with a choice of U.FL-style connectors, SMA or MMCX connectors. P1dB’ s U.FL (also called UFP) assemblies are fully compatible with Hirose’s U.FL™ and IPEX’s MHF™ series. P1dB’s UFL assemblies are available in a variety of coax cable options, which include 0.8mm, 1.1mm, 1.3mm, .047 Conformable Coax or RG178. Choose from standard SMA or Reverse Polarity SMA for antenna connections.

Qty: in Unit(s)

20.25 20.25 20.25 USD

20.25

Pricelist
Min. Qty
Price
  • 1
    $ 20.25
  • 10
    $ 18.9
Typical Delivery: 30.0 Days
