P1CA-SAFPT-047CC-4-TR
Pigtail Cables from P1dB
SMA Female to Pigtail cable assembly, .047 hand formable flexible coax (no jacket), 4 inch with trimmed end, dielectric 0.100 inch and center contact 0.100 inch, to 6 GHz.
| Specifications |
|
Part Number:
P1CA-SAFPT-047CC-4-TR
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Female
|
|
Connector 2:
Pigtail - No Connector
|
|
Cable Type:
047CC
|
|
Cable_Feature:
Conformable
|
|
Length (in):
4.0
|
|
Outer Diameter (in):
0.047
|
|
Max. Frequency (GHz):
6.0
|
|
Data.F1:
1.0
|
|
Data.F2:
3.0
|
|
Data.F3:
5.0
|
|
IL1:
0.34
|
|
IL2:
0.58
|
|
IL3:
0.79
|
|
VoP:
70.0
|
|
ConnNut1:
None
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Beryllium Copper
|
|
InnerCond:
SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
None
|
|
MinBend:
0.05
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
150.0
|
|
Shield1:
Tinned Copper
|

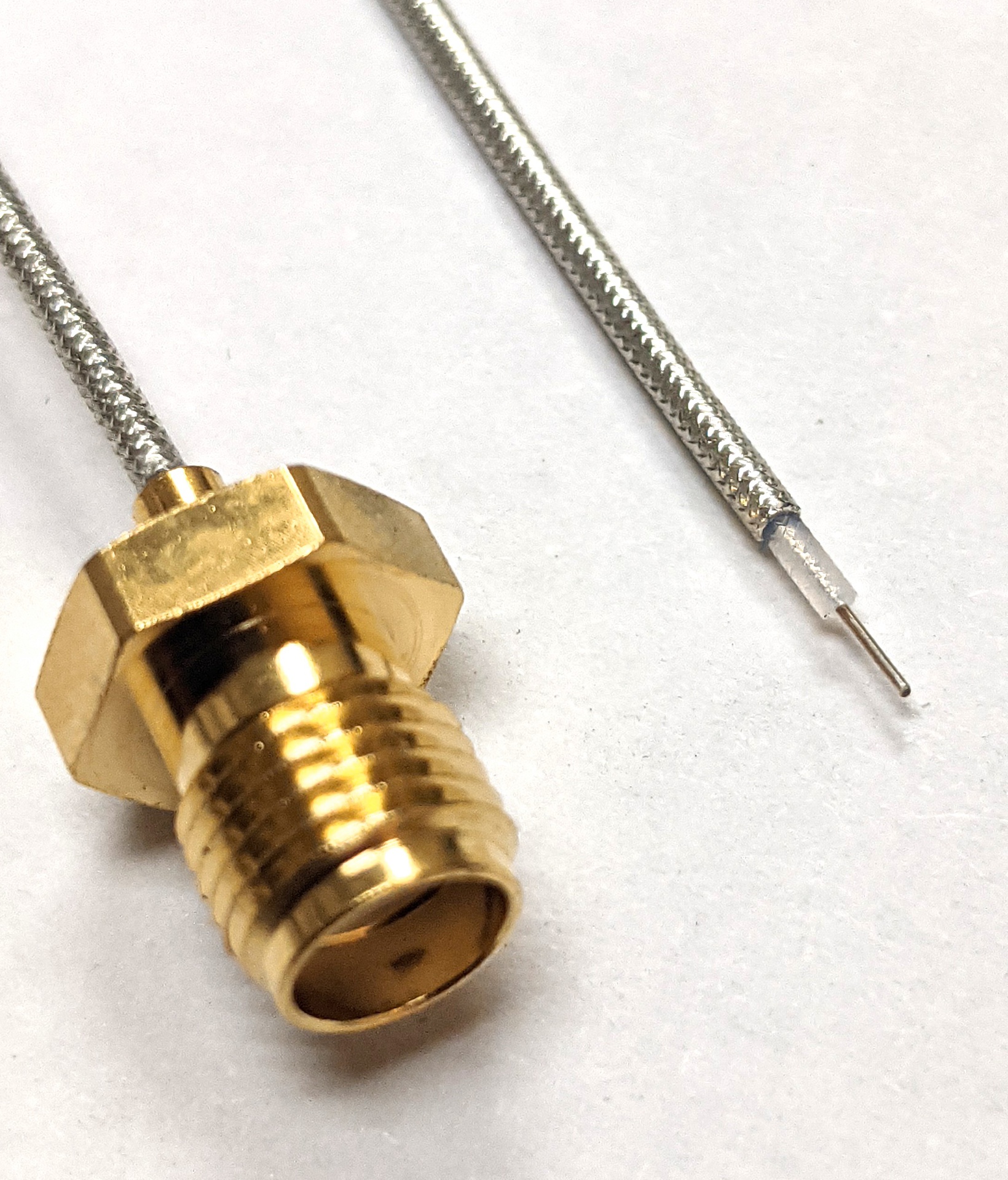

P1CA-SAFPT-047CC-4-TR is an RF Test Probe that is part of P1dB's semi-rigid, conformable, jacketed conformable and flexible Pigtail assembly series. It is a 4 inch SMA Female to a Pigtail and formable cable assembly using .047 inch diameter cable. The cable end is trimmed with an exposed dielectric 0.100 inch long and exposed center contact 0.100 inch long.
The Pigtail cable assembly operates to 6 GHz and is a popular solution for in-circuit RF probe testing.
