P1CA-SAFPT-047SR-10
Pigtail Cables from P1dB

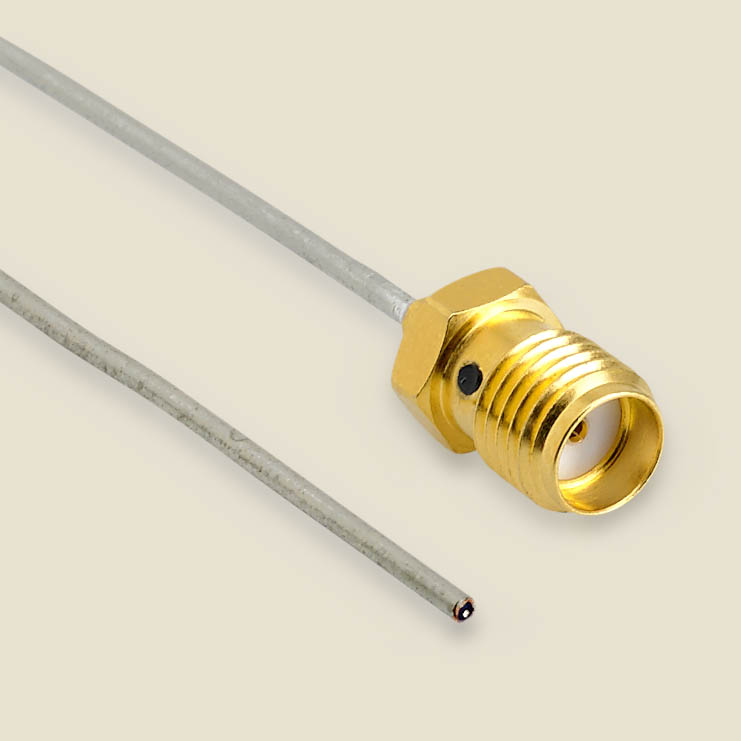

SMA Female to Pigtail (no connector) cable assembly using .047 Semi-Rigid Coax, 10 inch
Specifications |
Part Number:
P1CA-SAFPT-047SR-10
|
Status:
|
Datasheet:
|
RoHS Compliance:
Yes
|
Connector 1:
SMA Female
|
Connector 2:
Pigtail - No Connector
|
Cable Type:
047SR
|
Cable_Feature:
Semi-Rigid
|
Length (in):
10.0
|
Outer Diameter (in):
0.047
|
Max. Frequency (GHz):
6.0
|
Data.F1:
1.0
|
Data.F2:
3.0
|
Data.F3:
5.0
|
IL1:
0.34
|
IL2:
0.58
|
IL3:
0.79
|
VoP:
70.0
|
ConnNut1:
None
|
ConnBody1:
Gold Plated Brass
|
ConnContact1:
Gold Plated Beryllium Copper
|
InnerCond:
SPCW
|
Dielectric Material:
PTFE
|
JacketMat:
None
|
MinBend:
0.05
|
OpTmpMin:
-55.0
|
OpTmpMax:
150.0
|
Shield1:
Tinned Copper
|
P1CA-SAFPT-047SR-10 is an RF Test Probe that is part of P1dB's semi-rigid Pigtail assembly series. It is a 10 inch SMA Female to a Pigtail Semi-Rigid cable assembly that utilizes 047SR conformable coax with a diameter of 0.047 inches. The Pigtail cable assembly operates to 6 GHz and is a popular solution for in-circuit RF probe testing.
