P1CA-SAFPT-047SR-3
Pigtail Cables from P1dB

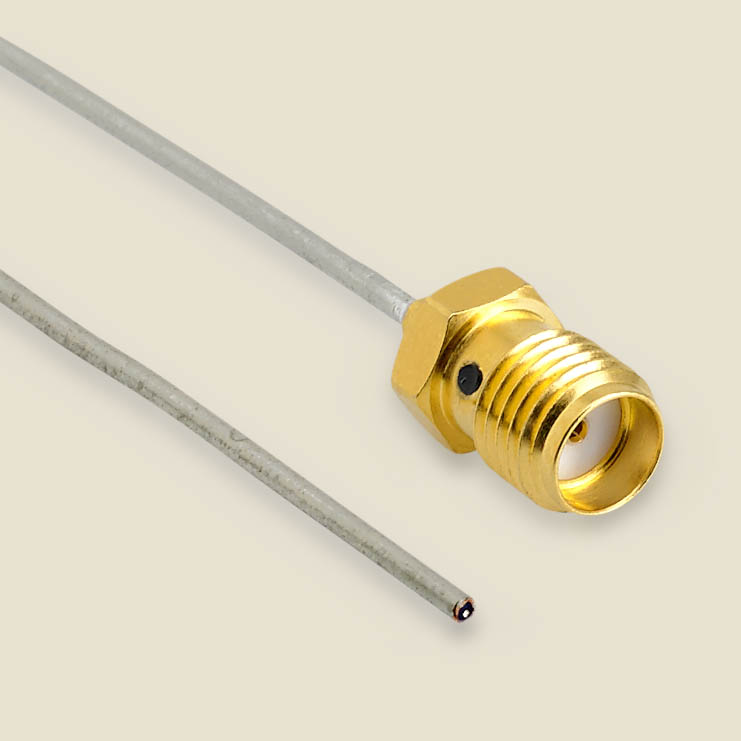

SMA Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 3 inches long, Operating to 6 GHz.
| Specifications |
|
Part Number:
P1CA-SAFPT-047SR-3
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Female
|
|
Connector 2:
Pigtail - No Connector
|
|
Cable Type:
047SR
|
|
Cable_Feature:
Semi-Rigid
|
|
Length (in):
3.0
|
|
Outer Diameter (in):
0.047
|
|
Max. Frequency (GHz):
6.0
|
|
Data.F1:
1.0
|
|
Data.F2:
3.0
|
|
Data.F3:
5.0
|
|
IL1:
0.34
|
|
IL2:
0.58
|
|
IL3:
0.79
|
|
VoP:
70.0
|
|
ConnNut1:
None
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Beryllium Copper
|
|
InnerCond:
SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
None
|
|
MinBend:
0.05
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
150.0
|
|
Shield1:
Tinned Copper
|
P1CA-SAFPT-047SR-3 is an RF Test Probe that is part of P1dB's semi-rigid, conformable, jacketed conformable and flexible Pigtail assembly series. It is a 3 inch SMA Female to a Pigtail Semi-Rigid cable assembly that utilizes 047SR conformable coax with a diameter of 0.047 inches. The Pigtail cable assembly operates to 6 GHz and is a popular solution for in-circuit RF probe testing.
