P1CA-SAMRASAFB-141CJ-24
Low cost hand formable cables from P1dB

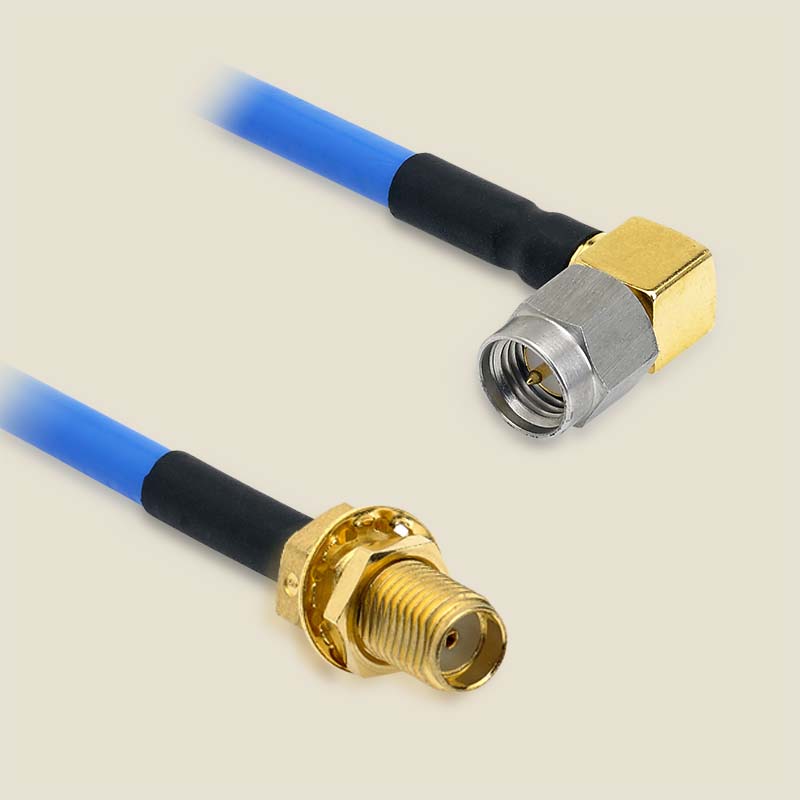

Cable Assembly, SMA Right Angle Male to SMA Bulkhead Female, 141CJ Jacketed Conformable Coax, 24 inches
| Specifications |
|
Part Number:
P1CA-SAMRASAFB-141CJ-24
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Female
|
|
Cable Type:
141CJ
|
|
Cable_Feature:
Conformable, Jacketed
|
|
Length (in):
24.0
|
|
Outer Diameter (in):
0.161
|
|
Max. Frequency (GHz):
18.0
|
|
Conn1_Type (Angle, Mount):
Right Angle
|
|
Conn2_Type (Angle, Mount):
Bulkhead
|
P1CA-SAMRASAFB-141CJ-24 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 24 inch SMA Male Right Angle to SMA Female Bulkhead Conformable cable assembly with 0.141 conformable jacketed coax with a diameter of 0.160 inches. The RF cable assembly operates to 18 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.
