P1CA-SAMRASAFB-141CJ-6

Low cost hand formable cables from P1dB

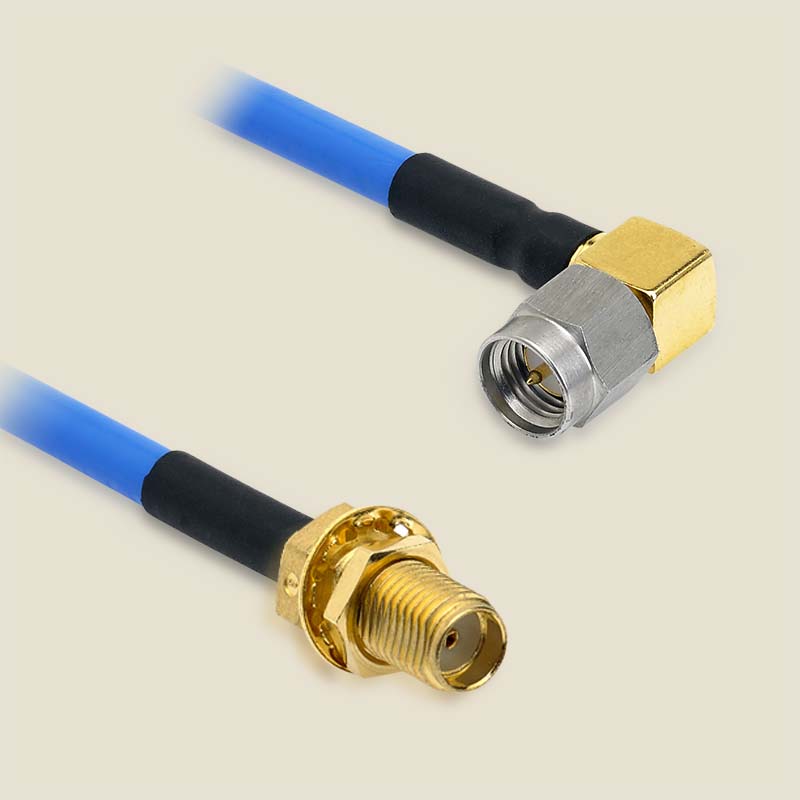

Cable Assembly, SMA Right Angle Male to SMA Bulkhead Female, 141CJ Jacketed Conformable Coax, 6 inches

Specifications
Part Number:
P1CA-SAMRASAFB-141CJ-6
Status:
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Female
Cable Type:
141CJ
Cable_Feature:
Conformable, Jacketed
Length (in):
6.0
Outer Diameter (in):
0.161
Max. Frequency (GHz):
18.0
Conn1_Type (Angle, Mount):
Right Angle
Conn2_Type (Angle, Mount):
Bulkhead

P1CA-SAMRASAFB-141CJ-6 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 6 inch SMA Male Right Angle to SMA Female Bulkhead Conformable cable assembly with 0.141 conformable jacketed coax with a diameter of 0.160 inches. The RF cable assembly operates to 18 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

15.95 15.95 15.950000000000001 USD

15.95

Pricelist
Min. Qty
Price
  • 1
    $ 15.95
  • 10
    $ 15.45
In Stock:20.0
