P1CA-SAMRASPFRA-SS085-18
SMP and SMPM from P1dB

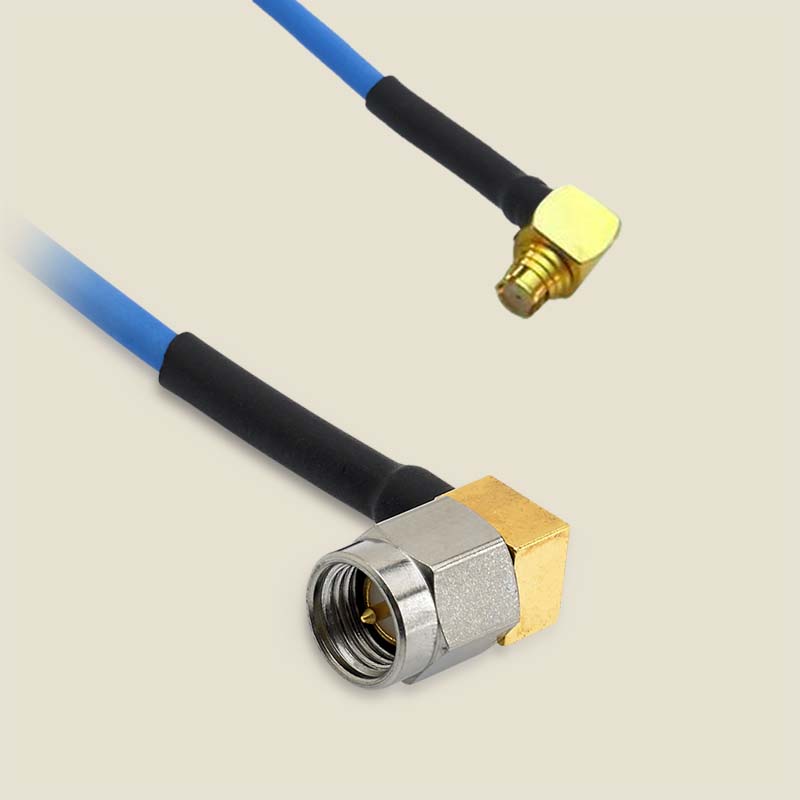

SMA Male Right Angle to SMP Female Right Angle RF flex cable using SS085 High Performance Coax, 18 inches long, Operating to 18 GHz.
| Specifications |
|
Part Number:
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
No
|
|
Connector 1:
SMA Male Right Angle
|
|
Connector 2:
SMP Female Right Angle
|
|
Cable Type:
SS085
|
|
Cable_Feature:
High Performance
|
|
Length (in):
18.0
|
|
Outer Diameter (in):
0.104
|
|
Max. Frequency (GHz):
18.0
|
|
Data.F1:
1.0
|
|
Data.F2:
5.0
|
|
Data.F3:
10.0
|
|
Data.F4:
18.0
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.3
|
|
VSWR4:
1.35
|
|
IL1:
0.23
|
|
IL2:
0.52
|
|
IL3:
0.8
|
|
IL4:
1.1
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Passivated Stainless Steel
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Gold Plated Beryllium Copper
|
|
ConnBody2:
Gold Plated Beryllium Copper
|
|
ConnContact2:
Gold Plated Beryllium Copper
|
|
InnerCond:
SPC
|
|
Dielectric Material:
PTFE
|
|
Shield2:
SPC Braid
|
|
JacketMat:
FEP
|
|
MinBend:
0.25
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
200.0
|
|
Shield1:
SPC Ribbon
|
Qty:
in Unit(s)
