P1CA-SAMSAF-141CC-20

Low cost hand formable cables from P1dB

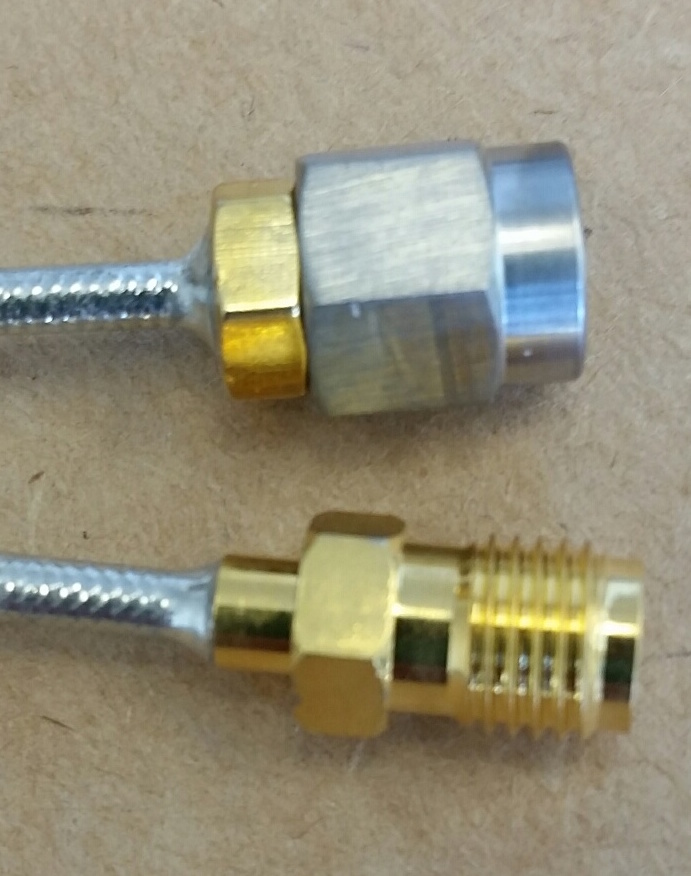

Cable Assembly, SMA Male to SMA Female, 141CC Conformable Coax, 20 inches

Specifications
Part Number:
P1CA-SAMSAF-141CC-20
Status:
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Female
Cable Type:
141CC
Cable_Feature:
Conformable
Length (in):
20.0
Outer Diameter (in):
0.141
Max. Frequency (GHz):
27.0

P1CA-SAMSAF-141CC-20 is an RF Cable in P1dB's YouForm™ conformable cable assembly series. It is a 20 inch SMA male to SMA female Conformable cable assembly that utilizes 141CC conformable coax with a diameter of 0.141 inches. The RF cable assembly operates to 26.5 GHz with a max VSWR of 1.35:1.

YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 26.5 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

19.95 19.95 19.95 USD

19.95

Pricelist
Min. Qty
Price
  • 1
    $ 19.95
  • 10
    $ 18.95
In Stock:19.0
