P1CA-SAMSAM-085CC-3

Low cost hand formable cables from P1dB

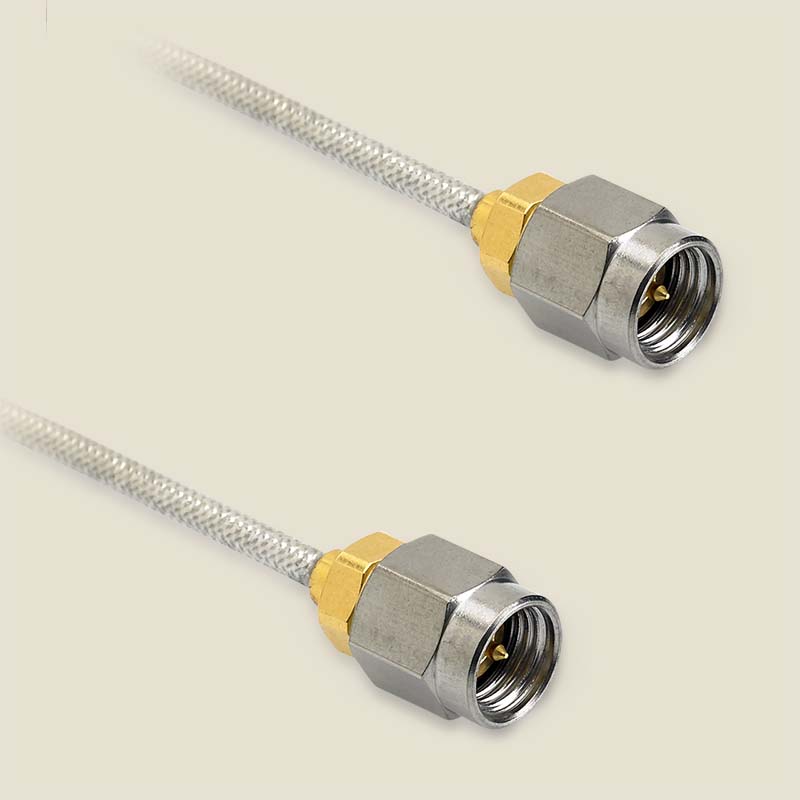

SMA Male to SMA Male cable assembly using 085CC Conformable Coax, 3 inch, frequency to 26.5 GHz.

Specifications
Part Number:
P1CA-SAMSAM-085CC-3
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
085CC
Cable_Feature:
Conformable
Length (in):
3.0
Outer Diameter (in):
0.085
Max. Frequency (GHz):
26.5
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
26.0
VSWR1:
1.25
VSWR2:
1.3
VSWR3:
1.32
VSWR4:
1.35
IL1:
0.22
IL2:
0.49
IL3:
0.83
IL4:
1.18
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
SPCW
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.38
OpTmpMin:
-85.0
OpTmpMax:
165
Shield1:
Tinned Cu/Sn Braid

P1CA-SAMSAM-085CC-3 is a 3 inch SMA Male to SMA Male conformable cable assembly, 085CC hand formable coax (no jacket) with a diameter of 0.085 inches. The RF cable assembly operates to 26.5 GHz with a max VSWR of 1.35:1.



Qty: in Unit(s)

13.95 13.95 13.950000000000001 USD

13.95

Pricelist
Min. Qty
Price
In Stock:11.0
