P1CA-SAMSAM-085CC-4
Low cost hand formable cables from P1dB

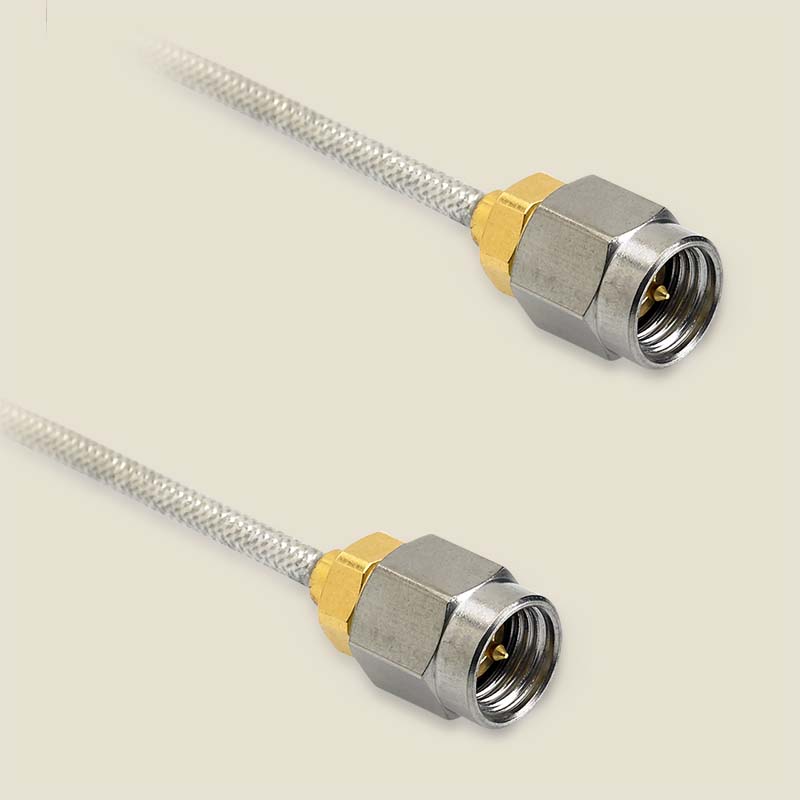

SMA Male to SMA Male cable assembly using 085CC Conformable Coax, 4 inches long, Operating to 26.5 GHz.
| Specifications |
|
Part Number:
P1CA-SAMSAM-085CC-4
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male
|
|
Cable Type:
085CC
|
|
Cable_Feature:
Conformable
|
|
Length (in):
4.0
|
|
Outer Diameter (in):
0.085
|
|
Max. Frequency (GHz):
26.5
|
|
Data.F1:
1.0
|
|
Data.F2:
5.0
|
|
Data.F3:
10.0
|
|
Data.F4:
26.5
|
|
VSWR1:
1.25
|
|
VSWR2:
1.3
|
|
VSWR3:
1.32
|
|
VSWR4:
1.35
|
|
IL1:
0.22
|
|
IL2:
0.49
|
|
IL3:
0.83
|
|
IL4:
1.18
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Passivated Stainless Steel
|
|
ConnBody2:
Gold Plated Brass
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
FEP
|
|
MinBend:
0.38
|
|
OpTmpMin:
-85.0
|
|
OpTmpMax:
200.0
|
|
Shield1:
Tinned Cu/Sn Braid
|
P1CA-SAMSAM-085CC-4 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 4 inch SMA Male to SMA Male Conformable cable assembly that utilizes 085CC conformable coax with a diameter of 0.085 inches. The RF cable assembly operates to 26.5 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 26.5 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.
