P1CA-SAMSAM-195TM-18
High Performance Cables from P1dB
Cable Assembly, SMA Male to SMA Male, 195TM Phase Stable Coax, 18 inches. DC to 18 Ghz. Limited to stock on hand.
| Specifications |
|
Part Number:
P1CA-SAMSAM-195TM-18
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male
|
|
Cable Type:
195TM
|
|
Cable_Feature:
Test Grade
|
|
Length (in):
18.0
|
|
Outer Diameter (in):
0.195
|
|
Max. Frequency (GHz):
18.0
|

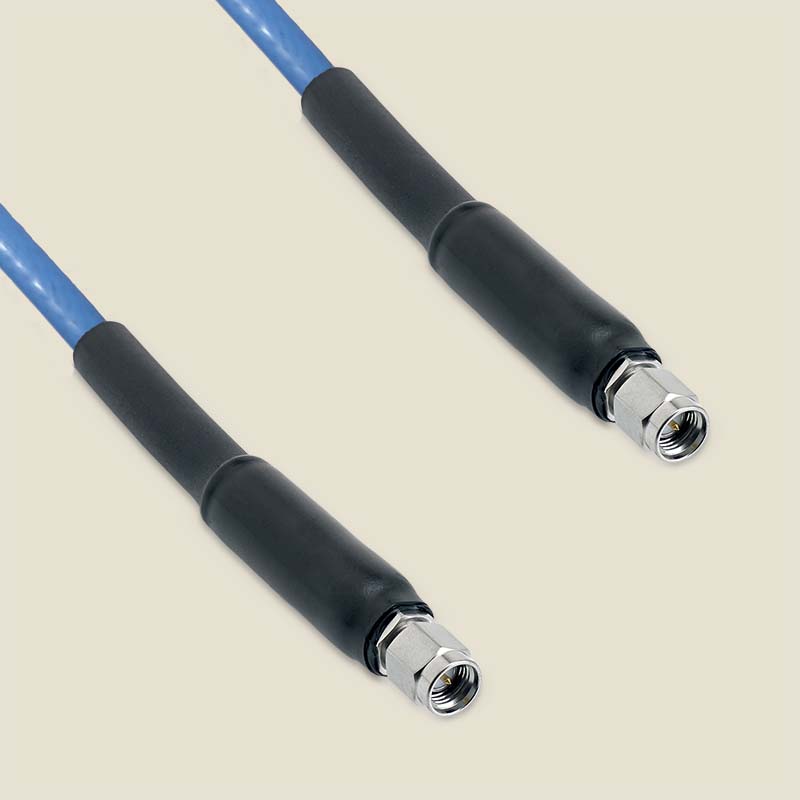

P1CA-SAMSAM-195TM-18 is a 50 Ohm flexible test cable, 0.195 inch outer diameter, operating to 18 GHz. This assembly is a low loss, phase stable cable with precision stainless steel SMA male to SMA male connectors, 18 inches long. Triple shield design for high RF isolation and microporous dielectric for low insertion loss. Enhanced cable-to-connector boot extends the operating life of this rugged test cable.
Typical insertion loss at 18 Ghz is 0.68 dB/ ft. Velocity of propagation is 70%. Maximum VSWR is 1.30 to 18 GHz.
Phase stability vs. flexure is +/- 2 degrees to 18 GHz.
