P1CA-SAMSAM-RD316-72

Flexible Cables, RG-style from P1dB

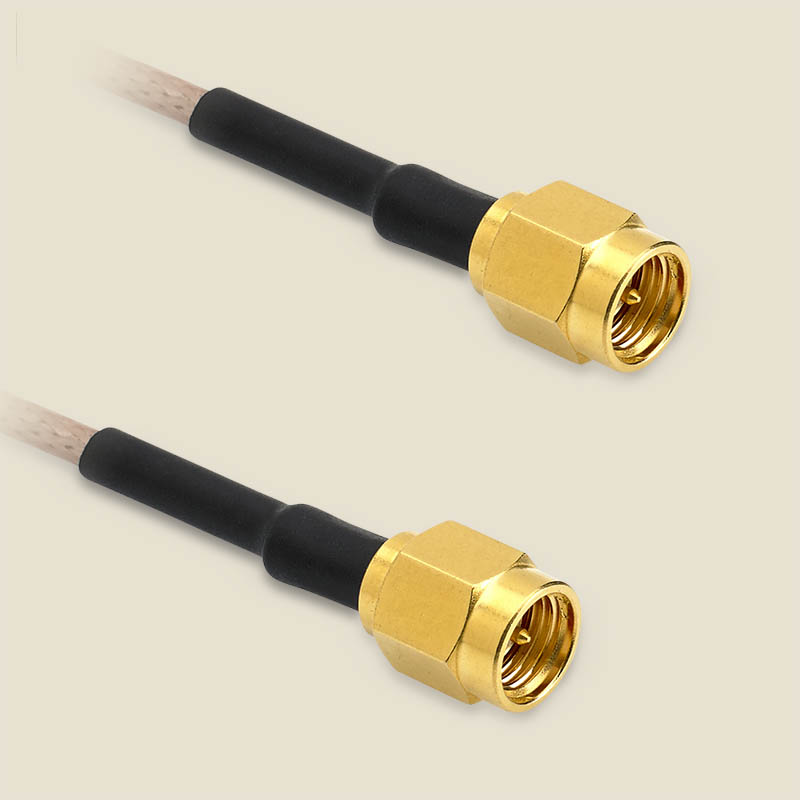

SMA Male to SMA Male cable assembly, RD316 , 72 inch.

Specifications
Part Number:
P1CA-SAMSAM-RD316-72
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
RD316
Cable_Feature:
Double-Shielded RG Type Flex
Length (in):
72.0
Outer Diameter (in):
0.114
Max. Frequency (GHz):
6.0
Data.F1:
0.4
Data.F2:
1.0
Data.F3:
2.4
Data.F4:
0.5
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
IL1:
0.18
IL2:
0.31
IL3:
0.49
IL4:
0.67
VoP:
69.5
ConnNut1:
Gold Plated Brass
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Gold Plated Brass
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
7/.0067 SPCW
Dielectric Material:
PTFE
Shield2:
SPC Braid
JacketMat:
FEP
MinBend:
0.6
OpTmpMin:
-55.0
OpTmpMax:
125.0
Shield1:
SPC Braid

P1CA-SAMSAM-RD316-72 is a 50 Ohm RF cable asssembly, RD316 double shield flex cable, SMA Male to SMA Male, 72 inch .

RD316 Double-Shielded RG Type Flex coax has an outer diameter of 0.114 inch. Frequency is DC to 6 GHz with a max VSWR of 1.35:1

Qty: in Unit(s)

32.95 32.95 32.95 USD

32.95

Pricelist
Min. Qty
Price
  • 1
    $ 32.95
  • 10
    $ 29.95
In Stock:10.0
