P1CA-SAMSAM-RG316-40

Flexible Cables, RG-style from P1dB

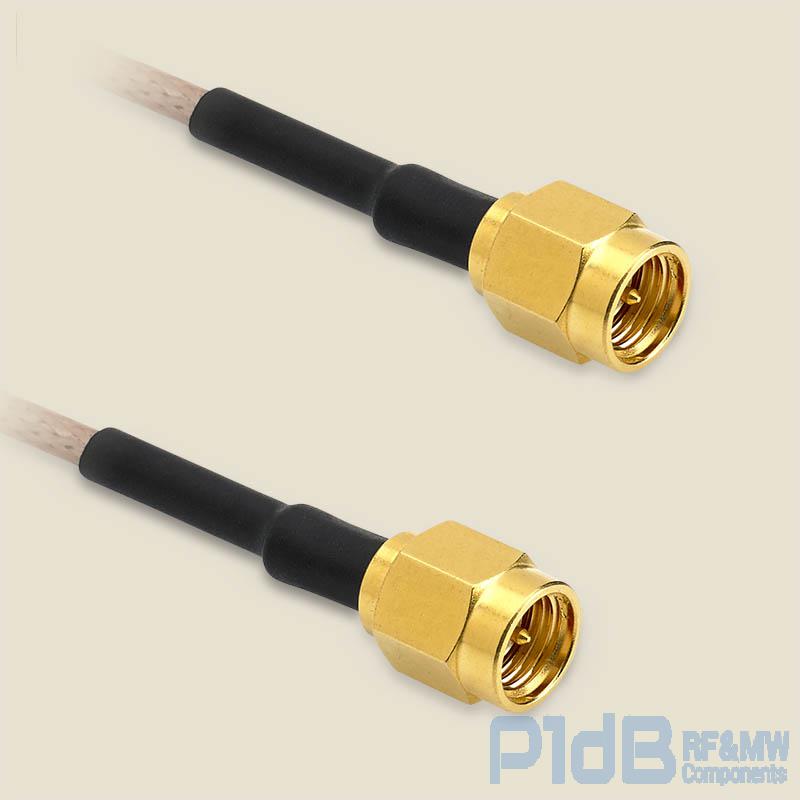

SMA Male to SMA Male cable using RG-316 RG Type Flex Coax, 40 inch. Frequency DC to 6 GHz.

Specifications
Part Number:
P1CA-SAMSAM-RG316-40
Status:
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
RG-316
Cable_Feature:
RG Type Flex
Length (in):
40.0
Outer Diameter (in):
0.098
Max. Frequency (GHz):
6.0
Data.F1:
0.4
Data.F2:
1.0
Data.F3:
2.4
Data.F4:
0.5
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
IL1:
0.18
IL2:
0.31
IL3:
0.49
IL4:
0.67
VoP:
69.5
ConnNut1:
Gold Plated Brass
ConnBody1:
Gold Plated Brass
ConnContact1:
Gold Plated Brass
ConnNut2:
Gold Plated Brass
ConnBody2:
Gold Plated Brass
ConnContact2:
Gold Plated Brass
InnerCond:
7/.0067 SPCW
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.5
Qty: in Unit(s)

26.95 26.95 26.95 USD

26.95

In Stock:39.0
