P1CA-SAMSAM-RG58-48
Flexible Cables, RG-style from P1dB

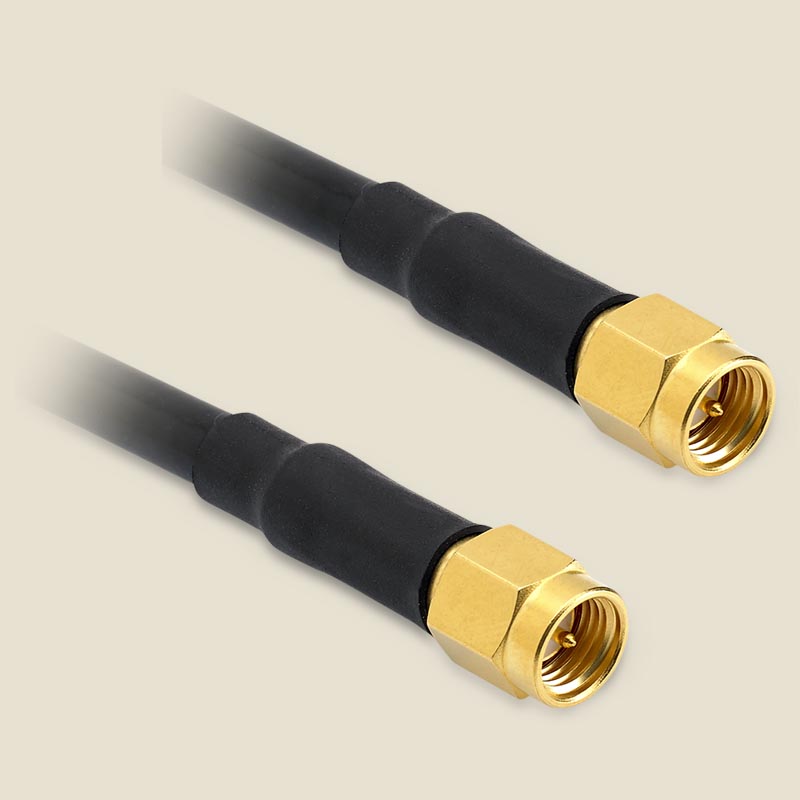

SMA Male to SMA Male cable using RG-58 RG Type Flex Coax, 48 inches long, and Operating to 6 GHz.
| Specifications |
|
Part Number:
P1CA-SAMSAM-RG58-48
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male
|
|
Cable Type:
RG-58
|
|
Cable_Feature:
RG Type Flex
|
|
Length (in):
48.0
|
|
Outer Diameter (in):
0.195
|
|
Max. Frequency (GHz):
6.0
|
|
Data.F1:
0.1
|
|
Data.F2:
0.4
|
|
Data.F3:
1.0
|
|
Data.F4:
5.0
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.3
|
|
VSWR4:
1.35
|
|
IL1:
0.05
|
|
IL2:
0.1
|
|
IL3:
0.18
|
|
IL4:
0.6
|
|
VoP:
65.9
|
|
ConnNut1:
Gold Plated Brass
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Tin-Zinc-Copper-Alloy Plated Brass
|
|
ConnBody2:
Tin-Zinc-Copper-Alloy Plated Brass
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
TPC 19/.0072
|
|
Dielectric Material:
PE
|
|
JacketMat:
PVC
|
|
MinBend:
1.0
|
|
OpTmpMin:
-40.0
|
|
OpTmpMax:
80.0
|
|
Shield1:
TPC Briad
|
P1CA-SAMSAM-RG58-48 is a cable that is part of P1dB's RG series flex cable assemblies. It is a 48 inch SMA Male to SMA Male cable assembly that utilizes RG-58 RG Type Flex coax, which is 0.195 inches in diameter. This RG Type Flex cable operates to 6 GHz with a max VSWR of 1.35:1. P1dB's RG Type Flex cable assemblies are general purpose commercial grade cables that meet dimensional and electrical specifications of QPL cables. RG Type Flex cables can operate up to 6 GHz, depending on the installed connectors. The advantage of RG type commercial cables over QPL cables is their lower cost, since they do not go through the stringent environmental, mechanical and certification testing required for military grade, QPL equivalents.
