P1CA-SAMSAM-SS141-12-PM
Phase Matched Cables from P1dB

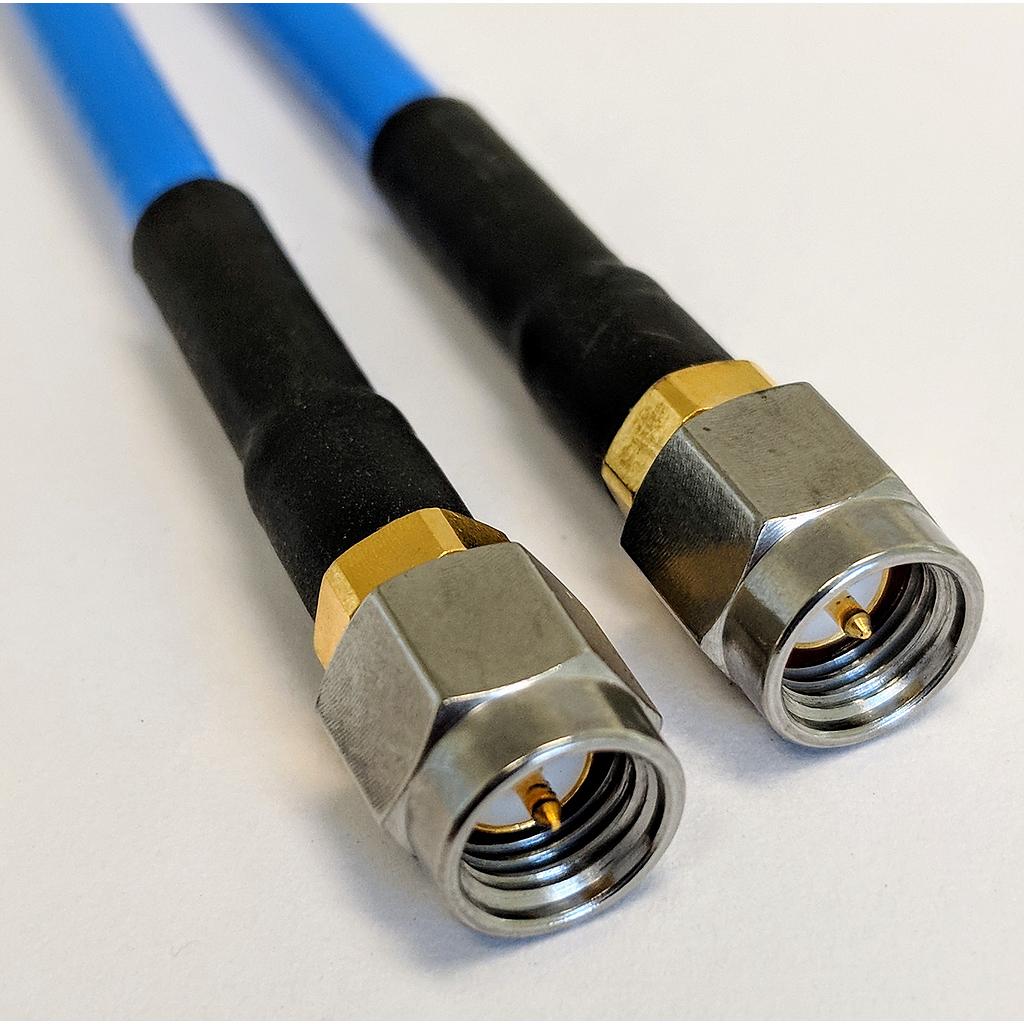

RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 12 inch. Supplied as a phase matched cable pair (2 cables minimum buy). Order in multiples of 2 (2,4,6,etc.). Price is per cable. Cable pairs matched +/- 5 degrees at 10 GHz, operating to 18 GHz. Test data included with each cable.
| Specifications |
|
Part Number:
P1CA-SAMSAM-SS141-12-PM
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male
|
|
Cable Type:
SS141
|
|
Cable_Feature:
High Performance
|
|
Length (in):
12.0
|
|
Outer Diameter (in):
0.163
|
|
Max. Frequency (GHz):
18.0
|
|
Data.F1:
1.0
|
|
Data.F2:
10.0
|
|
Data.F3:
18.0
|
|
VSWR1:
1.1
|
|
VSWR2:
1.2
|
|
VSWR3:
1.25
|
|
IL1:
0.13
|
|
IL2:
0.45
|
|
IL3:
0.64
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Passivated Stainless Steel
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Passivated Stainless Steel
|
|
ConnBody2:
Passivated Stainless Steel
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
SPC
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
FEP
|
|
MinBend:
0.8
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
125.0
|
|
Shield1:
SPC Braid, SPC Ribbon
|
