P1CA-SAMSAM-SS141-60-PM

Phase Matched Cables from P1dB

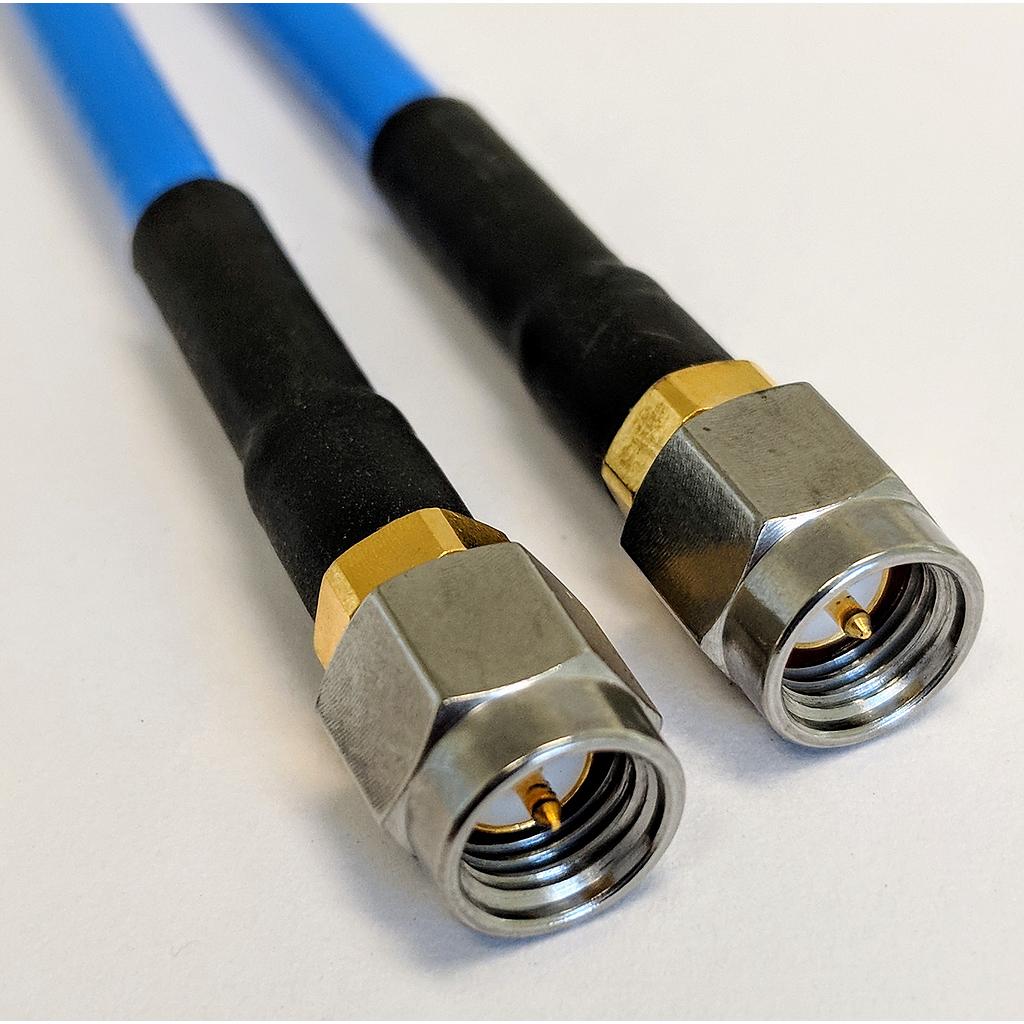

RF cable assembly, SMA Male to SMA Male, SS141 flexible coaxial cable, 60 inch. Supplied as TBD # of cables phase matched +/- 5 degrees at 10 GHz, operating to 18 GHz.

Specifications
Part Number:
P1CA-SAMSAM-SS141-60-PM
Status:
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMA Male
Cable Type:
SS141
Cable_Feature:
High Performance
Length (in):
60.0
Outer Diameter (in):
0.163
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
10.0
Data.F3:
18.0
VSWR1:
1.1
VSWR2:
1.2
VSWR3:
1.25
IL1:
0.13
IL2:
0.45
IL3:
0.64
VoP:
70.0
ConnNut1:
Passivated Stainless Steel
ConnBody1:
Passivated Stainless Steel
ConnContact1:
Gold Plated Brass
ConnNut2:
Passivated Stainless Steel
ConnBody2:
Passivated Stainless Steel
ConnContact2:
Gold Plated Brass
InnerCond:
SPC
Dielectric Material:
PTFE
JacketMat:
FEP
MinBend:
0.8
OpTmpMin:
-55.0
OpTmpMax:
125.0
Shield1:
SPC Braid, SPC Ribbon

P1dB's P1CA-SAMSAM-SS141-60-PM is a 50 Ohm RF cable assembly, supplied as TBD # of phase matched cables. It is an SMA male to SMA male cable using P1dB's SS141 flex coax which is a phase stable RF cable with 0.160 inch outer diameter.  This cable is 60 inches long and the cables are phase matched to 5 degrees measured at 10 GHz. Operating to 18 GHz, the P1CA-SAMSAM-SS141-60-PM is a low loss flex cable with a minimum bend radius of 0.4 inches.
Typical delivery for a set of phase matched cables is 4 weeks.

Qty: in Unit(s)

149.75 149.75 149.75 USD

149.75

Pricelist
Min. Qty
Price
  • 2
    $ 149.75
  • 10
    $ 134.68
Typical Delivery: 30.0 Days
