P1CA-SAMSAMRA-RG316-12
Flexible Cables, RG-style from P1dB

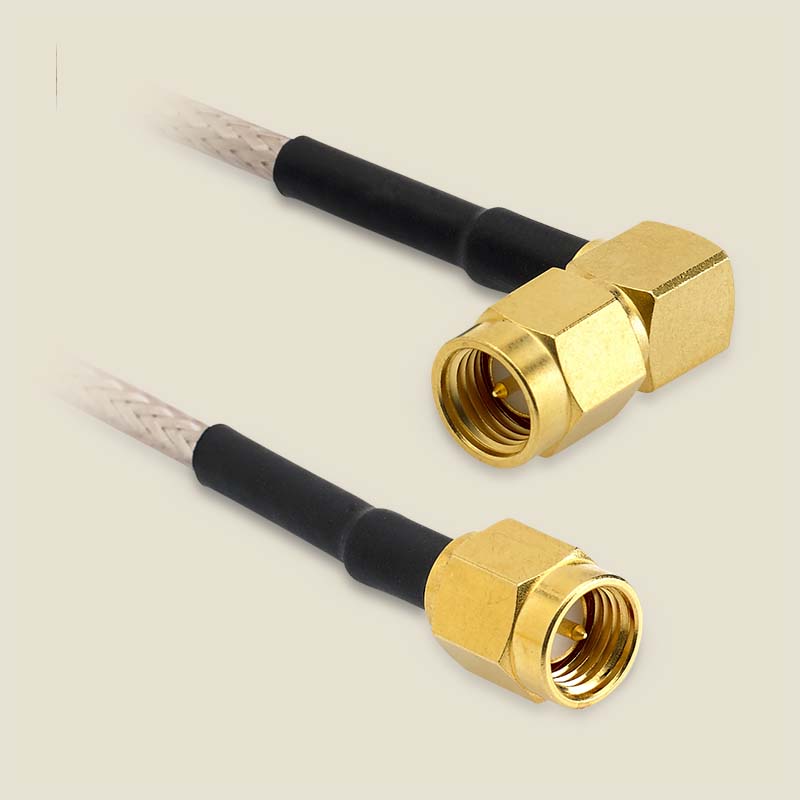

SMA Male to SMA Male Right Angle, RG316 flex cable, 12 inch. Frequency DC to 6 GHz.
| Specifications |
|
Part Number:
P1CA-SAMSAMRA-RG316-12
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male Right Angle
|
|
Cable Type:
RG-316
|
|
Cable_Feature:
RG Type Flex
|
|
Length (in):
12.0
|
|
Outer Diameter (in):
0.098
|
|
Max. Frequency (GHz):
6.0
|
|
Data.F1:
0.4
|
|
Data.F2:
1.0
|
|
Data.F3:
2.4
|
|
Data.F4:
0.5
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.3
|
|
VSWR4:
1.35
|
|
IL1:
0.18
|
|
IL2:
0.31
|
|
IL3:
0.49
|
|
IL4:
0.67
|
|
VoP:
69.5
|
|
ConnNut1:
Gold Plated Brass
|
|
ConnBody1:
Gold Plated Brass
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Gold Plated Brass
|
|
ConnBody2:
Gold Plated Brass
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
7/.0067 SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
FEP
|
|
MinBend:
0.5
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
200.0
|
|
Shield1:
SPC Braid
|
P1CA-SAMSAMRA-RG316-12 is a cable that is part of P1dB's RG series flex cable assemblies. It is a 12 inch SMA Male to SMA Male Right Angle cable assembly that utilizes RG-316 RG Type Flex coax, which is 0.098 inches in diameter. This RG Type Flex cable operates to 6 GHz with a max VSWR of 1.35:1. P1dB's RG Type Flex cable assemblies are general purpose commercial grade cables that meet dimensional and electrical specifications of QPL cables. RG Type Flex cables can operate up to 6 GHz, depending on the installed connectors. The advantage of RG type commercial cables over QPL cables is their lower cost, since they do not go through the stringent environmental, mechanical and certification testing required for military grade, QPL equivalents.
