P1CA-SAMSAMRA-RG316-14
Flexible Cables, RG-style from P1dB

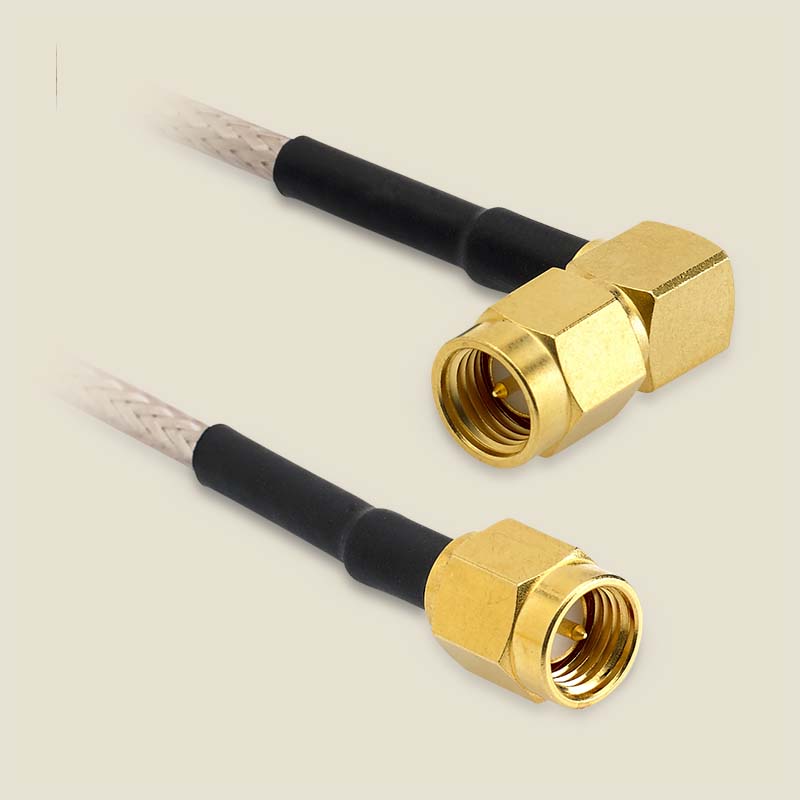

SMA Male to SMA Male Right Angle, RG316 flex cable, 14 inch. Frequency DC to 6 GHz.
| Specifications |
|
Part Number:
P1CA-SAMSAMRA-RG316-14
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male Right Angle
|
|
Cable Type:
RG-316
|
|
Length (in):
14.0
|
|
Outer Diameter (in):
0.098
|
|
MinBend:
0.5
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
125.0
|
P1CA-SAMSAMRA-RG316-14 is a cable that is part of P1dB's RG series flex cable assemblies. It is a 14 inch SMA Male to SMA Male Right Angle cable assembly that utilizes RG-316 RG Type Flex coax, which is 0.098 inches in diameter. This RG Type Flex cable operates to 6 GHz with a max VSWR of 1.35:1.
Typical Insertion Loss measured at 3 GHz is 0.6 dB for this assembly.
