P1CA-SAMSPF-085CC-6
SMP and SMPM from P1dB
Cable Assembly, SMA Male to SMP Female, 085CC Conformable Coax (no jacket) , 6 inches
| Specifications |
|
Part Number:
P1CA-SAMSPF-085CC-6
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMP Female
|
|
Cable Type:
085CC
|
|
Cable_Feature:
Conformable
|
|
Length (in):
6.0
|
|
Max. Frequency (GHz):
18.0
|

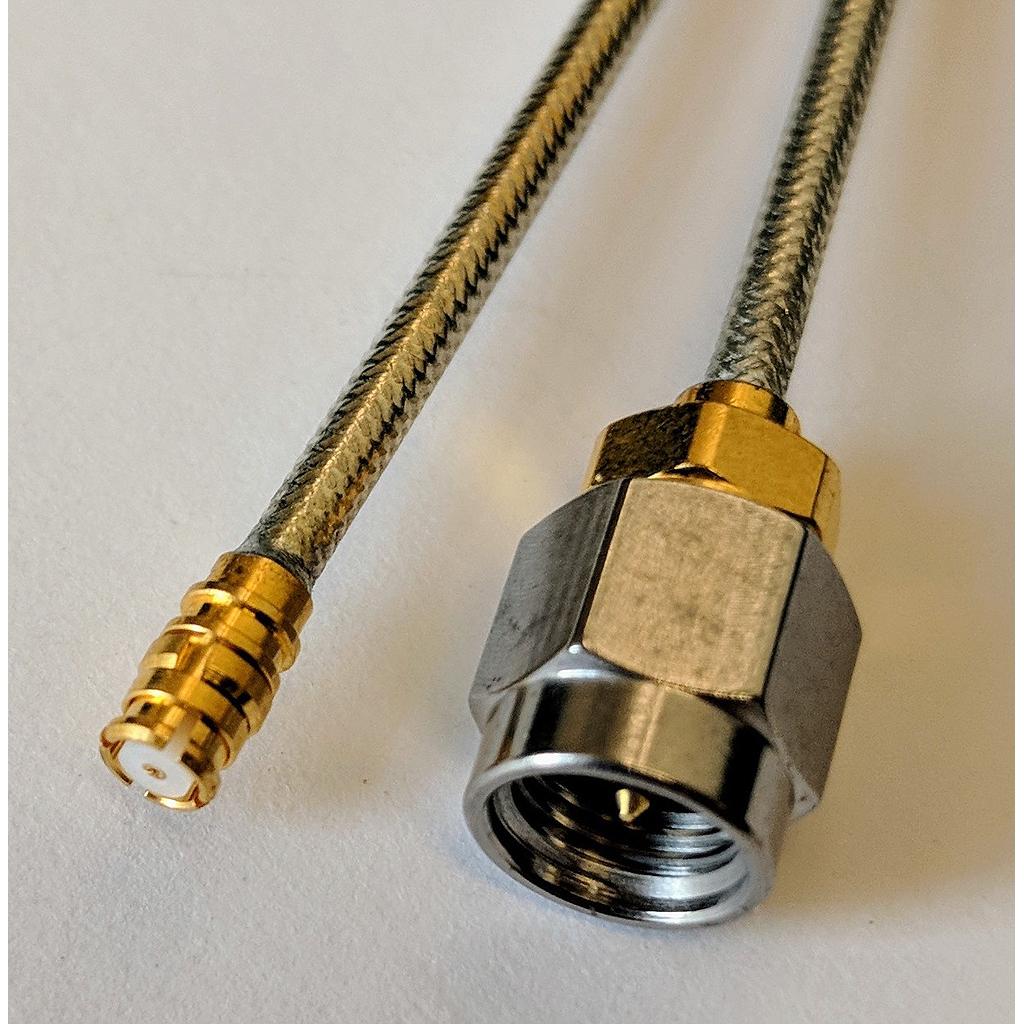

P1CA-SAMSPF-085CC-6 is an RF Cable
in P1dB's YouForm™ conformable cable assembly series.
It is a 6 inch SMA male straight to
SMP female straight Conformable cable assembly
that utilizes 085CC conformable coax
with a diameter of 0.085 inches.
The RF cable assembly operates to 18 GHz with a max VSWR of 1.35:1.
