P1CA-SAMSPF-085CC-9
SMP and SMPM from P1dB
Cable Assembly, SMA Male to SMP Female, 085CC Conformable Coax (no jacket), 9 inches
| Specifications |
|
Part Number:
P1CA-SAMSPF-085CC-9
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMP Female
|
|
Cable Type:
085CC
|
|
Cable_Feature:
Conformable
|
|
Length (in):
9.0
|
|
Max. Frequency (GHz):
18.0
|

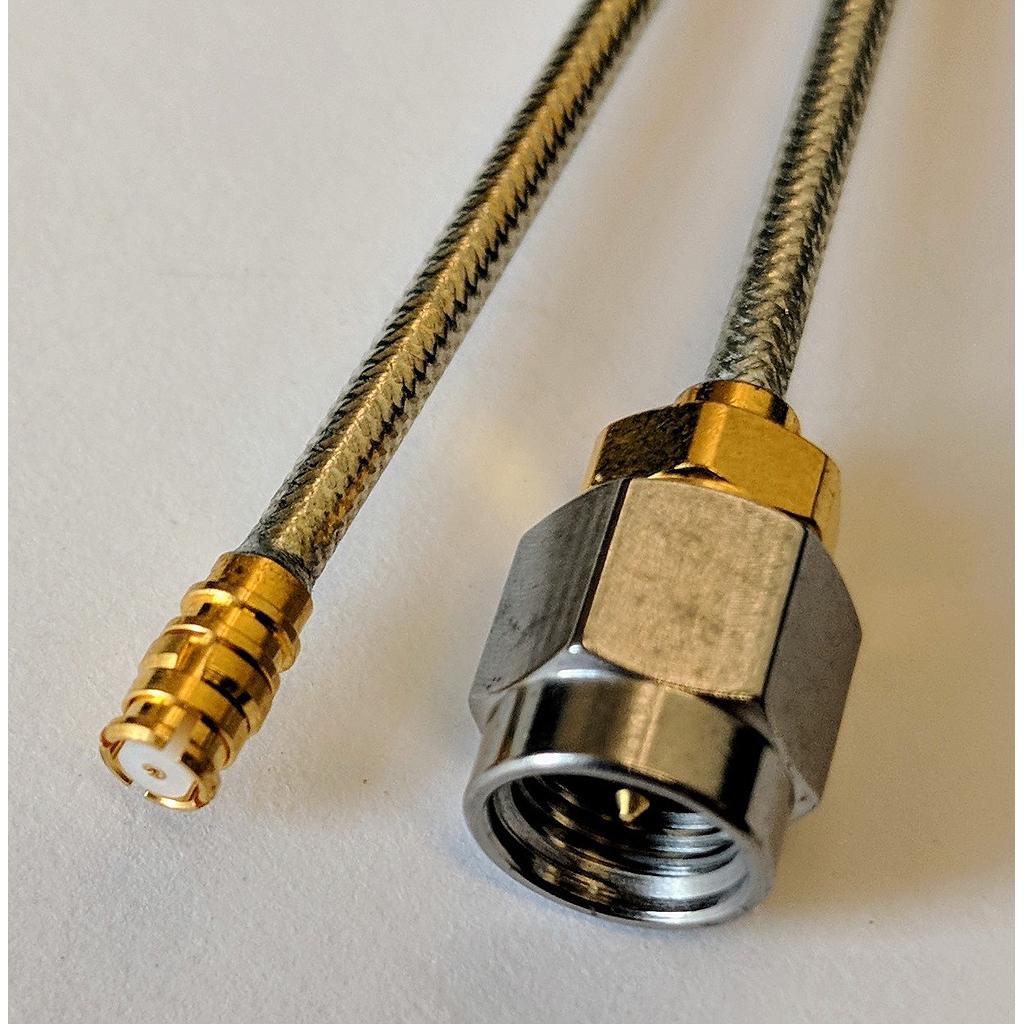

P1CA-SAMSPF-085CC-9 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 9 inch SMA Male Straight to SMP Female Straight Conformable cable assembly that utilizes 085CC conformable coax with a diameter of 0.085 inches. The RF cable assembly operates to 18 GHz with a max VSWR of 1.35:1.
YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.
