P1CA-SAMSPF-085CJ-9

SMP and SMPM from P1dB

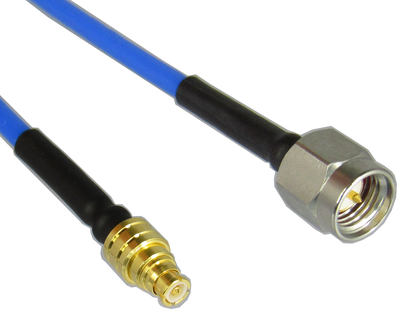

Cable Assembly, SMA Male to SMP Female, 085CJ Jacketed Conformable Coax, 9 inches

Specifications
Part Number:
P1CA-SAMSPF-085CJ-9
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SMA Male
Connector 2:
SMP Female
Cable Type:
085CJ
Cable_Feature:
Conformable, Jacketed
Length (in):
9.0
Outer Diameter (in):
0.103
Max. Frequency (GHz):
18.0

P1CA-SAMSPF-085CJ-9 is an RF Cable that is part of P1dB's YouForm™ conformable cable assembly series. It is a 9 inch SMA Male Straight to SMP Female Straight Conformable cable assembly that utilizes 085CJ conformable coax with a diameter of 0.102 inches. The RF cable assembly operates to 18 GHz with a max VSWR of 1.35:1. YouForm™ cables are conformable and jacketed conformable versions 085 and 141 semi-rigid coax cables and meet RG402 and RG405 dimensional and electrical specifications. YouForm™ cable assemblies can operate up to 18 GHz, depending on the configuration. The advantage of YouForm™ conformable cables over semi-rigid are their ability to be formed by hand multiple times, while semi-rigid cables can be formed only once with special bending tools.

Qty: in Unit(s)

24.95 24.95 24.95 USD

24.95

Pricelist
Min. Qty
Price
  • 1
    $ 24.95
  • 10
    $ 23.95
Typical Delivery: 28.0 Days
