P1CA-SMFRASMFRA-SS085-8

SMP and SMPM from P1dB

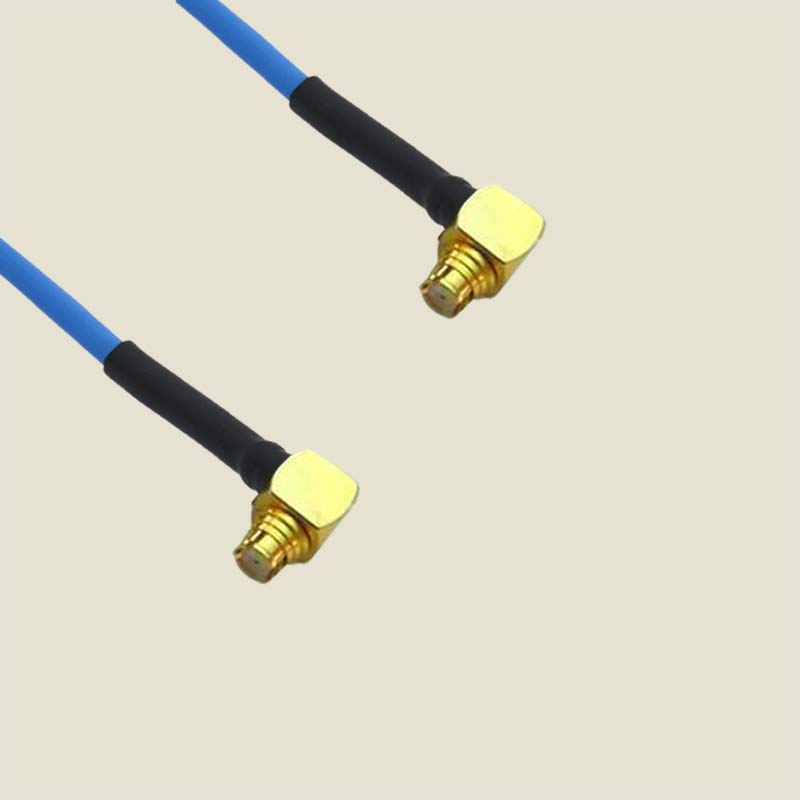

SSMP Female Right Angle to SSMP Female Right Angle RF flex cable using SS085 High Performance Coax, 8 inches long, Operating to 18 GHz.

Specifications
Part Number:
P1CA-SMFRASMFRA-SS085-8
Status:
Standard
Datasheet:
RoHS Compliance:
Yes
Connector 1:
SSMP Female Right Angle
Connector 2:
SSMP Female Right Angle
Cable Type:
SS085
Cable_Feature:
High Performance
Length (in):
8.0
Outer Diameter (in):
0.104
Max. Frequency (GHz):
18.0
Data.F1:
1.0
Data.F2:
5.0
Data.F3:
10.0
Data.F4:
18.0
VSWR1:
1.2
VSWR2:
1.25
VSWR3:
1.3
VSWR4:
1.35
IL1:
0.23
IL2:
0.52
IL3:
0.8
IL4:
1.1
VoP:
70.0
ConnNut1:
None
ConnBody1:
Gold Plated Beryllium Copper
ConnContact1:
Gold Plated Beryllium Copper
ConnNut2:
None
ConnBody2:
Gold Plated Beryllium Copper
ConnContact2:
Gold Plated Beryllium Copper
InnerCond:
SPC
Dielectric Material:
PTFE
Shield2:
SPC Braid
JacketMat:
FEP
MinBend:
0.25
OpTmpMin:
-55.0
OpTmpMax:
200.0
Shield1:
SPC Ribbon

P1CA-SMFRASMFRA-SS085-8 is an RF Flex Cable that is part of P1dB's SS085 series, high performance cable assemblies. It is a 8 inch SSMP Female Right Angle to SSMP Female Right Angle cable assembly that utilizes SS085 High Performance coax, which is 0.104 inches in diameter. The SS085 high performance flex cable operates to 18 GHz with a max VSWR of 1.35:1. P1dB's SS085 cable assemblies are high performance RF cables that are dimensionally equivalent to RG405 semi-rigid and 085 conformable coax cables, and have similar electrical specifications to RG405 coax. SS085 RF flex cables can operate up to 50 GHz, depending on the installed connectors. The advantage of SS085 test cables over other test cables are their cost-effective design that still offer good phase and amplitude stability for general purpose test systems.

Qty: in Unit(s)

48.95 48.95 48.95 USD

48.95

Pricelist
Min. Qty
Price
  • 1
    $ 48.95
  • 10
    $ 42.2
Typical Delivery: 30.0 Days
