P1CA-SMFSMFRA-F047-3.3
Ultra Miniature Cable Assemblies from P1dB

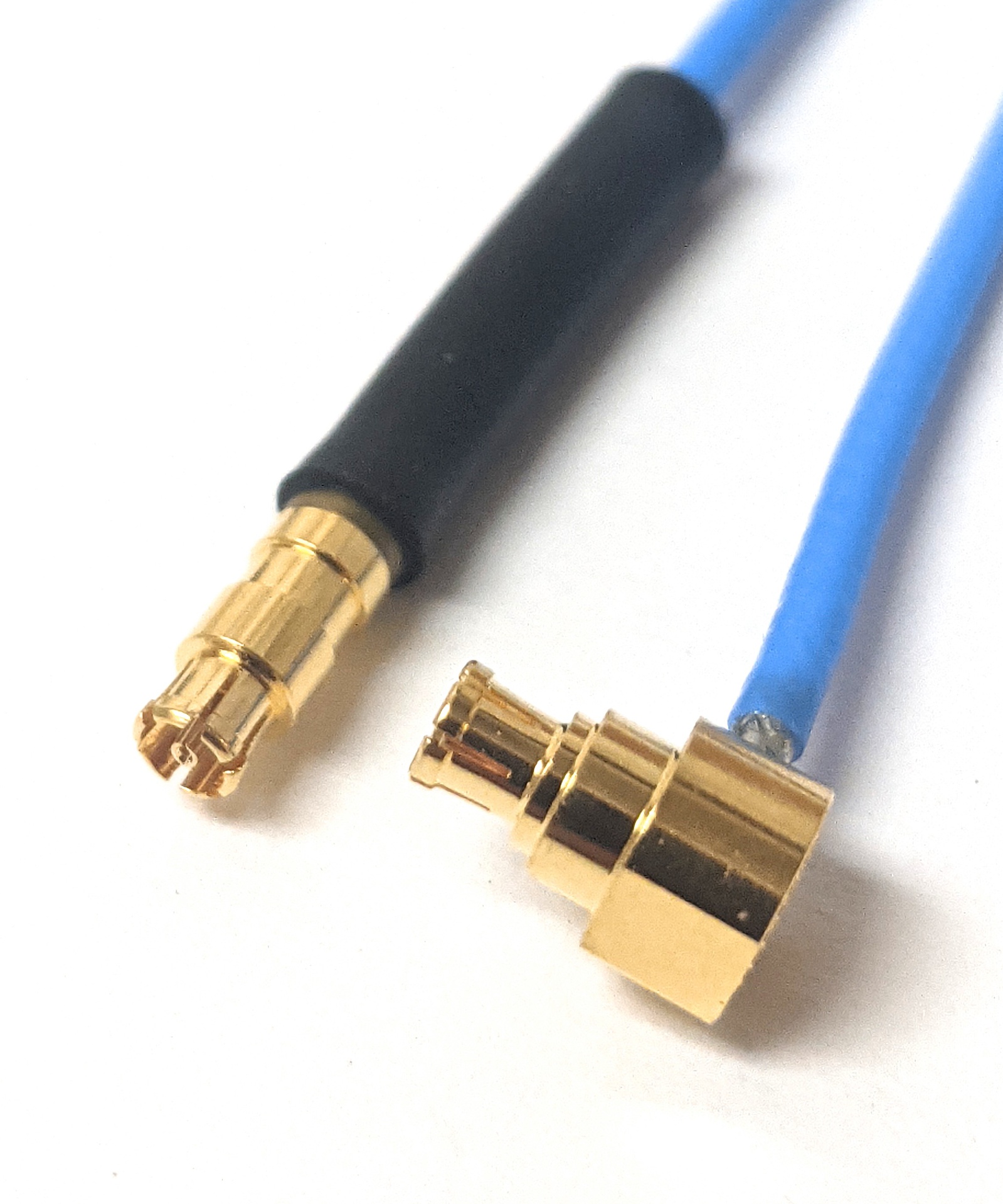

Cable Assembly, SMPM female right angle to SMPM female straight, .047 flex, 3.3 inch. Designed to mate with dual receptacle 3211-40024.
| Specifications |
|
Part Number:
P1CA-SMFSMFRA-F047-3.3
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMPM Female Right Angle
|
|
Connector 2:
SMPM Female straight
|
|
Cable Type:
F047
|
|
Length (in):
3.0
|
|
Frequency Max (GHz):
6.0
|
P1CA-SMFSMFRA-F047-3.3 is a 50 Ohm RF cable assembly, SMPM female right angle to SMPM female straight, .047 flex, 3.3 inch.
RF Tested DC to 6 GHz with a max VSWR 1.25 and Insertion Loss 0.9 dB max.
Qty:
in Unit(s)
