P1CA-STMSTM-ST085-18
Tight-Flex Cables from P1dB

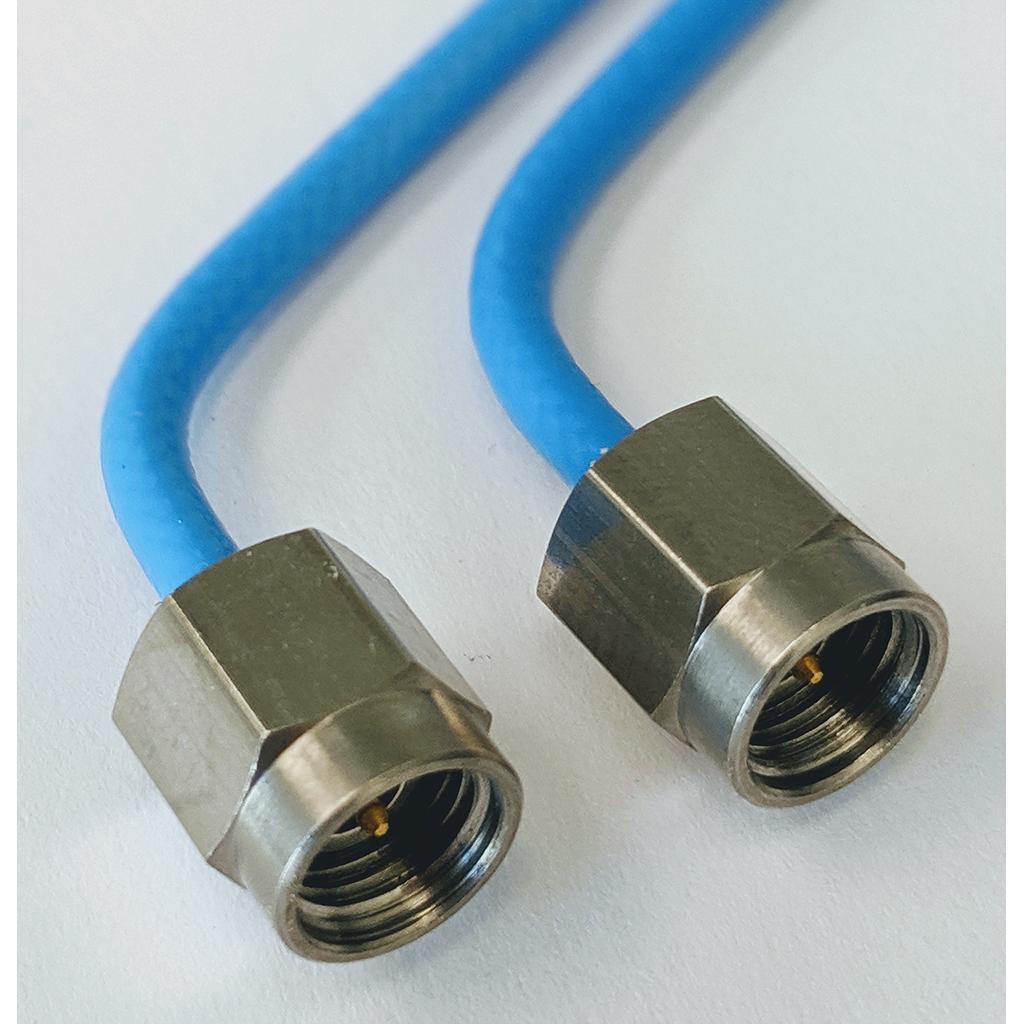

SMA Male to SMA Male cable assembly using ST085 Tight-Flex, Triple Shielded Coax, 18 inches long, Operating to 18 GHz.
| Specifications |
|
Part Number:
P1CA-STMSTM-ST085-18
|
|
Status:
Standard
|
|
Datasheet:
|
|
RoHS Compliance:
 Yes
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMA Male
|
|
Cable Type:
ST085
|
|
Cable_Feature:
Tight-Flex, Triple Shielded
|
|
Length (in):
18.0
|
|
Outer Diameter (in):
0.104
|
|
Max. Frequency (GHz):
18.0
|
|
Data.F1:
1.0
|
|
Data.F2:
5.0
|
|
Data.F3:
10.0
|
|
Data.F4:
18.0
|
|
VSWR1:
1.15
|
|
VSWR2:
1.2
|
|
VSWR3:
1.25
|
|
VSWR4:
1.3
|
|
IL1:
0.21
|
|
IL2:
0.51
|
|
IL3:
0.75
|
|
IL4:
1.04
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Passivated Stainless Steel
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Passivated Stainless Steel
|
|
ConnBody2:
Passivated Stainless Steel
|
|
ConnContact2:
Gold Plated Brass
|
|
InnerCond:
SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
FEP
|
|
MinBend:
0.2
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
200.0
|
|
Shield1:
SPC Tape, Aluminum Tape, SPC Braid
|
P1CA-STMSTM-ST085-18 is an RF Cable that is part of P1dB's Tight-Flex™ cable assembly series. With a minimum bend radius of 0.2 inch, the cable allows bends at the connector end eliminating the need for a right angle connector. This assembly a 18 inch SMA Male to SMA Male cable assembly that utilizes ST085 Tight-Flex, Triple Shielded coax, which is 0.104 inches in diameter. The Tight-Flex™ cable assembly operates to 18 GHz with a max VSWR of 1.30:1.
Tight-Flex™ cable assemblies are a flexible version of RG405 semi-rigid and 085 conformable coax cables that meet RG405 dimensional and electrical specifications. Tight-Flex™ cable assemblies can operate up to 40 GHz, depending on the installed connectors. The advantage of Tight-Flex™ cables over other 085 flex cables are their triple shielding that add additional RF stability even during tight bends.
