P1CA-STMTPF-ST085-24
SMP and SMPM from P1dB

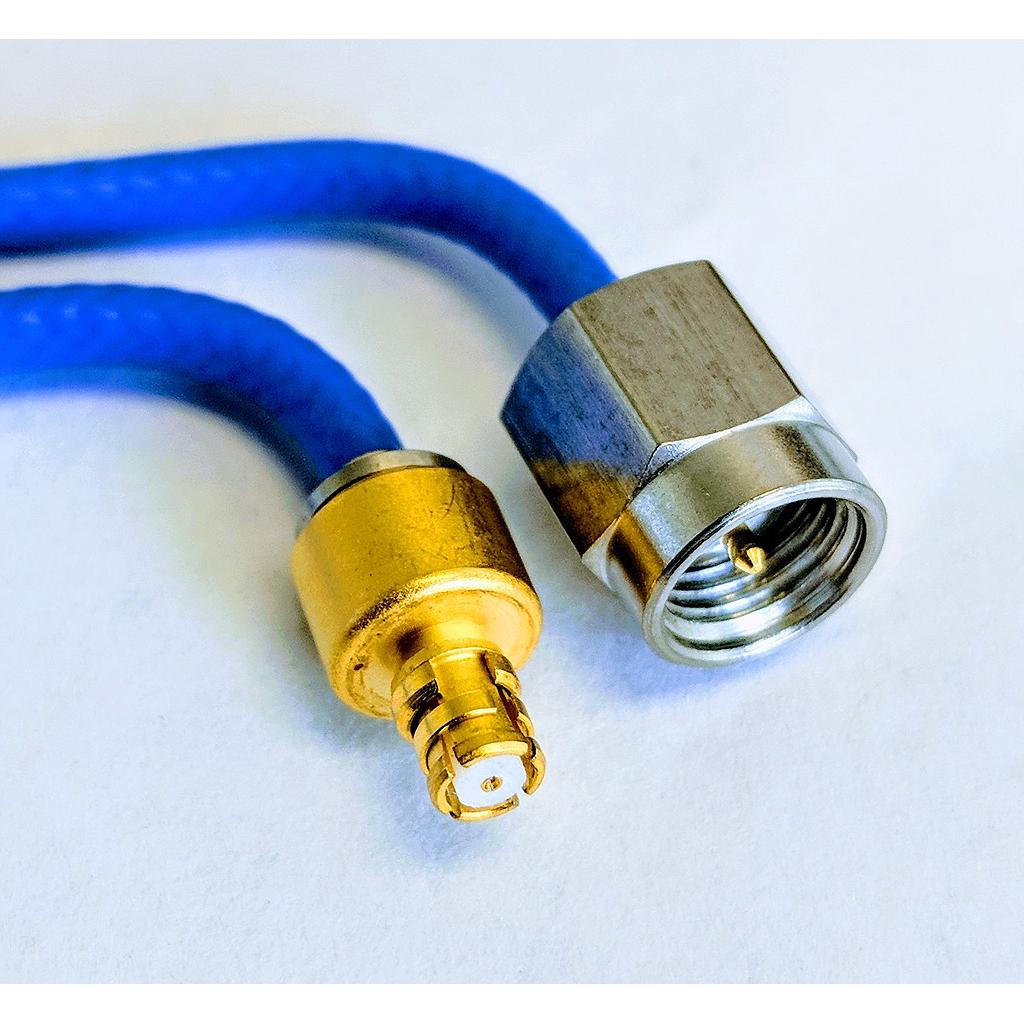

SMA Male to SMP Female cable assembly using ST085 Tight-Flex, Triple Shielded Coax, 24 inches long, Operating to 18 GHz.
| Specifications |
|
Part Number:
|
|
Status:
|
|
Datasheet:
|
|
RoHS Compliance:
No
|
|
Connector 1:
SMA Male
|
|
Connector 2:
SMP Female
|
|
Cable Type:
ST085
|
|
Cable_Feature:
Tight-Flex, Triple Shielded
|
|
Length (in):
24.0
|
|
Outer Diameter (in):
0.104
|
|
Max. Frequency (GHz):
18.0
|
|
Data.F1:
1.0
|
|
Data.F2:
5.0
|
|
Data.F3:
10.0
|
|
Data.F4:
18.0
|
|
VSWR1:
1.15
|
|
VSWR2:
1.2
|
|
VSWR3:
1.25
|
|
VSWR4:
1.35
|
|
IL1:
0.21
|
|
IL2:
0.51
|
|
IL3:
0.75
|
|
IL4:
1.04
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Passivated Stainless Steel
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
None
|
|
ConnBody2:
Gold Plated Beryllium Copper
|
|
ConnContact2:
Gold Plated Beryllium Copper
|
|
InnerCond:
SPCW
|
|
Dielectric Material:
PTFE
|
|
JacketMat:
FEP
|
|
MinBend:
0.2
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
200.0
|
|
Shield1:
SPC Tape, Aluminum Tape, SPC Braid
|
