P1dB stocks a wide variety of RF cable assemblies operating from DC up to 50 GHz.

  • Hand Formable .085 or .141 inch diameter assemblies. With an FEP outer jacket or with tinned copper braid, P1dB's value series of conformable cables under $20. can be located in the section "Low cost hand formable cables".  These versatile cable assemblies are capable of performance up to 26.5 GHz when supplied with precision stainless steel SMA connectors. Most popular lengths and connector combinations are in stock in San Jose CA.  Additional formable cables with SMA, N, MMCX and MCX connectors are located in the section "Hand formable cable assemblies."
  • Pigtail Cables (Test Probes) are supplied in .020, .034, .047  and .085 inch semi-rigid. P1dB has a large stock of popular lengths (2 up to 10 inch) with an SMA jack(female) connector on one end and bare cable on the other end. Popular as a design tool, Pigtails can be soldered to circuit boards and used to test RF performance. Visit P1dB's section "Pigtail Cables" to see Test Probe cables. Standard Pigtails are supplied with a square cut cable end. If your application requires a trimmed cable end (exposing center contact and dielectric), contact P1dB for a custom quote.
  • Ultra Miniature Cable Assemblies with flex cable 0.8mm up to 1.3 mm diameter are a popular choice for consumer electronics. These assemblies use U.FL (also referred to as MHF, IPAX or UMC) connectors and a common design is a U.FL connector on one end mating to a circuit board and an SMA or MMCX connector for external connectionon the opposite end. Included in the "Ultra Miniature Cables" section are P1dB's very small diameter semi-rigid assemblies, including .020, .034 and .047 inch cables. Common lengths with SMA connectors on either end are in stock.
  • SMP and SMPM cables are stocked in .085 flex (SS085 or ST085 cable) or .085 hand formable. Choose from SMP (GPO)  and SMPM (GPPO) straight or right angle connectors. Visit P1db"s "SMP & SMPM Cables" section.
  • Phase Matched cables are available from P1dB, ranging from matched pairs of 2 cables up to sets with as many as 100 cables. P1dB can provide cables that are tested to 5 ps or as low as 2 ps (pico second) phase matching. Most popular is P1dB's SS141 flex cable with SMA male connectors. For applications higher than 18 GHz, P1dB can match flex cable with 2.92 mm, 2.4 mm or 1.85mm connectors to operate up to 67 GHz. Contact P1dB to quote your requirement. Delivery for most phase matched cables is in the 4 to 6 week range.
  • RG-style flex cables, including the most popular RG316 cable, are stocked in a variety of lengths with SMA, MCX, MMCX or N connectors. For extra RF shielding, choose from P1dB's RD316 series (double shield RG316 cable). Visit the "Flexible Cables" section.
  • Tight-Flex cable assemblies are a very flexible alternative to right angle connectors. Featuring a bend radius of 0.2 inch, TIght Flex assemblies "bend at the connector" and can eliminate the need for right angle connectors. The ST085 cable is a high performance 085 flex and is available with SMA, SMP, SMPM or 2.92mm connectors.

Click Here if you do not find the desiredCable Assemblies.

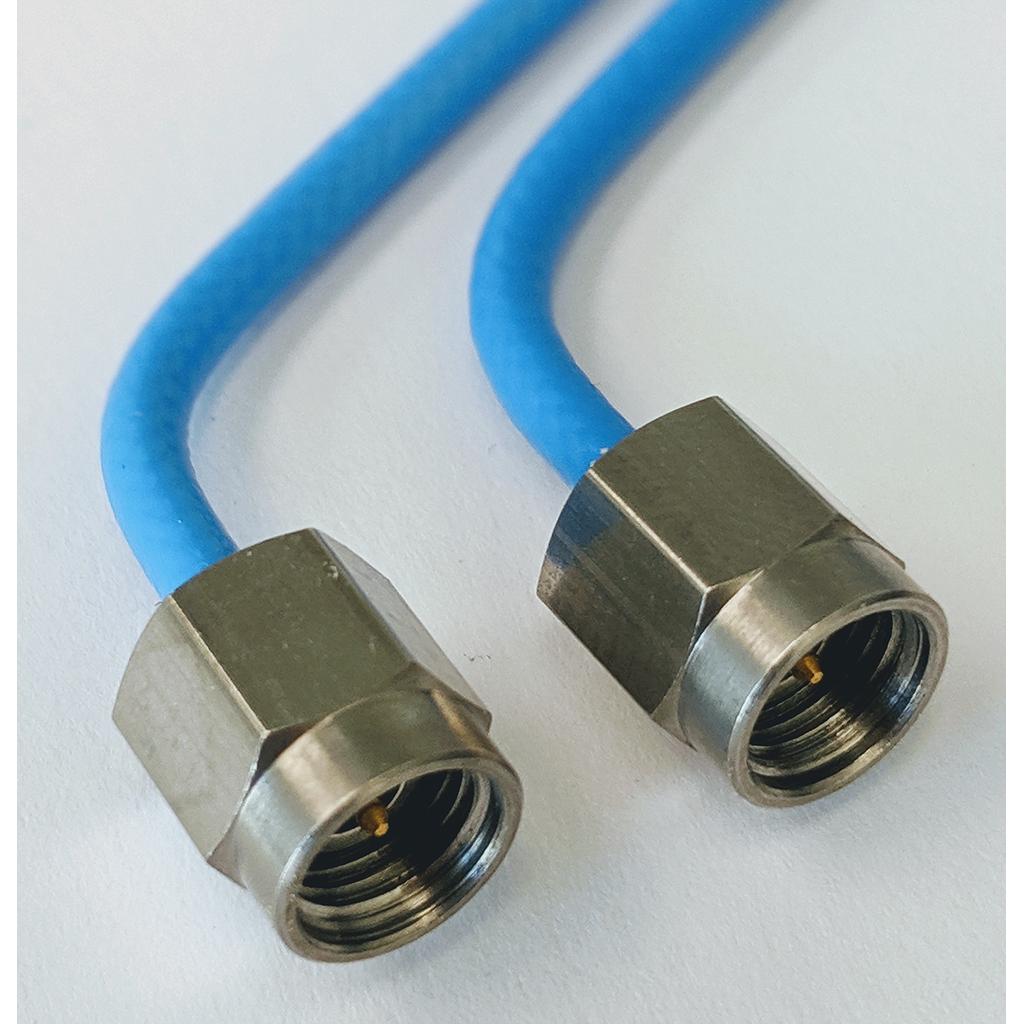

P1CA-29M29M-ST085-3
2.92mm Male to 2.92mm Male cable assembly using ST085 Tight-Flex, Triple Shielded Coax, 3 inch
68.93 68.93 68.93 USD
Pricelist
Min. Qty
Price
  • 1
    $ 68.93

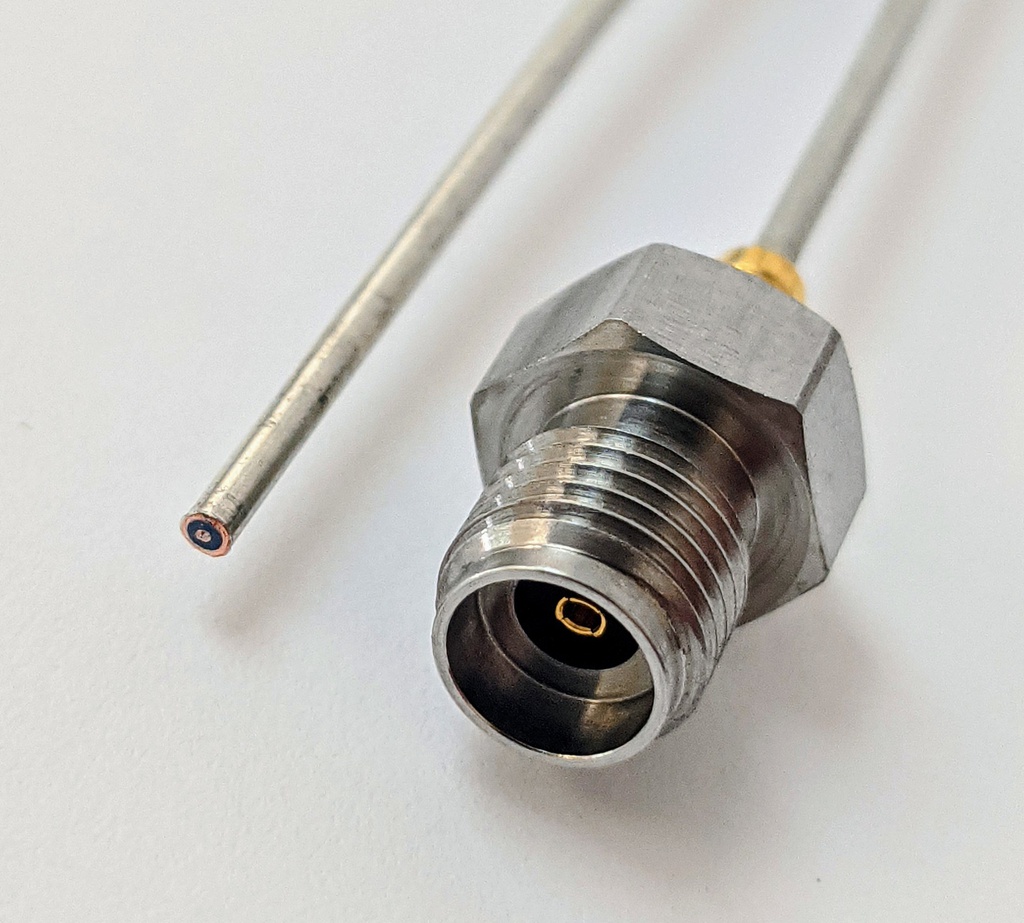

P1CA-29FPT-047SR-6
2.92mm Female to Pigtail (no connector) cable assembly using 047SR Semi-Rigid Coax, 6 inch.
Each assembly is RF tested DC to 40 GHz, max VSWR 1.45.
36.97 36.97 36.97 USD
Pricelist
Min. Qty
Price
  • 1
    $ 36.97
Connector 1
2.92mm Female
Connector 2
Pigtail - No Connector
Cable Type
047SR
Cable_Feature
Semi-Rigid
Length (in)
6.0
Max. Frequency (GHz)
40
P1CA-29FPT-020SR-6
2.92mm Female to Pigtail (no connector) cable assembly using 020SR Semi-Rigid Coax, 6 inch.
RF tested DC to 40 GHz.
46.89 46.89 46.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 46.89
Connector 1
2.92mm Female
Connector 2
Pigtail - No Connector
Cable Type
020SR
Cable_Feature
Semi-Rigid
Length (in)
6.0
Outer Diameter (in)
0.02
Max. Frequency (GHz)
40

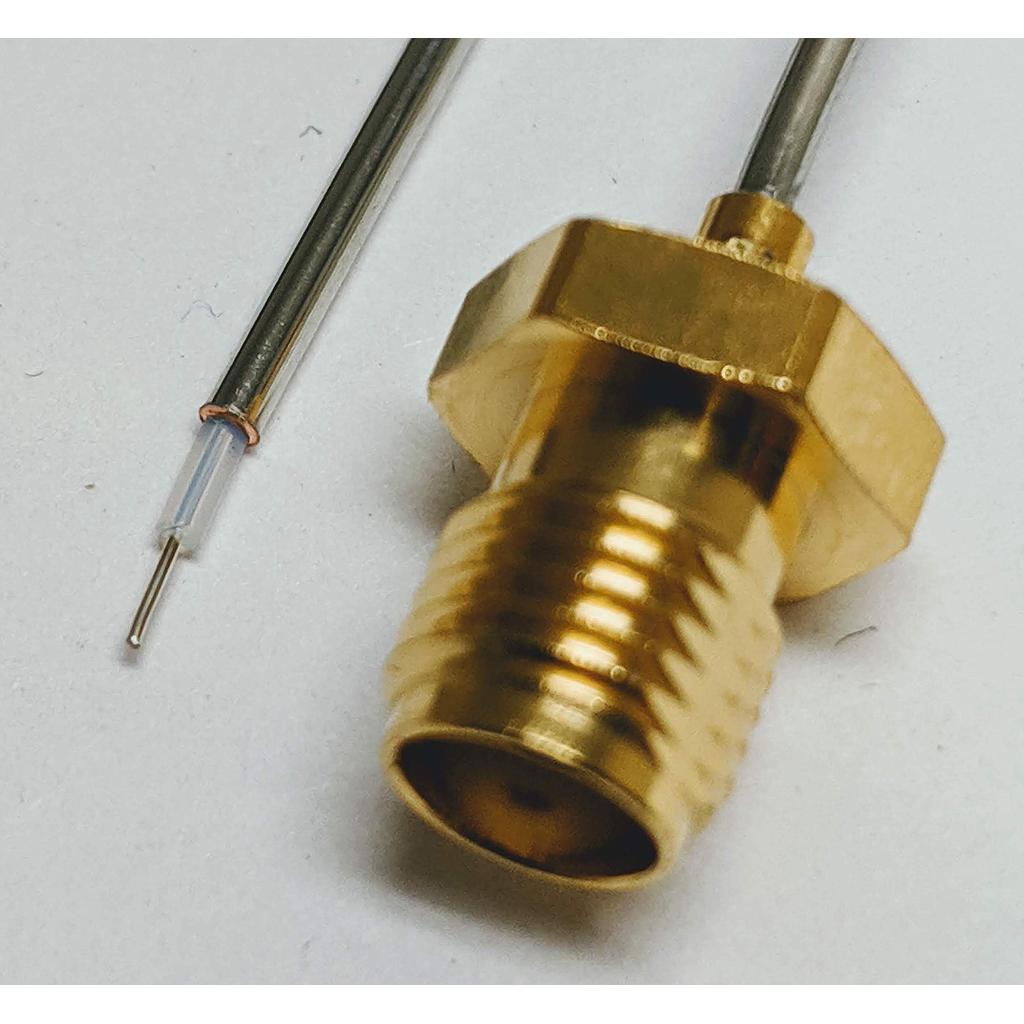

P1-SMAJ/PIGTAIL-047SR-3-12G
Trimmed Pigtail, SMA female, .047 semi rigid, 3 inch.
RF tested DC to 12 GHz. VSWR 1.40 max.
19.98 19.98 19.98 USD
Connector 1
SMA Female
Cable Type
047SR
Cable_Feature
Trimmed end
Length (in)
3.0

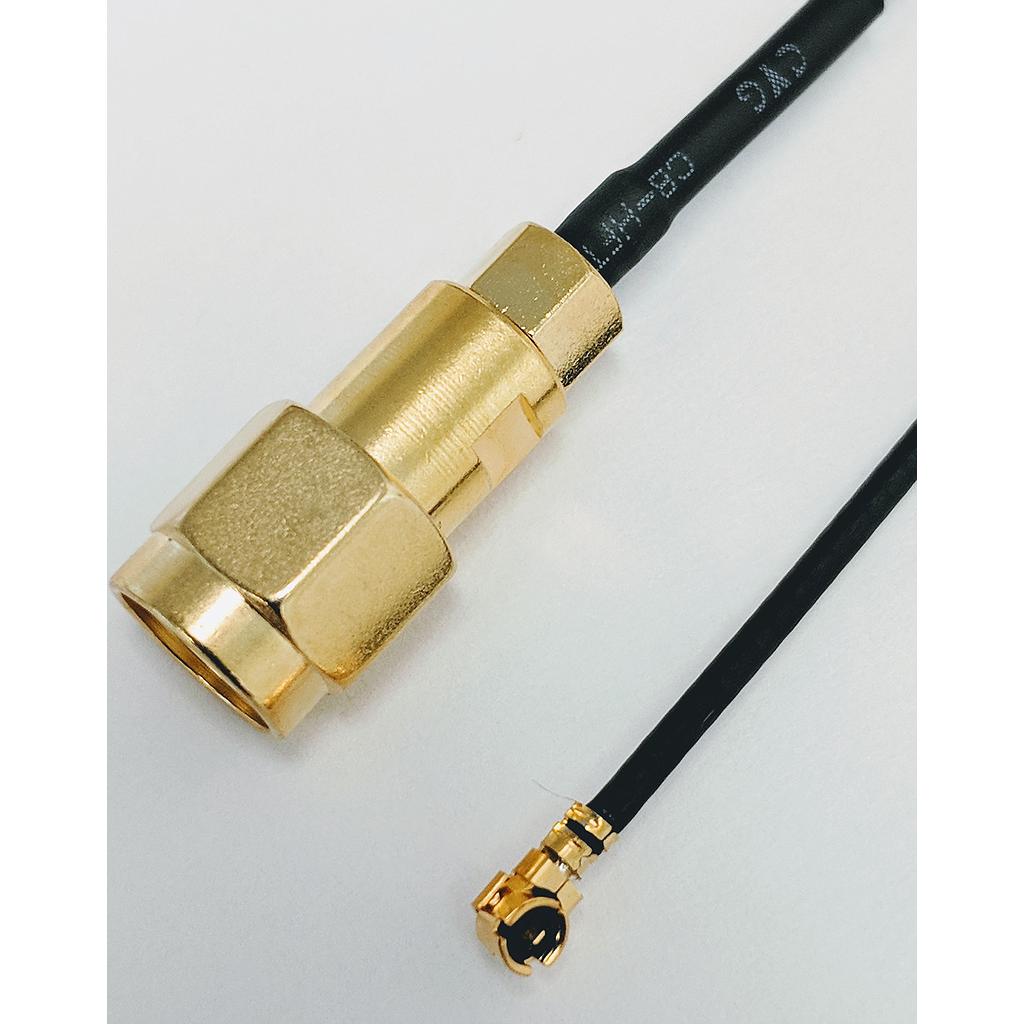

P1CA-SAMUFP-U137-48
Cable Assembly, SMA Male to U.FL Right Angle Plug, 1.37mm flex cable, 48 inch.
14.55 14.55 14.55 USD
P1CA-SAMUFP-U137-72
Cable Assembly, SMA Male to U.FL Right Angle Plug, Flex 1.37mm coax, 72 inch
15.67 15.67 15.67 USD

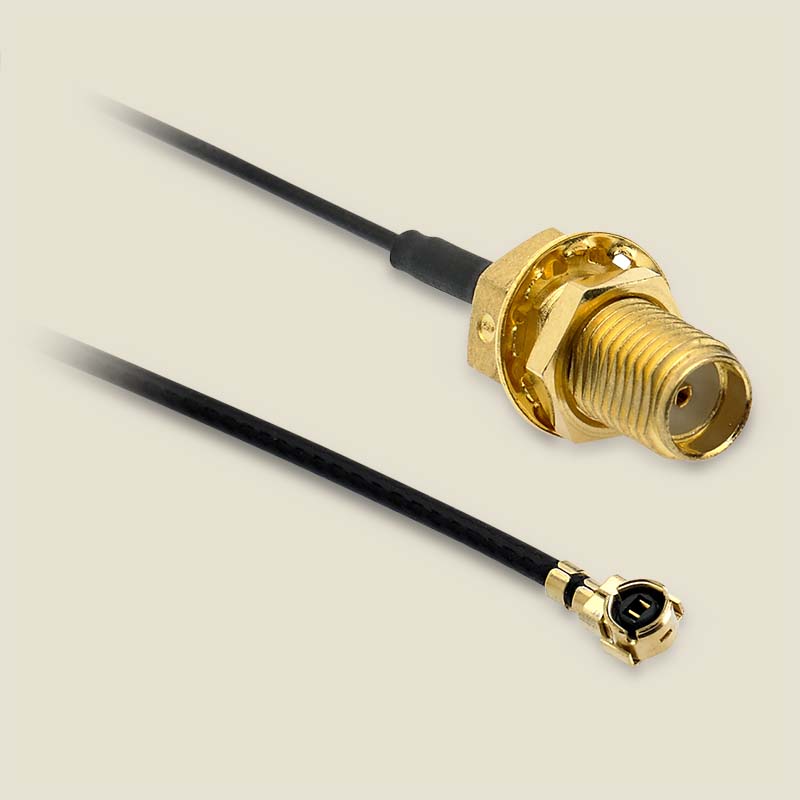

P1CA-SAFBUFP-U113-4
Cable Assembly, SMA Bulkhead Female to U.FL Right Angle Plug, U113 Coax, 4 inches.
11.95 11.95 11.950000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 11.95

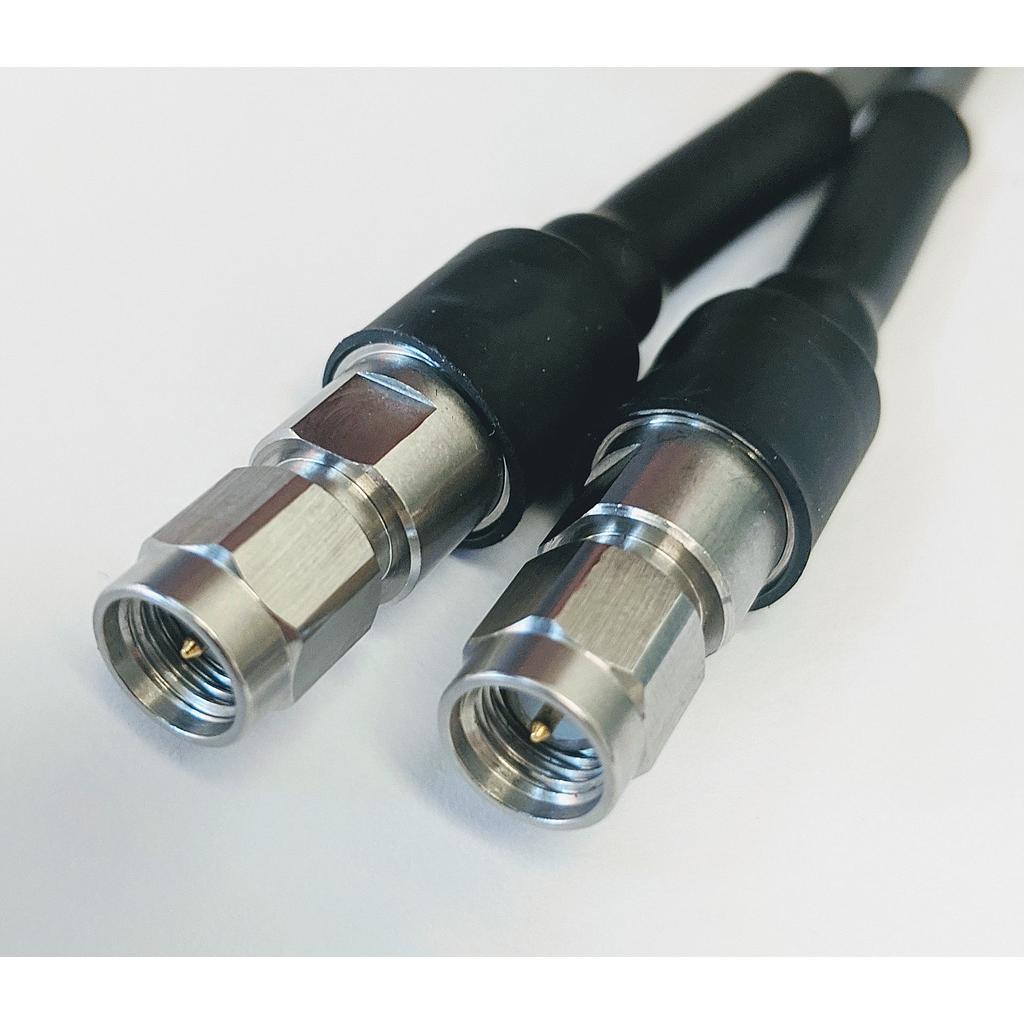

P1CA-SAMSAM-F140-12-PM-1PS
RF flexible cable assembly, SMA Male to SMA Male, 0.140 inch flexible coaxial cable, 12 inch.
Supplied as Time Delay (skew) matched cable pairs. Larger quantity matched sets available upon request.
Time delay +/- 1 ps max from DC to 26.5 GHz.
S parameter data included. Price is per cable, minimum order 2 cables.
197.56 197.56 197.56 USD
Pricelist
Min. Qty
Price
  • 2
    $ 197.56
P1CA-SAFPT-020SR-2-12G
SMA Female to Pigtail, .020 Semi-Rigid Coax, 2 inch, bare copper outer conductor.
Extended frequency: RF tested DC to 12 GHz, VSWR 1.35 max.
24.74 24.74 24.740000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 24.74
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
020SR
Cable_Feature
Semi-Rigid
Length (in)
2.0
Outer Diameter (in)
0.02
Max. Frequency (GHz)
12.0
P1-SMAJ/PIGTAIL-034SR-2-12G
Trimmed Pigtail assembly, SMA female (jack), .034 semi rigid cable, 2 inch.
RF tested DC to 12 GHz.
19.97 19.97 19.97 USD
Connector 1
SMA Female
Cable Type
034SR
Length (in)
2.0
P1CA-2MMXP-RG316-6
Flex cable assembly, MMCX plug straight to MMCX plug straight, RG316, 6 inch.
Frequency DC to 6 GHz.
11.89 11.89 11.89 USD
Connector 1
MMCX Plug
Connector 2
MMCX Plug
Cable Type
RG-316
Length (in)
6.0

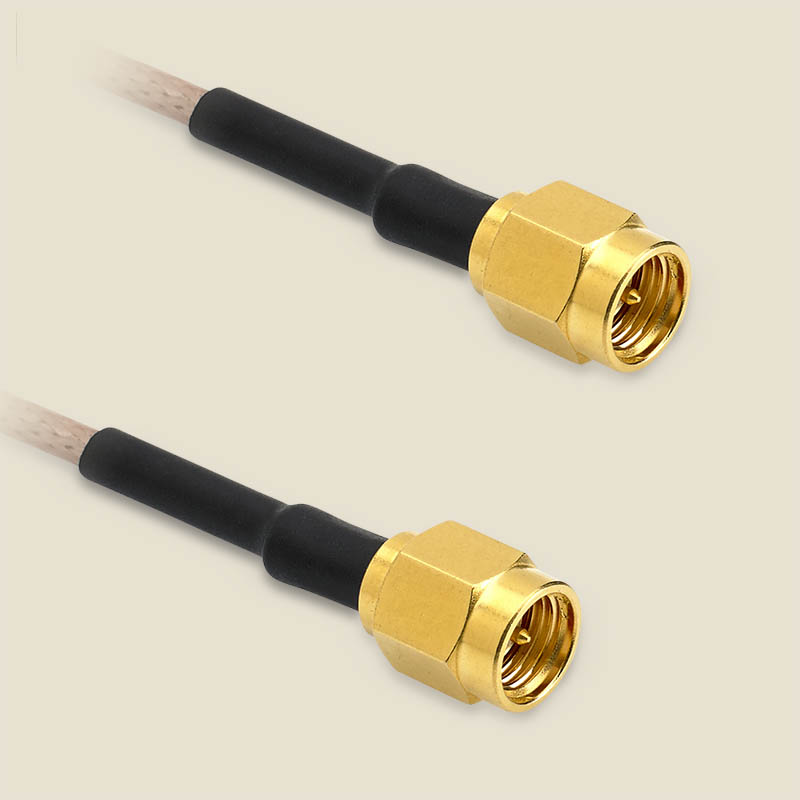

P1CA-SAMSAM-RD316-72
SMA Male to SMA Male cable assembly, RD316 , 72 inch.
30.95 30.95 30.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 30.95
Connector 1
SMA Male
Connector 2
SMA Male
Cable Type
RD316
Cable_Feature
Double-Shielded RG Type Flex
Length (in)
72.0
Outer Diameter (in)
0.114
Max. Frequency (GHz)
6.0
Data.F1
0.4
Data.F2
1.0
Data.F3
2.4
P1CA-UFLUFL-U137-3
Cable Assembly, U.FL Right Angle Plug to U.FL Right Angle Plug, flex 1.37mm cable, 3 inch.
8.99 8.99 8.99 USD
Pricelist
Min. Qty
Price
  • 1
    $ 8.99
  • 10
    $ 7.82

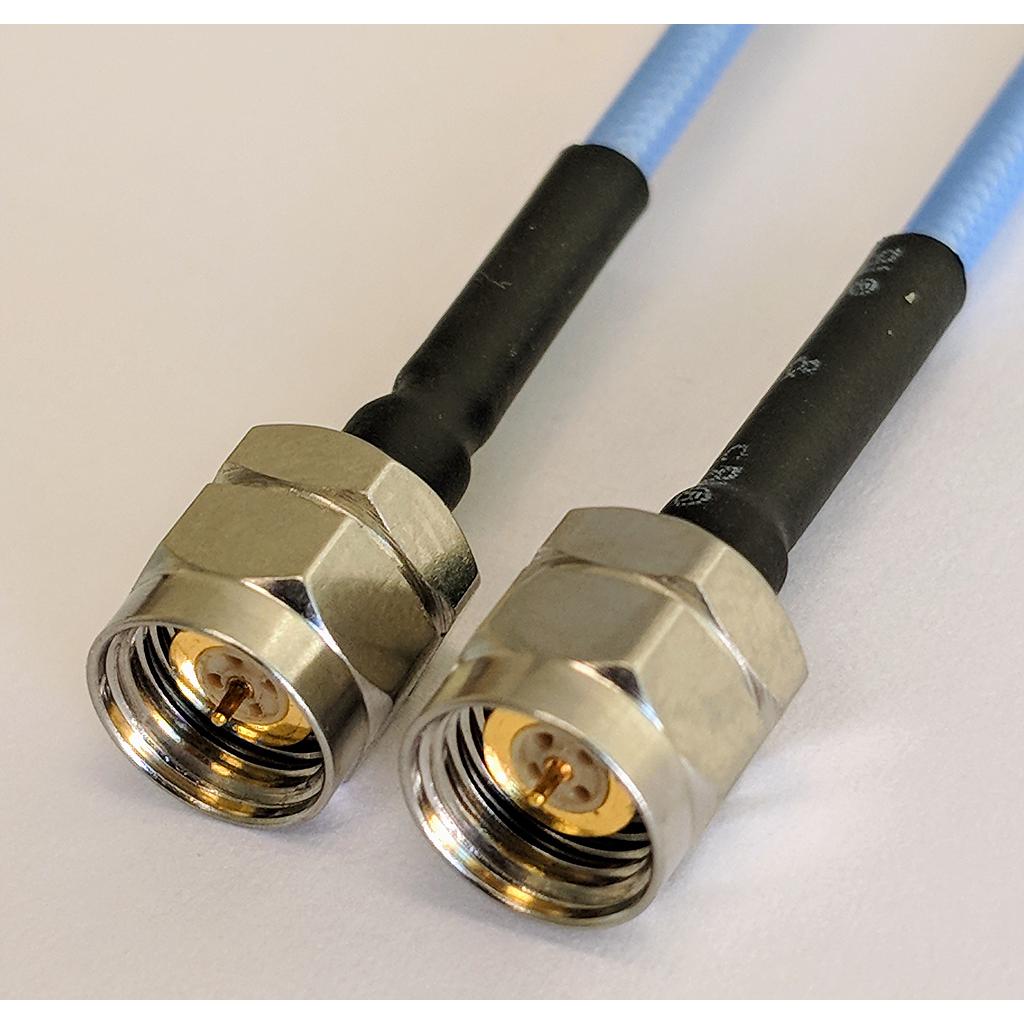

P1CA-29M29M-085CJ-2
2.92mm Male to 2.92mm Male RF flex cable using Flexiform 085 hand formable cable, 2 inches long, Operating DC to 40 GHz.
53.58 53.58 53.58 USD
Connector 1
2.92mm Male
Connector 2
2.92mm Male
Cable Type
Flexiform 085
Cable_Feature
High Performance
Length (in)
2.0
Outer Diameter (in)
0.104
Max. Frequency (GHz)
40.0
Data.F1
1.0
Data.F2
18.0
Data.F3
30.0
P1CA-29M29M-085CJ-24
2.92mm Male to 2.92mm Male RF flex cable using Flexiform 085 hand formable cable, 24 inches long, DC to 40 GHz.
57.42 57.42 57.42 USD
Pricelist
Min. Qty
Price
  • 1
    $ 57.42
Connector 1
2.92mm Male
Connector 2
2.92mm Male
Cable Type
Flexiform 085
Cable_Feature
Hand Formable
Length (in)
24.0
Outer Diameter (in)
0.104
Max. Frequency (GHz)
40.0
Data.F1
1.0
Data.F2
18.0
Data.F3
30.0

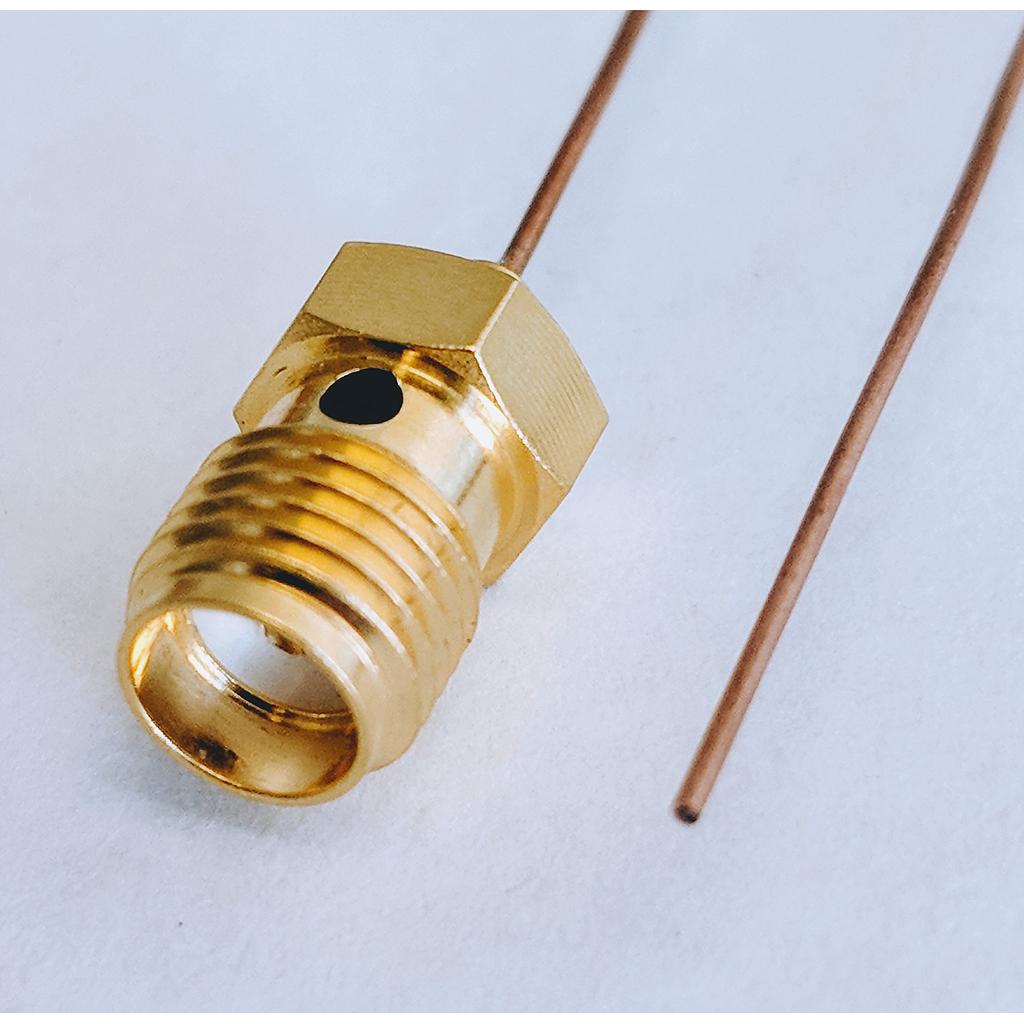

P1CA-SAFPT-020SR-9-12G
SMA Female to Pigtail, .020 Semi-Rigid Coax, 9 inch, bare copper outer conductor.
Extended frequency: RF tested DC to 12 GHz.
29.67 29.67 29.67 USD
Pricelist
Min. Qty
Price
  • 1
    $ 29.67
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
020SR
Cable_Feature
Semi-Rigid
Length (in)
9.0
Outer Diameter (in)
0.02
Max. Frequency (GHz)
12.0

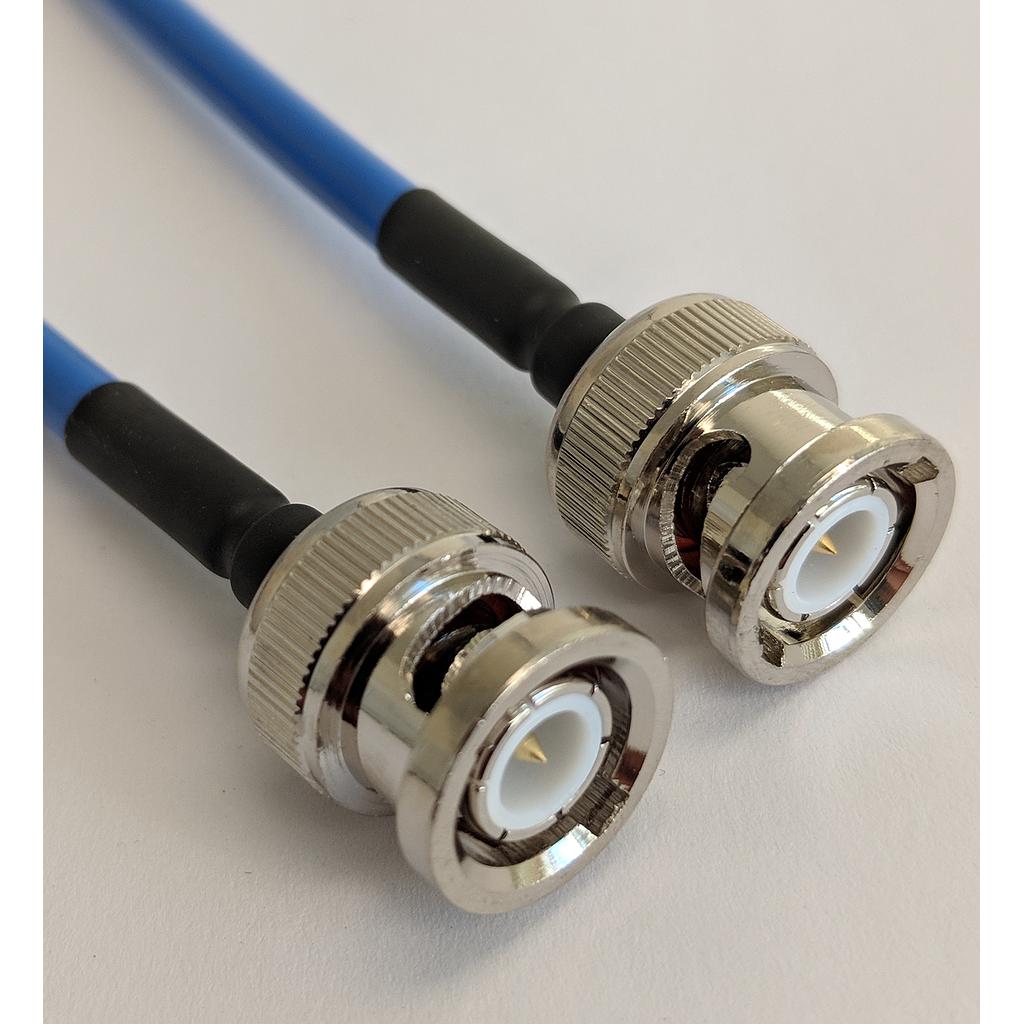

P1-BNCP/BNCP-141CJ-24
Cable Assembly, BNC Male to BNC Male, 141CJ Jacketed Conformable Coax, 24 inch.
26.38 26.38 26.38 USD
Connector 1
BNC Male
Connector 2
BNC Male
Cable Type
141CJ
Cable_Feature
Conformable, Jacketed
Length (in)
24.0
Outer Diameter (in)
0.161
Max. Frequency (GHz)
3.0

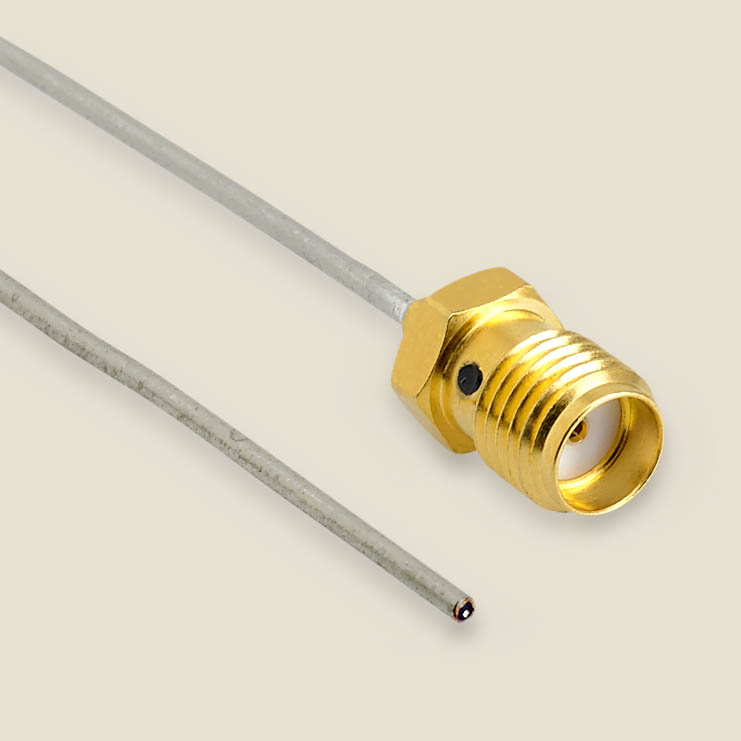

P1CA-SAFPT-034SR-4-12G
Extended frequency RF Test Probe.
SMA Female to Pigtail (no connector) cable assembly using 034SR Semi-Rigid Coax, 4 inch.
RF Tested DC to 12 GHz with a 1.45 max VSWR.
20.95 20.95 20.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 20.95
Connector 1
SMA Female
Connector 2
Pigtail - No Connector
Cable Type
034SR
Cable_Feature
Semi-Rigid
Length (in)
4.0
Outer Diameter (in)
0.034
Max. Frequency (GHz)
12.0
P1CA-29M29M-085CC-12
2.92mm Male to 2.92mm Male RF flex cable, 085CC hand formable cable (no jacket), 12 inch.
DC to 40 GHz with a max VSWR 1.40.
89.97 89.97 89.97 USD
Connector 1
2.92mm Male
Connector 2
2.92mm Male
Cable Type
085CC
Cable_Feature
Hand Formable
Length (in)
12.0
Outer Diameter (in)
0.085
Max. Frequency (GHz)
40.0
Data.F1
1.0
Data.F2
18.0
Data.F3
30.0
P1CA-UFLUFL-U137-50MM
Cable Assembly, U.FL Right Angle Plug to U.FL Right Angle Plug, flex 1.37mm cable, 50mm.
7.82 7.82 7.82 USD
Pricelist
Min. Qty
Price
  • 10
    $ 7.82
  • 25
    $ 7.58
