    P1-BNCP/SMBP-RD316-118

    P1-BNCP/SMBP-RD316-118

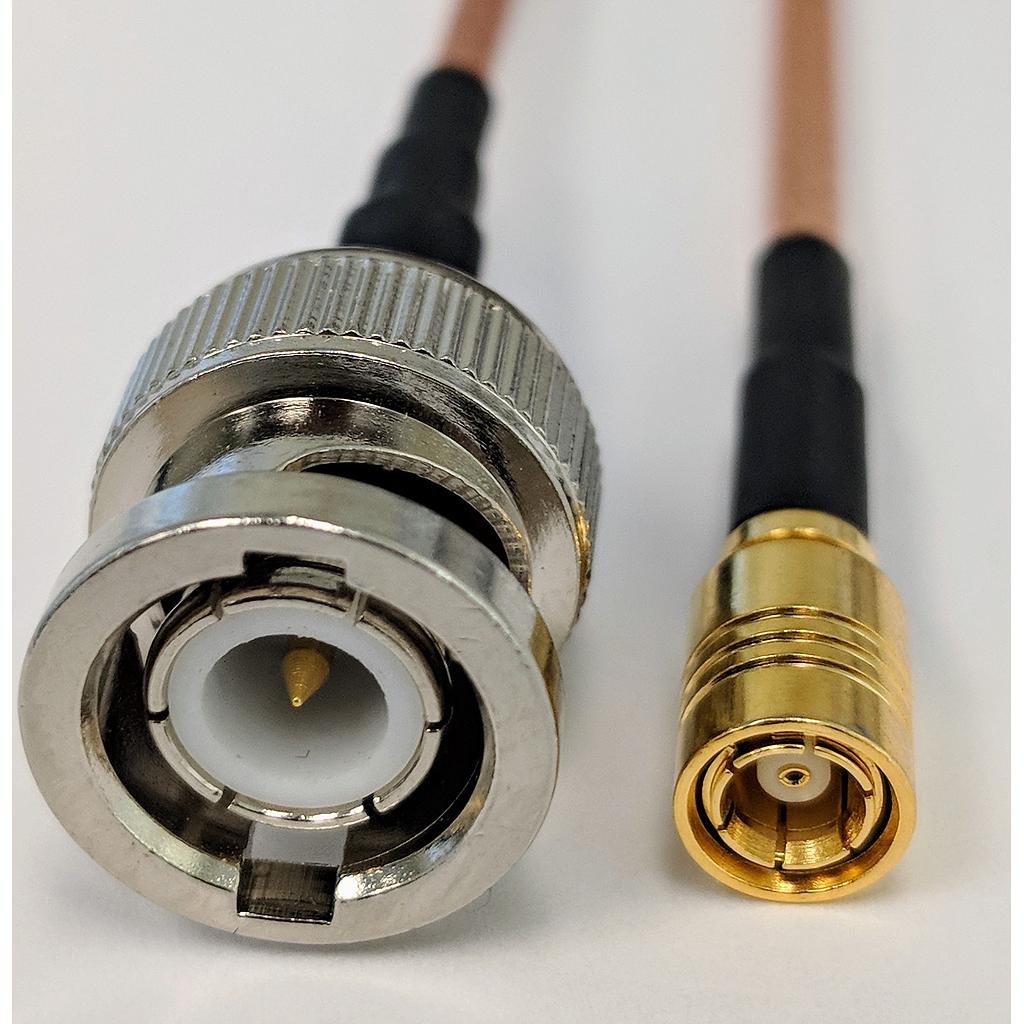

    BNC plug (male) to SMB plug cable using RD316 Double-Shielded RG Type Flex Coax, 118 inches long, and Operating to 3 GHz.

    $ 33.85 $ 33.85

    • Connector 1
    • Connector 2
    • Cable Type
    • Cable_Feature
    • Length (in)
    • Outer Diameter (in)
    • Max. Frequency (GHz)
    • VoP
    • ConnNut1
    • ConnBody1
    • ConnContact1
    • ConnNut2
    • ConnBody2
    • ConnContact2
    • InnerCond
    • Dielectric Material
    • Shield2
    • JacketMat
    • MinBend
    • OpTmpMin
    • OpTmpMax
    • Max VSWR
    • Shield1
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: BNC Male
    Connector 2: SMB Plug
    Cable Type: RD316
    Cable_Feature: Double-Shielded RG Type Flex
    Length (in): 118.0
    Outer Diameter (in): 0.114
    Max. Frequency (GHz): 3.0
    VoP: 69.5
    ConnNut1: Tin-Zinc-Copper-Alloy Plated Brass
    ConnBody1: Tin-Zinc-Copper-Alloy Plated Brass
    ConnContact1: Gold Plated Brass
    ConnNut2: None
    ConnBody2: Gold Plated Brass
    ConnContact2: Gold Plated Brass
    InnerCond: 7/.0067 SPCW
    Dielectric Material: PTFE
    Shield2: SPC Braid
    JacketMat: FEP
    MinBend: 0.6
    OpTmpMin: -40.0
    OpTmpMax: 85.0
    Max VSWR: 1.45:1
    Shield1: SPC Braid
