    P1-SMAJ/SMAJ-RG316-36

    P1-SMAJ/SMAJ-RG316-36

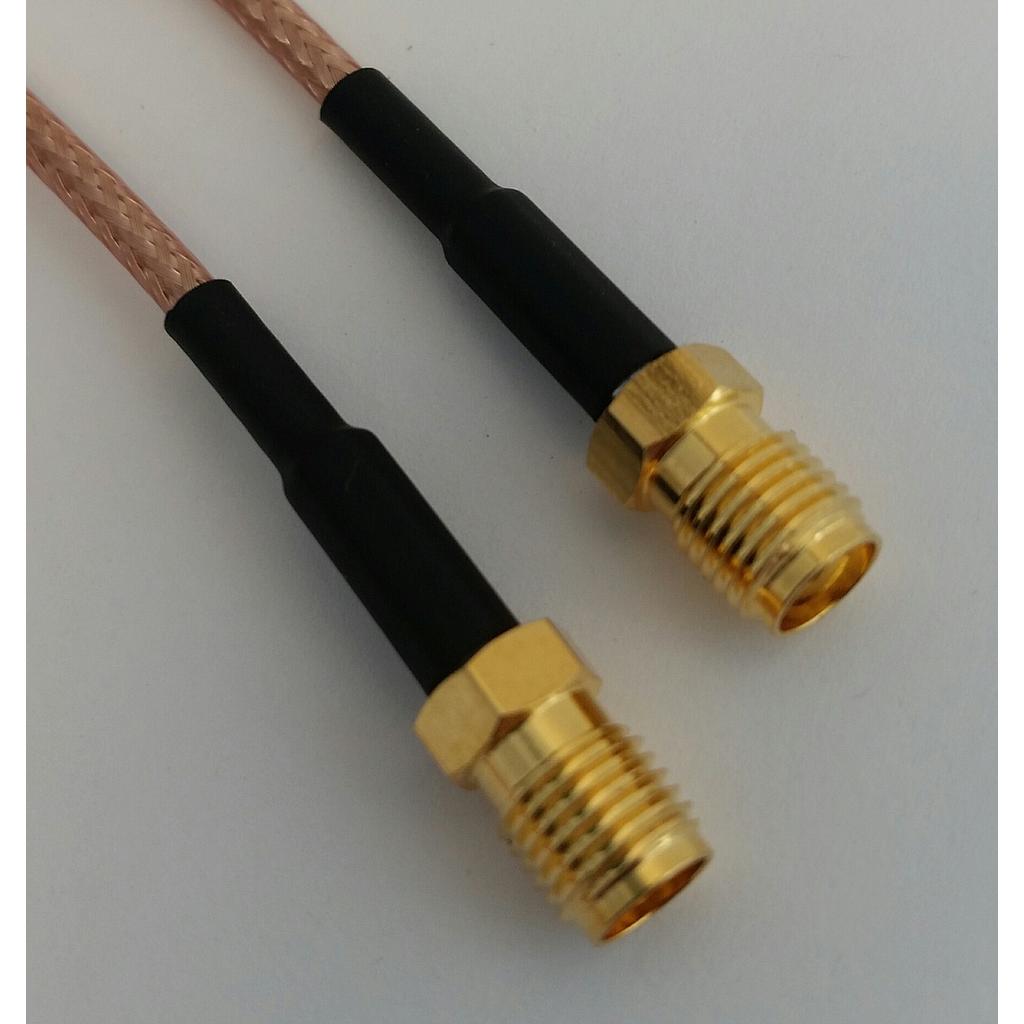

    SMA Female to SMA Female cable using RG-316 RG Type Flex Coax, 36 inches long, and Operating to 6 GHz.

    $ 16.95 $ 16.95

    • Connector 1
    • Connector 2
    • Cable Type
    • Cable_Feature
    • Length (in)
    • Outer Diameter (in)
    • Max. Frequency (GHz)
    • Data.F1
    • Data.F2
    • Data.F3
    • Data.F4
    • VSWR1
    • VSWR2
    • VSWR3
    • VSWR4
    • IL1
    • IL2
    • IL3
    • IL4
    • VoP
    • ConnNut1
    • ConnBody1
    • ConnContact1
    • ConnNut2
    • ConnBody2
    • ConnContact2
    • InnerCond
    • Dielectric Material
    • JacketMat
    • MinBend
    • OpTmpMin
    • OpTmpMax
    • Shield1
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: SMA Female
    Connector 2: SMA Female
    Cable Type: RG-316
    Cable_Feature: RG Type Flex
    Length (in): 36.0
    Outer Diameter (in): 0.098
    Max. Frequency (GHz): 6.0
    Data.F1: 0.4
    Data.F2: 1.0
    Data.F3: 2.4
    Data.F4: 5.0
    VSWR1: 1.2
    VSWR2: 1.25
    VSWR3: 1.3
    VSWR4: 1.35
    IL1: 0.18
    IL2: 0.31
    IL3: 0.49
    IL4: 0.67
    VoP: 69.5
    ConnNut1: None
    ConnBody1: Gold Plated Brass
    ConnContact1: Gold Plated Beryllium Copper
    ConnNut2: None
    ConnBody2: Gold Plated Brass
    ConnContact2: Gold Plated Beryllium Copper
    InnerCond: 7/.0067 SPCW
    Dielectric Material: PTFE
    JacketMat: FEP
    MinBend: 0.5
    OpTmpMin: -55.0
    OpTmpMax: 200.0
    Shield1: SPC Braid
