    P1-SMAP/SMBP-RG316-48

    P1-SMAP/SMBP-RG316-48

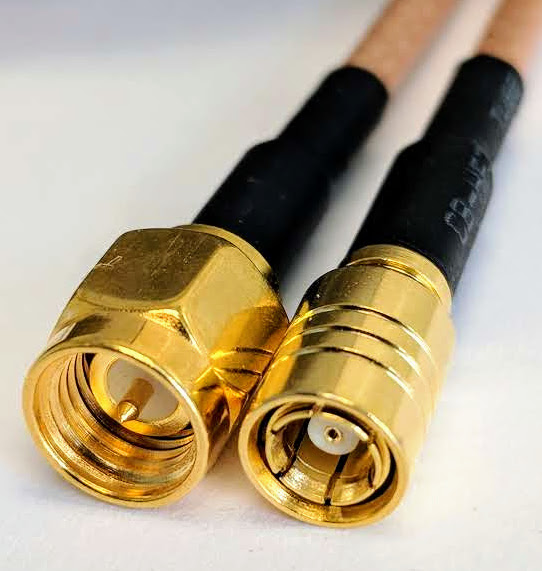

    RF cable assembly, SMA Male to SMB Plug (female contact), RG316 flexible coax, 48 inch.

    $ 27.15 $ 27.15

    • Connector 1
    • Connector 2
    • Cable Type
    • Length (in)
    • Outer Diameter (in)
    • Max. Frequency (GHz)
    • ConnNut1
    • ConnBody1
    • ConnContact1
    • ConnNut2
    • ConnBody2
    • ConnContact2
    • InnerCond
    • Dielectric Material
    • Shield2
    • JacketMat
    • OpTmpMin
    • OpTmpMax
    • Shield1
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: SMA Male
    Connector 2: SMB Plug
    Cable Type: RG316
    Length (in): 48.0
    Outer Diameter (in): 0.098
    Max. Frequency (GHz): 3.0
    ConnNut1: Gold Plated Brass
    ConnBody1: Gold Plated Brass
    ConnContact1: Gold Plated Brass
    ConnNut2: None
    ConnBody2: Gold Plated Brass
    ConnContact2: Gold Plated Brass
    InnerCond: 7/.0067 SPCW
    Dielectric Material: PTFE
    Shield2: SPC Braid
    JacketMat: FEP
    OpTmpMin: -55.0
    OpTmpMax: 125.0
    Shield1: SPC Braid
