    P1AD-24FF

    P1AD-24FF

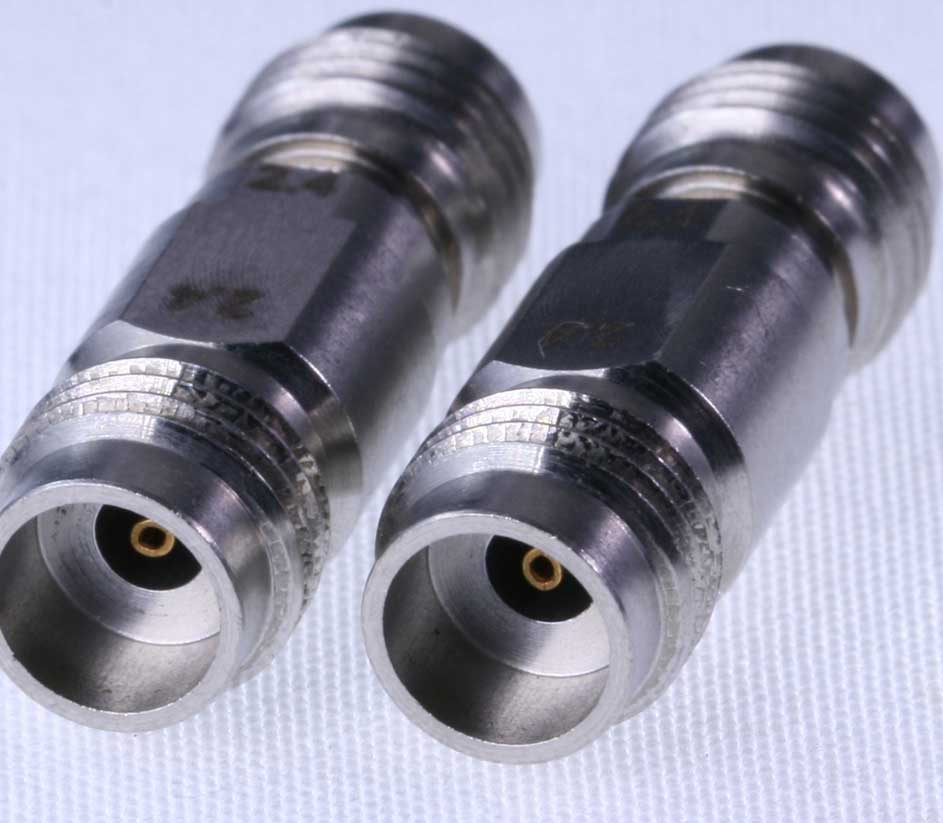

    2.4mm Female to 2.4mm Female Adapter.
    Frequency DC to 50 GHz with a max VSWR of 1.30.

    $ 99.74 $ 99.74

    • Connector 1
    • Connector 2
    • Max. Frequency (GHz)
    • Data.F1
    • VSWR1
    • ConnBody1
    • ConnContact1
    • ConnBody2
    • ConnContact2
    • OpTmpMin
    • OpTmpMax
    • Angle
    • Mount
    • Feature
    • Impedance
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: 2.4mm Female
    Connector 2: 2.4mm Female
    Max. Frequency (GHz): 50.0 GHz
    Data.F1: 50.0
    VSWR1: 1.3
    ConnBody1: Stainless Steel
    ConnContact1: Gold Plated Beryllium Copper
    ConnBody2: Stainless Steel
    ConnContact2: Gold Plated Beryllium Copper
    OpTmpMin: -85.0
    OpTmpMax: 125.0
    Angle: Straight
    Mount: None
    Feature: None
    Impedance: 50.0
