Coaxial Adapters

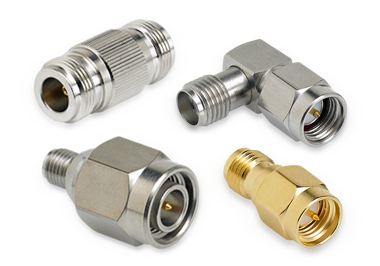

P1dB offers a wide variety of 50 Ohm coaxial adapters, covering frequencies from DC to 65 GHz. Choose from our in-series category of adapters for female to female, male to male or male to female designs with same connectors on both ends. For between series adapters, P1dB has parts in all the common connector series. Choose from low frequency BNC, MCX or MMCX,  to intermediate frequency SMA, N, TNC or high frequency 2.92mm, 2.4mm or 1.8mm.

Click Here if you do not find the desiredCoaxial Adapters.

P1AD-716J716J
RF Adapter, precision low PIM 7/16 female (jack) to 7/16 female (jack).
Frequency DC to 7.5 GHz with a max VSWR 1.15.
71.75 71.75 71.75 USD
Pricelist
Min. Qty
Price
  • 1
    $ 71.75
  • 10
    $ 68.16
Connector 1
7/16 Female
Connector 2
7/16 Female
Impedance
50.0
P1AD-716J716P
RF Adapter, precision low PIM 7/16 female (jack) to 7/16 male (plug).
Frequency DC to 7.5 GHz with a max VSWR 1.15.
71.75 71.75 71.75 USD
Pricelist
Min. Qty
Price
  • 1
    $ 71.75
  • 10
    $ 68.16
Connector 1
7/16 Female
Connector 2
7/16 Male
Impedance
50.0
P1AD-716P716P
RF Adapter, precision low PIM 7/16 male (plug) to 7/16 male (plug).
71.75 71.75 71.75 USD
Pricelist
Min. Qty
Price
  • 1
    $ 71.75
  • 10
    $ 68.16
Connector 1
7/16 Male
Connector 2
7/16 Male
Impedance
50.0
P1AD-10M18F
Precsision RF Adapter, 1.0mm male to 1.85mm female, DC to 67 GHz.
VSWR 1.35 max to 67 GHz.
385.89 385.89 385.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 385.89
  • 5
    $ 374.45
Connector 1
1.00mm Male
Connector 2
1.85mm Female
Impedance
50.0
Frequency (GHz)
67 GHz
Max VSWR
1.35 to 67 GHz
P1AD-29MFRA-1.25
RF Adapter, 2.92mm Male to 2.92mm Female, mitered right angle.
Operating DC to 40 GHz with a 1.25 maximum VSWR.
222.89 222.89 222.89000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 222.89
  • 5
    $ 208.67
P1AD-SAMM-27
RF Adapter, SMA male (plug) to SMA male (plug) , up to 27 GHz.
VSWR 1.15 maximum.
35.95 35.95 35.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.95
  • 10
    $ 31.55
Connector 1
SMA Male
Connector 2
SMA Male
Angle
Straight
Impedance
50.0
P1AD-SAFM-27
RF Adapter, SMA female (jack) to SMA male (plug) , up to 27 GHz.
VSWR 1.15 maximum.
35.95 35.95 35.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.95
  • 10
    $ 34.91
Connector 1
SMA Female
Connector 2
SMA Male
Angle
Straight
Impedance
50.0
P1AD-SAFF-27
RF Adapter, SMA female (jack) to SMA female (jack), up to 27 GHz.
VSWR 1.15 maximum.
35.95 35.95 35.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 35.95
  • 10
    $ 34.91
Connector 1
SMA Female
Connector 2
SMA Female
Angle
Straight
Impedance
50.0
P1AD-18FF-65G-1.25
1.85mm Female to 1.85mm Female Straight Adapter Operating to 67 GHz with a maximum VSWR 1.25.
249.65 249.65 249.65 USD
Pricelist
Min. Qty
Price
  • 1
    $ 249.65
  • 10
    $ 234.96
P1AD-SAF7MM
SMA Female to 7MM (APC7) Test Adapter.
Operating to 18 GHz with max VSWR 1.15.
230.93 230.93 230.93 USD
Pricelist
Min. Qty
Price
  • 1
    $ 230.93
  • 10
    $ 214.76
Connector 1
SMA Female
Connector 2
7 mm
Angle
Straight
Mount
None
Impedance
50.0

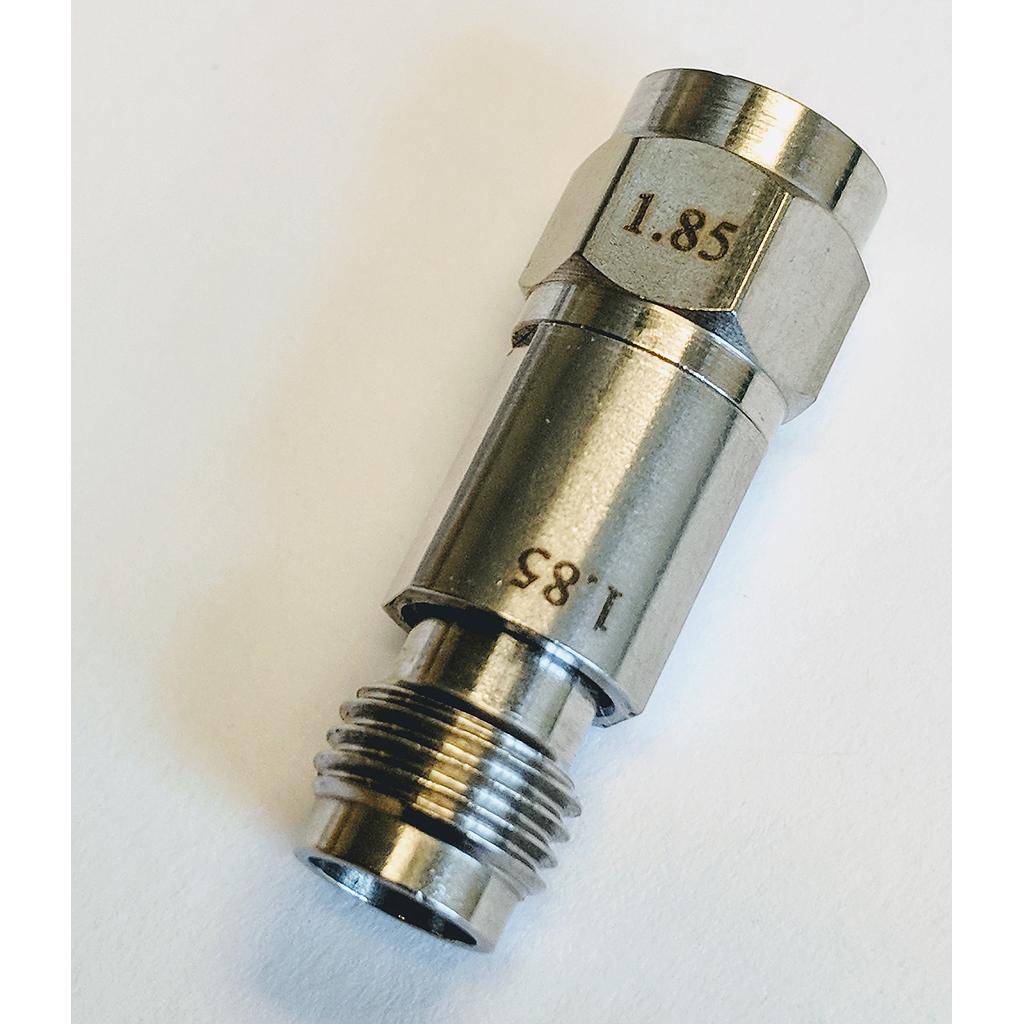

P1AD-18MF-65G
1.85mm Male to 1.85mm Female Straight Adapter, Max VSWR 1.35 to 67 GHz
219.95 219.95 219.95000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 219.95
  • 10
    $ 207.56
P1AD-SAFNFB
Precision RF Adapter, 50 Ohm, SMA female (jack) to N female (jack), bulkhead mount.
Operating to 18 Ghz with a maximum VSWR 1.20.
77.35 77.35 77.35000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 77.35
  • 10
    $ 67.48
Connector 1
SMA Female
Connector 2
N Female
Length (in)
1.50
Angle
Straight
Mount
Bulkhead
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
18.0
Max VSWR
1.2:1
P1-ADP-SMAJ/NJ
RF Adapter, SMA female (jack) to N female (jack).
Frequency DC to 18 GHz with a maximum VSWR 1.25.
22.95 22.95 22.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 22.95
  • 10
    $ 20.45
Connector 1
SMA Female
Connector 2
N Female
Max VSWR
1.25:1
P1AD-SAFBMMBD
RF Adapter, SMA female (jack) to BMA male (plug), bulkhead mount.
68.59 68.59 68.59 USD
Pricelist
Min. Qty
Price
  • 1
    $ 68.59
  • 10
    $ 59.77
Connector 1
SMA Female
Connector 2
BMA Male
Angle
Straight
Mount
Bulkhead
Impedance
50.0
Frequency (GHz)
18.0
Max VSWR
1.2:1
P1AD-SAFBMFBD
RF Adapter, SMA female to BMA female, bulkhead mount.
68.59 68.59 68.59 USD
Pricelist
Min. Qty
Price
  • 1
    $ 68.59
  • 10
    $ 65.16
Connector 1
SMA Female
Connector 2
BMA Female
Angle
Straight
Mount
Bulkhead
Impedance
50.0
Frequency (GHz)
18.0
Max VSWR
1.2:1

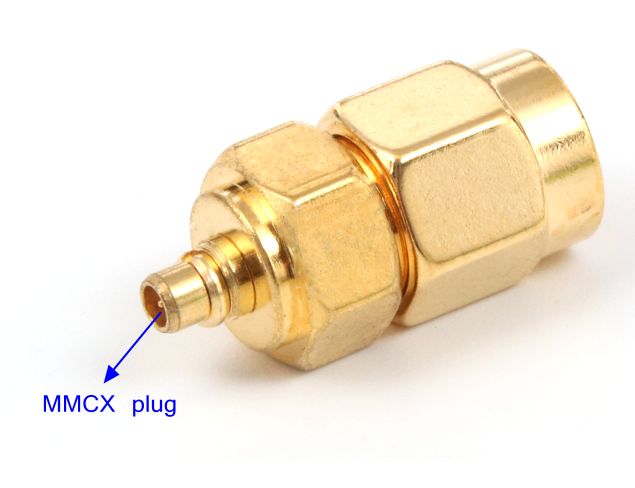

P1AD-SAMMMXP
Adapter, SMA male to MMCX plug (male)
Gold plated brass body, VSWR 1.3 max to 6 GHz.
19.88 19.88 19.88 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.88
  • 10
    $ 18.88
Connector 1
SMA Male
Connector 2
MMCX Plug
Max VSWR
1.30

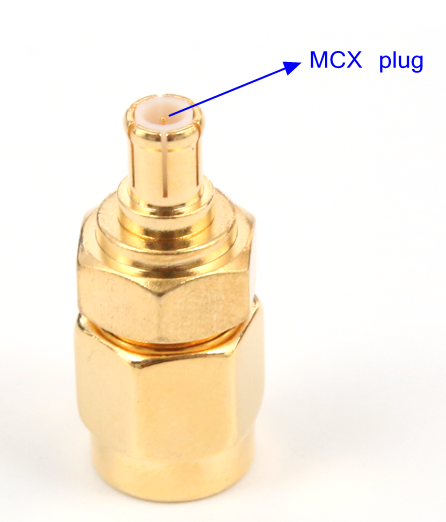

P1AD-SAMMXP
Adapter, SMA male to MCX plug (male)
Gold plated brass body, VSWR 1.3 max to 6 GHz.
19.88 19.88 19.88 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.88
  • 10
    $ 16.65
Connector 1
SMA Male
Connector 2
MCX Plug
Max VSWR
1.30

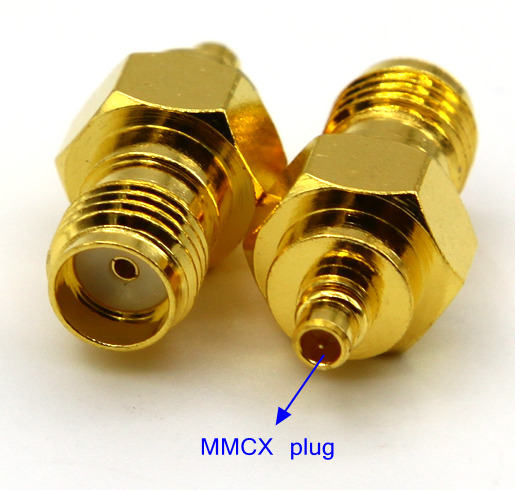

P1AD-SAFMMXP
Adapter, SMA female to MMCX plug (male)
Gold plated brass body, VSWR 1.3 max to 6 GHz.
19.88 19.88 19.88 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.88
  • 10
    $ 18.89
Connector 1
SMA Female
Connector 2
MMCX Plug
Max VSWR
1.30

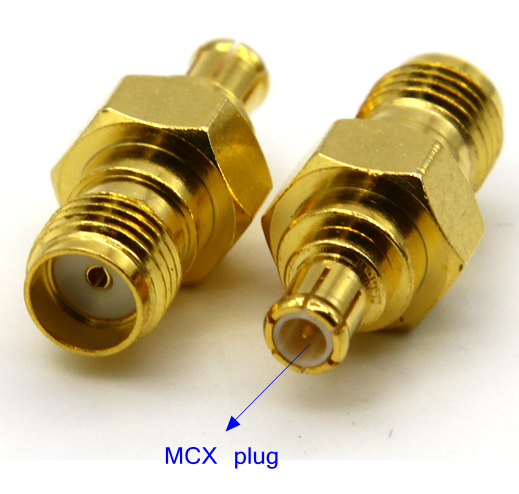

P1AD-SAFMXP
Adapter, SMA female to MCX plug (male)
Gold plated brass body, VSWR 1.3 max to 6 GHz.
19.88 19.88 19.88 USD
Pricelist
Min. Qty
Price
  • 1
    $ 19.88
  • 10
    $ 18.89
Connector 1
SMA Female
Connector 2
MCX Plug
Max VSWR
1.30
P1AD-24M35M
RF Adapter, 2.4mm Male to 3.5mm Male, VSWR 1.25 max to 35 GHz
198.52 198.52 198.52 USD
Pricelist
Min. Qty
Price
  • 1
    $ 198.52
  • 5
    $ 188.97
Connector 1
2.4mm Female
Connector 2
3.5mm Male
Impedance
50.0
Frequency (GHz)
35.0
Max VSWR
1.25:1
