High Frequency Adapters

      P1dB has adapters for high frequency test and measurement. Choices include in-series and between-series 3.5mm (up to 35 GHz) , 2.92mm (up to 40GHz), 2.4mm ( to 50 GHz) and 1.85mm (to 65 GHz).

Click Here if you do not find the desiredHigh Frequency Adapters.

P1AD-10M18F
Precsision RF Adapter, 1.0mm male to 1.85mm female, DC to 67 GHz.
VSWR 1.35 max to 67 GHz.
385.89 385.89 385.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 385.89
Connector 1
1.00mm Male
Connector 2
1.85mm Female
Impedance
50.0
Frequency (GHz)
67 GHz
Max VSWR
1.35 to 67 GHz
P1AD-29MFRA-1.25
RF Adapter, 2.92mm Male to 2.92mm Female, mitered right angle.
Operating DC to 40 GHz with a 1.25 maximum VSWR.
222.89 222.89 222.89000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 222.89
P1AD-18MF-65G
1.85mm Male to 1.85mm Female Straight Adapter.
Frequency DC to 65 GHz, max VSWR 1.25.
219.95 219.95 219.95000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 219.95
  • 10
    $ 207.56
P1AD-24M35M
RF Adapter, 2.4mm Male to 3.5mm Male, VSWR 1.25 max to 35 GHz
198.52 198.52 198.52 USD
Pricelist
Min. Qty
Price
  • 1
    $ 198.52
  • 10
    $ 179.19
Connector 1
2.4mm Female
Connector 2
3.5mm Male
Impedance
50.0
Frequency (GHz)
35.0
Max VSWR
1.25:1
P1AD-24FM
2.4mm Female to 2.4mm Male Straight Adapter Operating to 50 GHz
99.74 99.74 99.74000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 99.74
  • 10
    $ 88.89

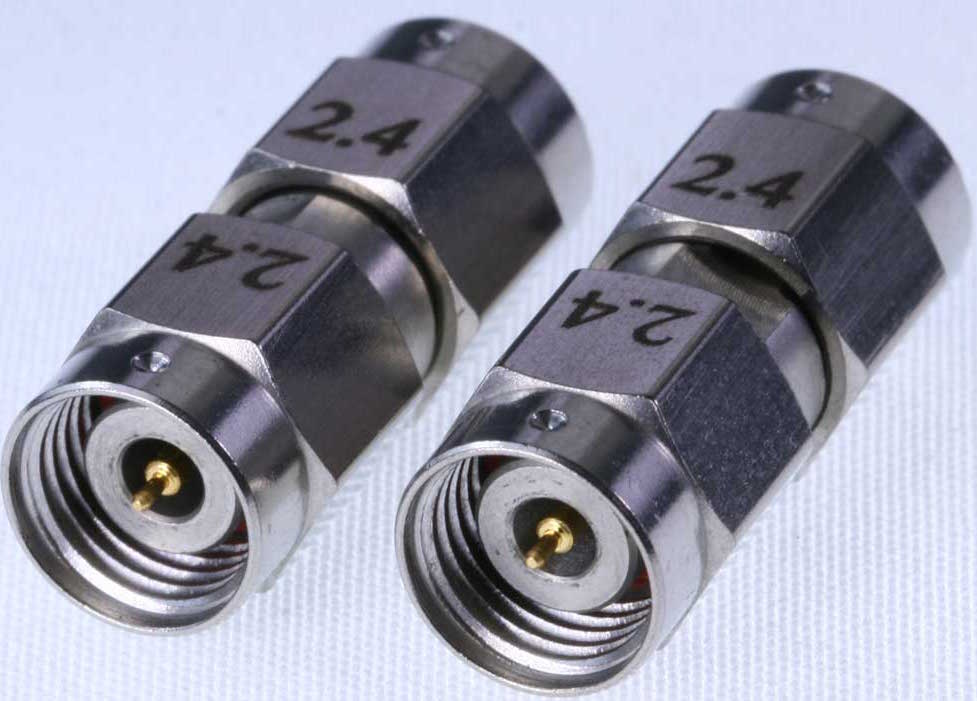

P1AD-24MM
2.4mm Male to 2.4mm Male Straight Adapter.
Operating to 50 GHz with max VSWR 1.30.
99.74 99.74 99.74000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 99.74
  • 10
    $ 88.89
P1AD-24M29F
RF Adapter, 2.4mm Male to 2.92mm Female, VSWR 1.25 max to 40 GHz
95.15 95.15 95.15 USD
Pricelist
Min. Qty
Price
  • 1
    $ 95.15
  • 10
    $ 79.95
Connector 1
2.4mm Male
Connector 2
2.92mm Female
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
40.0
Max VSWR
1.25:1

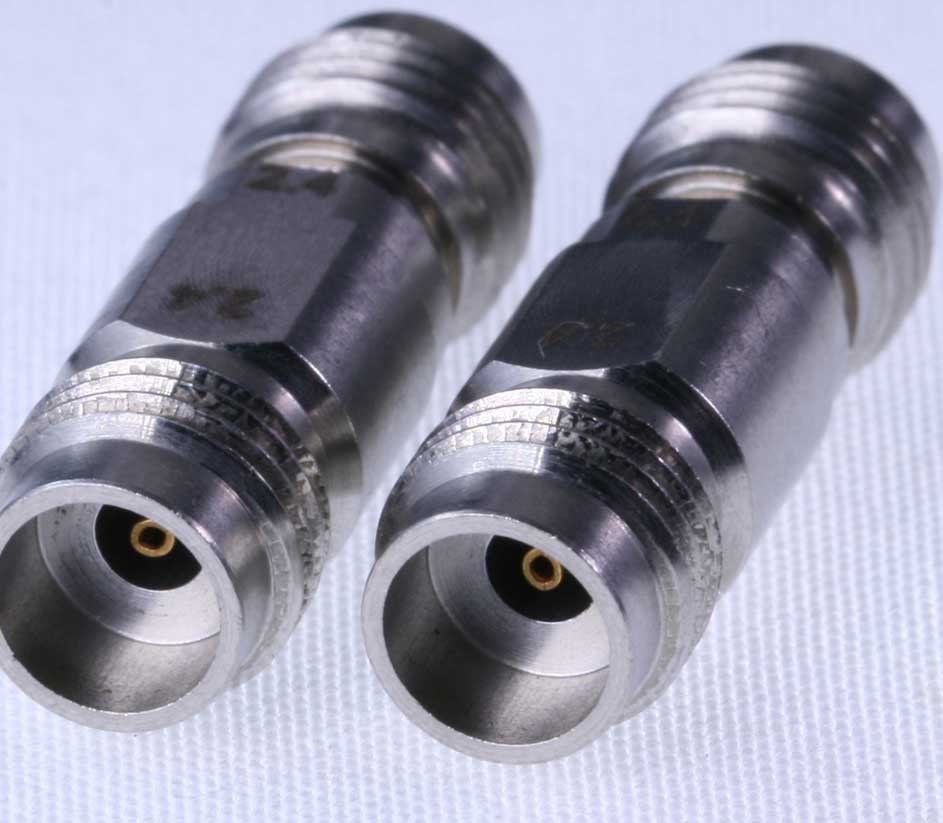

P1AD-24FF
2.4mm Female to 2.4mm Female Adapter.
Frequency DC to 50 GHz with a max VSWR of 1.30.
99.74 99.74 99.74000000000001 USD
Pricelist
Min. Qty
Price
  • 1
    $ 99.74
  • 10
    $ 88.89

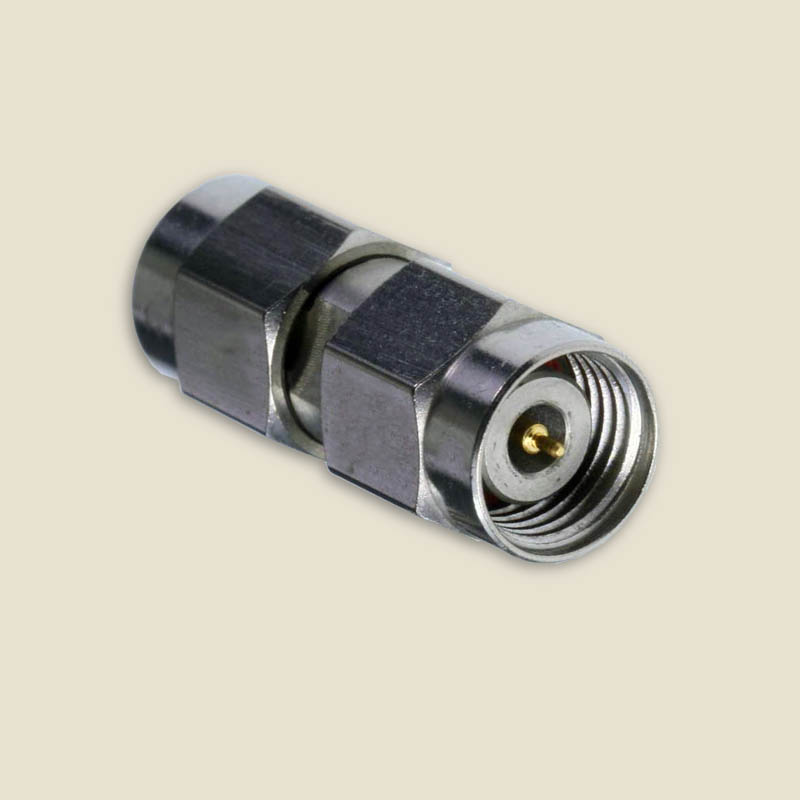

P1AD-18MM-65G
1.85mm Male to 1.85mm Male Straight Adapter.
Frequency DC to 65 GHz, max VSWR 1.25.
219.95 219.95 219.95000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 219.95
  • 10
    $ 207.56

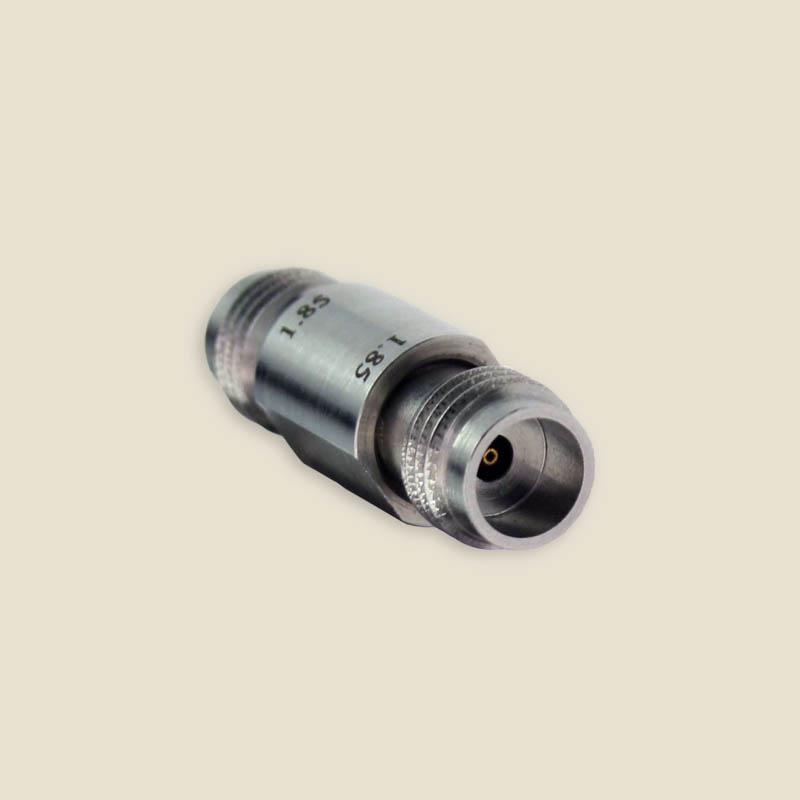

P1AD-18FF-65G
1.85mm Female to 1.85mm Female Straight Adapter.
Frequency DC to 65 GHz, maximum VSWR of 1.25.
219.95 219.95 219.95000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 219.95
  • 10
    $ 207.56
P1AD-24F35F
RF Adapter, 2.4mm Female to 3.5mm Female, VSWR 1.25 max to 35 GHz
189.95 189.95 189.95000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 189.95
  • 10
    $ 178.5
Connector 1
2.4mm Female
Connector 2
3.5mm Female
Length (in)
1.03
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
35.0
Max VSWR
1.2:1
P1AD-24M35F
RF Adapter, 2.4mm Male to 3.5mm Female, VSWR 1.25max to 35 GHz
189.95 189.95 189.95000000000002 USD
Pricelist
Min. Qty
Price
  • 1
    $ 189.95
  • 10
    $ 178.5
Connector 1
2.4mm Male
Connector 2
3.5mm Female
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
35.0
Max VSWR
1.25:1
P1AD-18F24M
RF Adapter, 1.85mm Female to 2.4mm Male, VSWR 1.25 max up to 50 GHz
204.79 204.79 204.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 204.79
Connector 1
1.85mm Female
Connector 2
2.4mm Male
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
50.0
Max VSWR
1.25:1
P1AD-18F24F
RF Adapter, 1.85mm Female to 2.4mm Female, VSWR 1.25 max up to 50 GHz
204.79 204.79 204.79 USD
Pricelist
Min. Qty
Price
  • 1
    $ 204.79
Connector 1
1.85mm Female
Connector 2
2.4mm Female
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
50.0
Max VSWR
1.25:1
P1AD-18M24F
RF Adapter, 1.85mm male to 2.4mm female, VSWR 1.3 max up to 50 GHz
199.26 199.26 199.26 USD
Pricelist
Min. Qty
Price
  • 1
    $ 199.26
Connector 1
1.85mm Male
Connector 2
2.4mm Female
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
50.0
Max VSWR
1.25:1

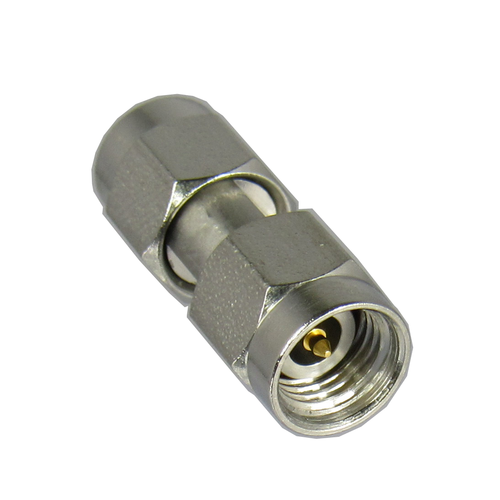

P1AD-29MM
RF Adapter, 2.92mm Male to 2.92mm Male, VSWR 1.25 max up to 40 GHz
46.95 46.95 46.95 USD
Pricelist
Min. Qty
Price
  • 1
    $ 46.95
  • 10
    $ 43.5

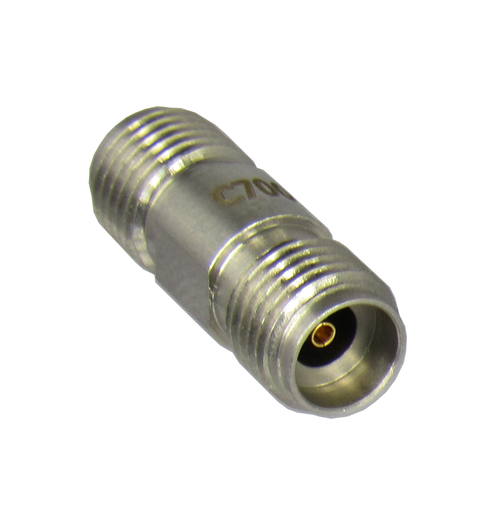

P1AD-29FF
RF Adapter, 2.92mm Female to 2.92mm Female, VSWR 1.25max, DC to 40 GHz
56.67 56.67 56.67 USD
Pricelist
Min. Qty
Price
  • 1
    $ 56.67
  • 10
    $ 48.57

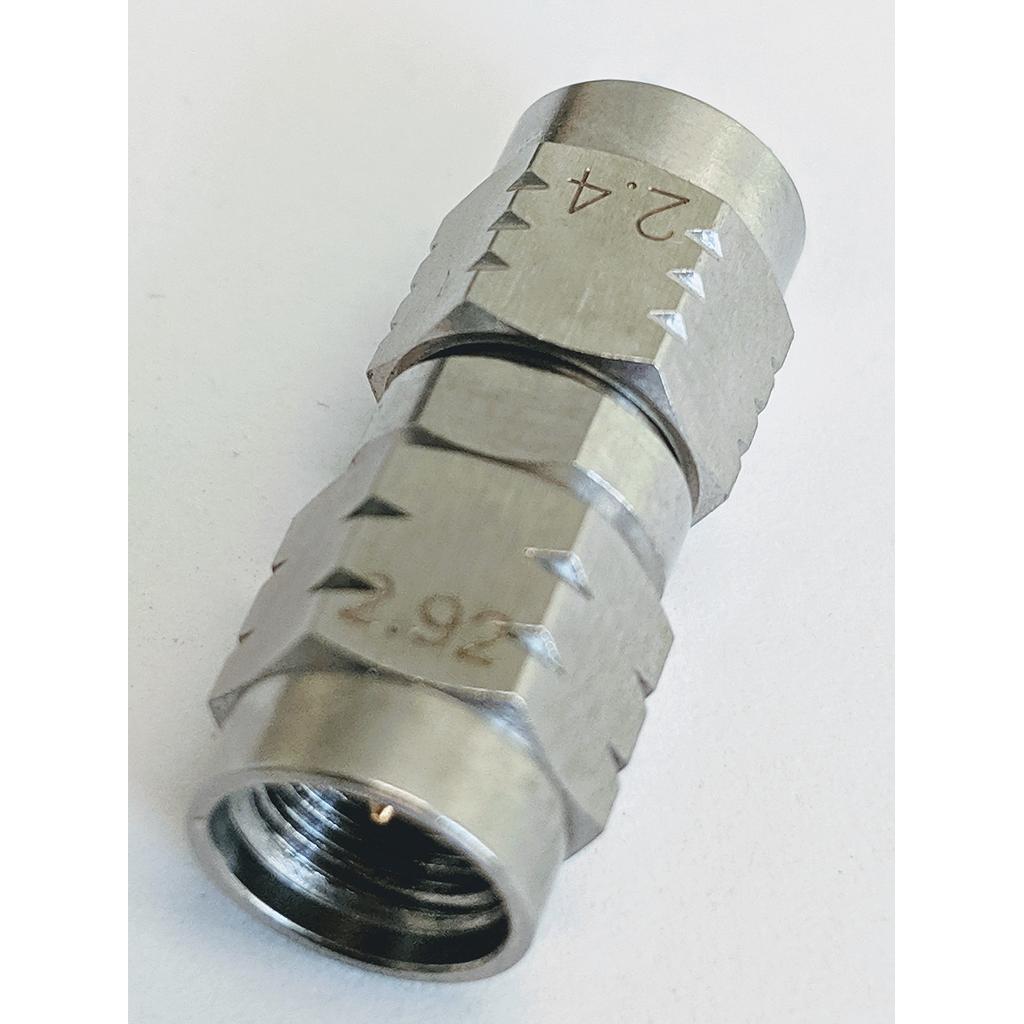

P1AD-24M29M
RF Adapter, 2.4mm Male to 2.92mm Male.
Frequency DC to 40 GHz with a max VSWR 1.25.
98.89 98.89 98.89 USD
Pricelist
Min. Qty
Price
  • 1
    $ 98.89
  • 10
    $ 94.44
Connector 1
2.4mm Male
Connector 2
2.92mm Male
Impedance
50.0
Frequency (GHz)
40.0
Max VSWR
1.25:1
P1AD-24F35M
RF Adapter, 2.4mm Female to 3.5mm Male, VSWR 1.25 max to 35 GHz
198.55 198.55 198.55 USD
Pricelist
Min. Qty
Price
  • 1
    $ 198.55
  • 10
    $ 163.03
Connector 1
2.4mm Female
Connector 2
3.5mm Male
Impedance
50.0
Frequency (GHz)
35.0
Max VSWR
1.25:1
P1AD-24F29F
RF Adapter, 2.4mm Female to 2.92mm Female, VSWR 1.25 max to 40 GHz
95.15 95.15 95.15 USD
Pricelist
Min. Qty
Price
  • 1
    $ 95.15
  • 10
    $ 89.45
Connector 1
2.4mm Female
Connector 2
2.92mm Female
Angle
Straight
Mount
None
Interface Type
Standard
Feature
None
Impedance
50.0
Frequency (GHz)
40.0
Max VSWR
1.25:1
