    P1CA-29M29M-SS085-12-PM-SET16

    P1CA-29M29M-SS085-12-PM-SET16

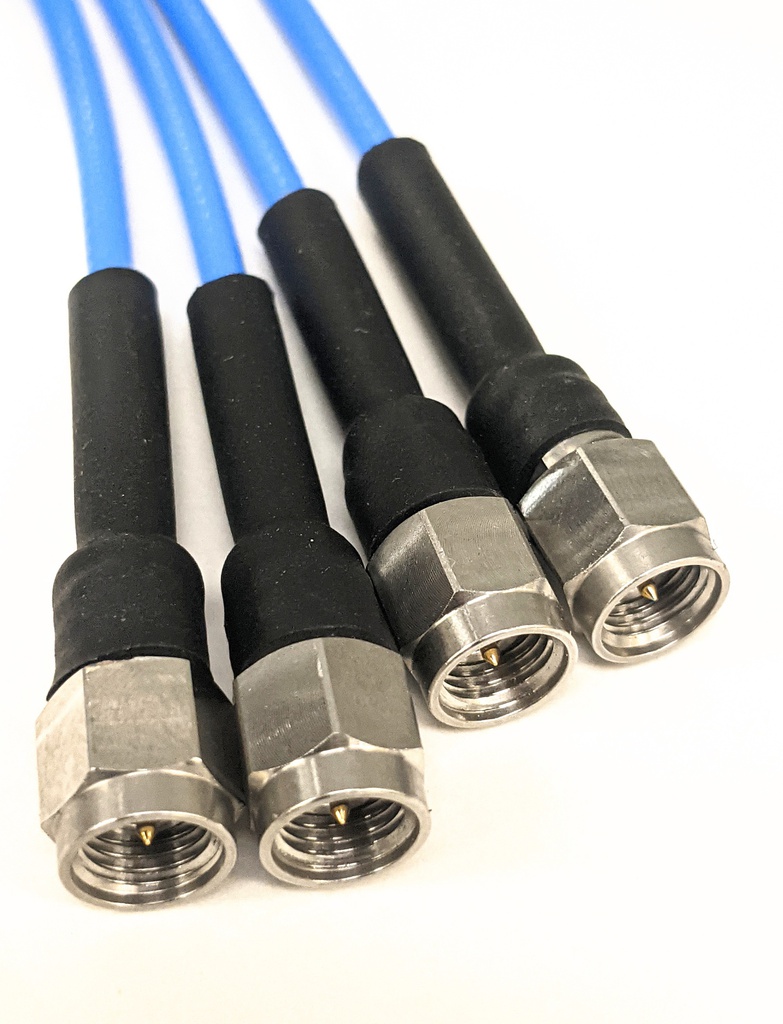

    Phase matched cable assemblies, 2.92mm male to 2.92mm male connectors.
    Length 12 inch. Phase matched within +/- 5 degrees DC to 20 GHz.
    Supplied as a set of 16 matched cables. Price is per cable.
    Test data supplied with each cable.

    $ 119.85 $ 119.85

    • Connector 1
    • Connector 2
    • Cable Type
    • Length (in)
    • Outer Diameter (in)
    • Max. Frequency (GHz)
    • VoP
    • ConnNut1
    • ConnBody1
    • ConnContact1
    • ConnNut2
    • ConnBody2
    • ConnContact2
    • InnerCond
    • Dielectric Material
    • Shield2
    • JacketMat
    • MinBend
    • OpTmpMin
    • OpTmpMax
    • Shield1
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: 2.92mm Male
    Connector 2: 2.92mm Male
    Cable Type: SS085
    Length (in): 12.0
    Outer Diameter (in): 0.104
    Max. Frequency (GHz): 20.0
    VoP: 70.0
    ConnNut1: Passivated Stainless Steel
    ConnBody1: Passivated Stainless Steel
    ConnContact1: Gold Plated Brass
    ConnNut2: Passivated Stainless Steel
    ConnBody2: Passivated Stainless Steel
    ConnContact2: Gold Plated Beryllium Copper
    InnerCond: SPC
    Dielectric Material: PTFE
    Shield2: SPC Braid
    JacketMat: FEP
    MinBend: 0.25
    OpTmpMin: -55.0
    OpTmpMax: 125.0
    Shield1: SPC Ribbon
