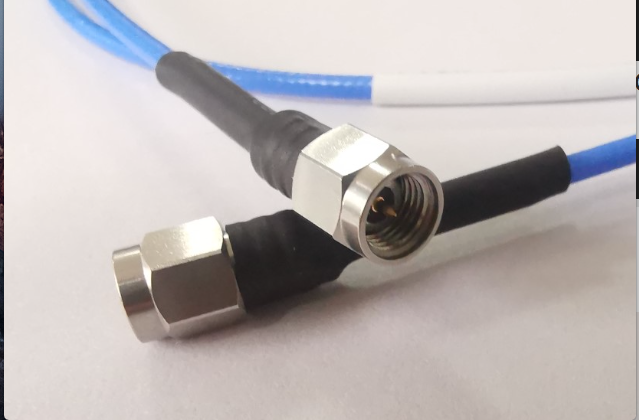

Connector 1:
2.92mm Male
|
|
Connector 2:
2.92mm Male
|
|
Cable Type:
SS085
|
|
Cable_Feature:
Phase Matched
|
|
Length (in):
24.0
|
|
Outer Diameter (in):
0.104
|
|
Max. Frequency (GHz):
40.0
|
|
Data.F1:
1.0
|
|
Data.F2:
18.0
|
|
Data.F3:
30.0
|
|
Data.F4:
40.0
|
|
VSWR1:
1.2
|
|
VSWR2:
1.25
|
|
VSWR3:
1.35
|
|
VSWR4:
1.45
|
|
IL1:
0.25
|
|
IL2:
1.1
|
|
IL3:
1.5
|
|
IL4:
1.9
|
|
VoP:
70.0
|
|
ConnNut1:
Passivated Stainless Steel
|
|
ConnBody1:
Passivated Stainless Steel
|
|
ConnContact1:
Gold Plated Brass
|
|
ConnNut2:
Passivated Stainless Steel
|
|
ConnBody2:
Passivated Stainless Steel
|
|
ConnContact2:
Gold Plated Beryllium Copper
|
|
InnerCond:
SPC
|
|
Dielectric Material:
PTFE
|
|
Shield2:
SPC Braid
|
|
JacketMat:
FEP
|
|
MinBend:
0.25
|
|
OpTmpMin:
-55.0
|
|
OpTmpMax:
125.0
|
|
Shield1:
SPC Ribbon
|
