    P1CA-SAFPT-047SR-10

    P1CA-SAFPT-047SR-10

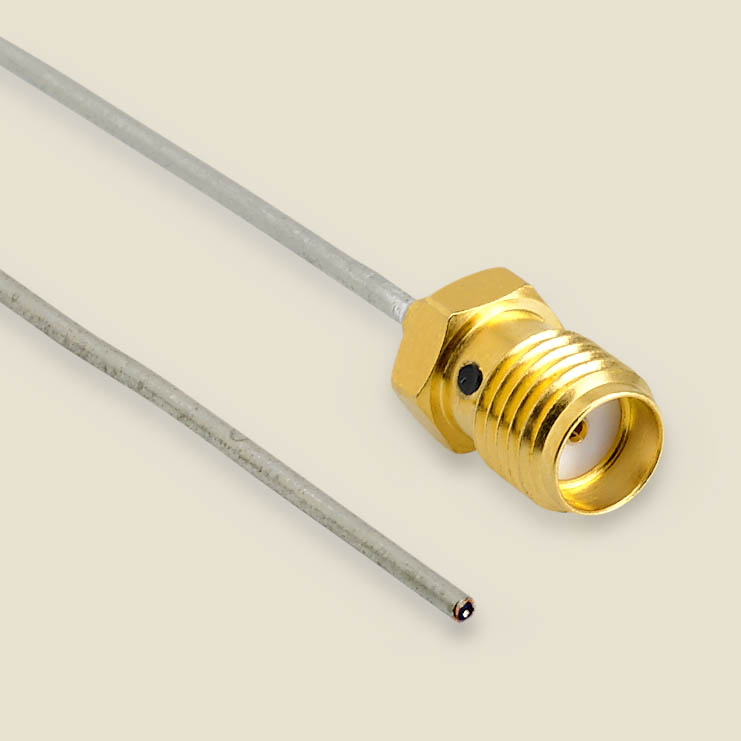

    SMA Female to Pigtail (no connector) cable assembly using .047 Semi-Rigid Coax, 10 inch

    $ 19.95 $ 19.95

    • Connector 1
    • Connector 2
    • Cable Type
    • Cable_Feature
    • Length (in)
    • Outer Diameter (in)
    • Max. Frequency (GHz)
    • Data.F1
    • Data.F2
    • Data.F3
    • IL1
    • IL2
    • IL3
    • VoP
    • ConnNut1
    • ConnBody1
    • ConnContact1
    • InnerCond
    • Dielectric Material
    • JacketMat
    • MinBend
    • OpTmpMin
    • OpTmpMax
    • Shield1
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: SMA Female
    Connector 2: Pigtail - No Connector
    Cable Type: 047SR
    Cable_Feature: Semi-Rigid
    Length (in): 10.0
    Outer Diameter (in): 0.047
    Max. Frequency (GHz): 6.0
    Data.F1: 1.0
    Data.F2: 3.0
    Data.F3: 5.0
    IL1: 0.34
    IL2: 0.58
    IL3: 0.79
    VoP: 70.0
    ConnNut1: None
    ConnBody1: Gold Plated Brass
    ConnContact1: Gold Plated Beryllium Copper
    InnerCond: SPCW
    Dielectric Material: PTFE
    JacketMat: None
    MinBend: 0.05
    OpTmpMin: -55.0
    OpTmpMax: 150.0
    Shield1: Tinned Copper
