    P1CA-SAFRABMXPRA-RG316-2.75

    P1CA-SAFRABMXPRA-RG316-2.75

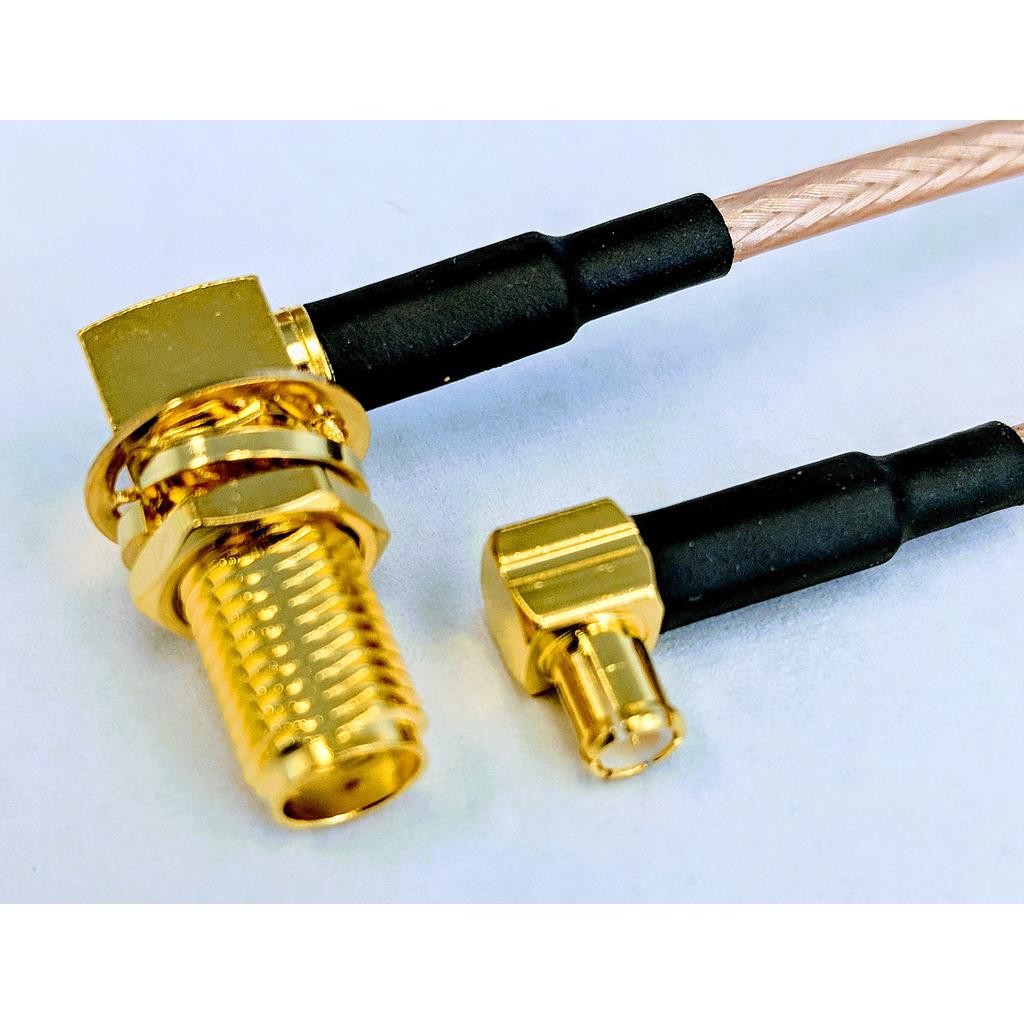

    Cable Assembly, SMA female right angle bulkhead to MCX plug right angle, flexible RG316 coax, 2.75 inch (connector end-to-end)

    $ 12.35 $ 12.35

    • Connector 1
    • Connector 2
    • Cable Type
    • Cable_Feature
    • Length (in)
    • Outer Diameter (in)
    • Max. Frequency (GHz)
    • ConnNut1
    • ConnBody1
    • ConnContact1
    • ConnNut2
    • ConnBody2
    • ConnContact2
    • InnerCond
    • Dielectric Material
    • JacketMat
    • MinBend
    • OpTmpMin
    • OpTmpMax
    • Shield1
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: SMA Female Bulkhead Right Angle
    Connector 2: MCX Plug Right Angle
    Cable Type: RG-316
    Cable_Feature: RG Type Flex
    Length (in): 2.75
    Outer Diameter (in): 0.098
    Max. Frequency (GHz): 3.0
    ConnNut1: Gold Plated Brass
    ConnBody1: Gold Plated Brass
    ConnContact1: Gold Plated Brass
    ConnNut2: Gold Plated Brass
    ConnBody2: Gold Plated Brass
    ConnContact2: Gold Plated Brass
    InnerCond: 7/.0067 SPCW
    Dielectric Material: PTFE
    JacketMat: FEP
    MinBend: 0.5
    OpTmpMin: -55.0
    OpTmpMax: 200.0
    Shield1: SPC Braid
