    P1CA-SAMSAM-SS141-72

    P1CA-SAMSAM-SS141-72

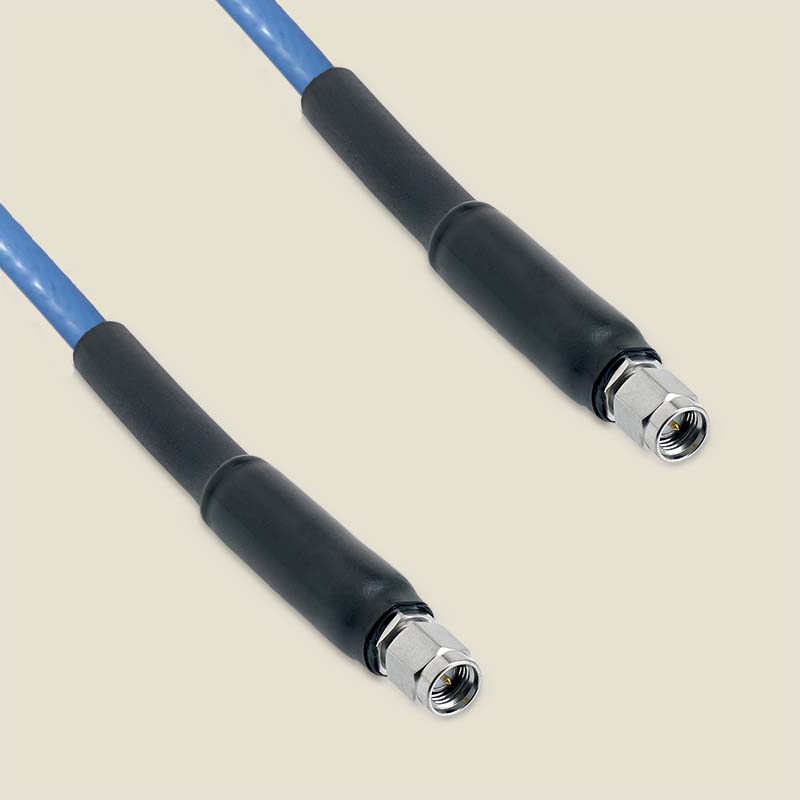

    SMA Male to SMA Male test cable using SS141 High Performance Coax, 72 inch.
    Frequency DC to 18 GHz.

    $ 79.95 $ 79.95

    • Connector 1
    • Connector 2
    • Cable Type
    • Length (in)
    • Outer Diameter (in)
    • Data.F1
    • Data.F2
    • Data.F3
    • VSWR1
    • VSWR2
    • VSWR3
    • IL1
    • IL2
    • IL3
    • VoP
    • InnerCond
    • Dielectric Material
    • JacketMat
    • MinBend
    • OpTmpMin
    • OpTmpMax
    Add to cart
    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days
    Contact Us
    Connector 1: SMA Male
    Connector 2: SMA Male
    Cable Type: SS141
    Length (in): 72.0
    Outer Diameter (in): 0.163
    Data.F1: 1.0
    Data.F2: 10.0
    Data.F3: 18.0
    VSWR1: 1.1
    VSWR2: 1.2
    VSWR3: 1.25
    IL1: 0.13
    IL2: 0.45
    IL3: 0.64
    VoP: 70.0
    InnerCond: SPC
    Dielectric Material: PTFE
    JacketMat: FEP
    MinBend: 0.8 inch
    OpTmpMin: -55.0
    OpTmpMax: 125.0
